• Model NO.：PE series
• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Coarse Crusher
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST, CCC
• Condition：New
• Color：Multi Color
• Name：Jaw Crusher Machine
• Installation：Under Engineers Guidence
• After Sale Service：Engineers Available to Serve Overseas
• Factory Visit：Welcome
• Power(Kw)：15
• Capacity(T/H)：5-20
• Total Weight(T)：2.8
• Trade Marke：Henan Hongke
• Rotation Speed(R/Min)：300
• Transport Package：Standard Export Package or as Clients Request
• Specification：Reference as the form
• Trademark：Henan Hongke
• Origin：Zhengzhou, Henan
• HS Code：84742090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. PE series Compressive Strength (For Crushing) >300MPA Crushing Degree Coarse Crusher Finished Surface Hole Process Certification CE, ISO, GOST, CCC Condition New Color Multi Color Name Jaw Crusher Machine Installation Under Engineers Guidence After Sale Service Engineers Available to Serve Overseas Factory Visit Welcome Power(Kw) 15 Capacity(T/H) 5-20 Total Weight(T) 2.8 Trade Marke Henan Hongke Rotation Speed(R/Min) 300 Transport Package Standard Export Package or as Clients Request Specification Reference as the form Trademark Henan Hongke Origin Zhengzhou, Henan HS Code 84742090 Production Capacity 150 Sets/Month

Product Description

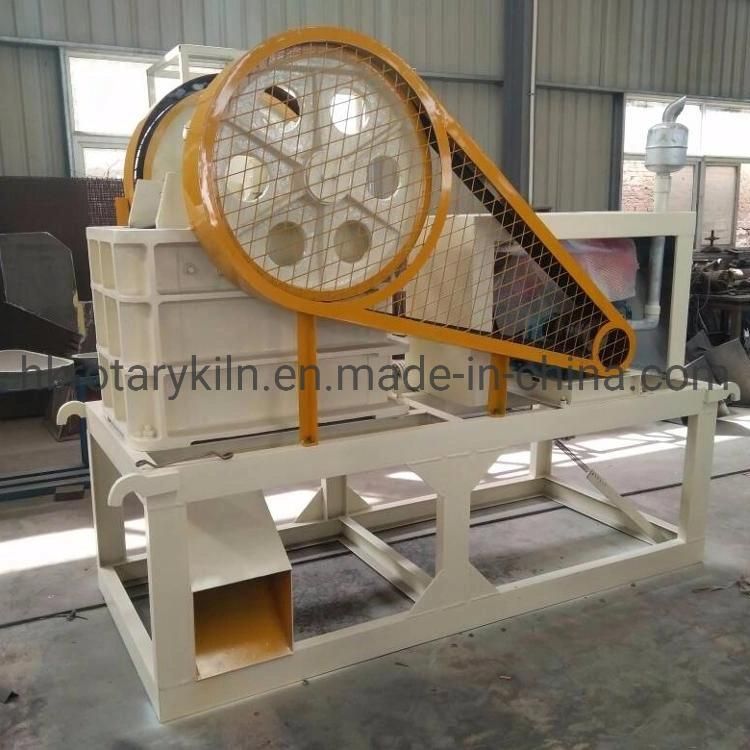

Product Introduction:

Processing capacity:1-2200t/h Feed opening:150×250-300×1300mm Feeding size:125-250mm Applied material:limestone, fly ash, coal powder, slag, clay.
Handling Materials and Application of Jaw Crusher

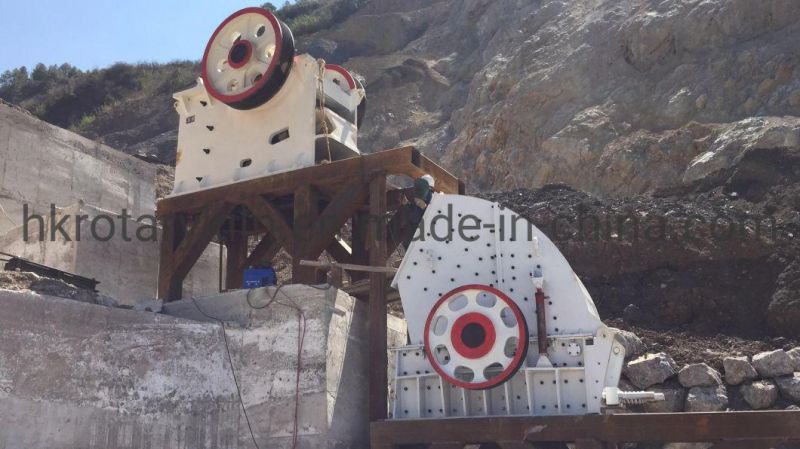

Jaw crusher is mainly used for the medium-granularity crushing of all kinds of ores and large materials, which has extensive application in industries of mine, metallurgy, building material, highway, railway, water conservancy and chemistry. The maximum compression strength of the materials to be crushed is 320MPa.

Advantages and Benefits of Jaw Crusher

Jaw crusher is a crushing machine that is researched and developed at the early time with simple and solid structure, reliable work, easy maintenance and repair and low production and construction fees. It has long been widely used for the coarse, medium and fine crushing of various ores and rocks with compression strength of 147~245MPa in many industries such as metallurgy, chemistry, building material, power plant and transportation.
Features of Jaw Crusher

1. World-level manufacturing technology is adopted, and high-end manufacturing material is used.

2. More advanced movable jaw assembly makes it more durable. The movable jaw assembly adopts high-quality steel casting, which is driven by two large-sized cast steel flywheels. In addition, the heavy eccentric shaft also adopts forging stock to ensure that JC series jaw crusher has extraordinary reliability.

3. Unitary cast steel structure is adopted by bearing pedestal. The unitary cast steel bearing pedestal makes it comprehensive fit with the crusher rack, which can greatly increase the radial strength of the bearing pedestal while split type bearing pedestal does not have these advantage

4. The strength of jaw crusher is relative high by using finite element analysis technology.

5. The crushing chamber adopts symmetrical V-shaped structure to ensure that the actual width of the feeding mouth is in line with the nominal width of the feeding mouth.

6. The adjustment of the discharging mouth is quicker and more convenient. European type JC series jaw crusher is equipped with wedge discharging mouth adjustment device so that the adjustment of the discharging mouth is simpler, safer and quicker than that of traditional gasket adjustment.

7. The selected bearing has bigger specifications and higher carrying capacity. All the JC series jaw crushers are equipped with eccentric shaft bearing bigger and more durable than the crushers with the same specifications. The bearing greatly extends its service life with high carrying capacity and effective labyrinth sealing.

8. The latest tooth back plate is adopted to increase effective length of the jaw plate and output of jaw crusher.

Working principle of Jaw Crusher

The crashing method of this crushing machine is dynamic extrusion. Its working principle is as follows: the electro motor drives the belt and belt wheel to make the movable jaw to move up and down through the eccentric shaft. When movable jaw goes up, the angle between the toggle pate and the movable jaw will be bigger so as to push the movable jaw to move toward the fixed jaw. The materials are crushed or smashed for realization of crushing at the same time. When the movable jaw goes down, the angle between the toggle pate and the movable jaw will be smaller, and the movable jaw will move away from the fixed jaw under the effect of the draw bar and the spring, and then the crushed materials will be discharged out from the lower mouth of the crushing chamber. With the continuous rotation of the electro motor, the movable jaw of the crusher will be crushed and discharged periodically motion to realize the purpose of mass production.

Technical Data:

Model	Feed opening  (mm)	Max.feeding size  (mm)	Adjusting range of discharge opening  (mm)	Processing capacity  (t/h)	Rotation speed of eccentric shaft  (r/min)	Motor power  (kw)	Total weight  (t)	Dimensions (L×W×H) (mm)
PE-150×250	150×250	125	10-40	1-3	250	5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	55	15.8	2070×2000×1920
PE-600×900	600×900	500	65-160	50-180	250	55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	110	29	2660×2430×2800
PE-800×1060	800×1060	640	130-190	130-330	250	110	29.8	2710×2430×2800
PE-830×1060	830×1060	650	160-220	150-336	250	110	30.7	2740×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-450	200	110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-350	400-800	180	160-220	100.9	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	280-355	122	5160×3660×4248
PE-1600×2100	1600×2100	1500	300-400	1300-2200	160	350-380	150.6	6210×4013×4716
PEX-150×750	150×750	120	18-48	8-25	320	15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	30	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	55	15.6	2720×1950×1600
