3D CNC Router Marble Granite Stone Engraving Machine

Linyi Chaoda International CNC Technology Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：Life Time Technical Service
  • Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
  • Application Material：Granite
  • Automation：Automatic
  • Control：CNC

Base Info

  • Model NO.：JCS1530
  • Motor Power：High Power
  • Engraving Head Speed Adjustability：Wide Adjustable Range
  • Certification：CE
  • Current：AC
  • Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
  • Customized：Customized
  • Machine Name：CNC Router, Carving Machine, Engraver Machinery
  • Series：4 Axis
  • Applications：Artificial Stone, Sculpture, Statues, Molulds
  • Materials：Stone, Glass, Wood, Foam, Aluminum, PVC, Acrylic
  • Milling Mode：Flat
  • Flat Working Size：1500mm(X)*3000mm(Y)*1000mm(Z)*180degree
  • Option：Saw Blade; Rotary Attachment
  • Title：3D CNC Router Marble Granite Stone
  • Transport Package：Wooden Case with Steel Frame Surport
  • Specification：3d cnc
  • Trademark：CHAODA
  • Origin：Linyi, China
  • HS Code：8465990000
  • Production Capacity：300sets Per Month

Description

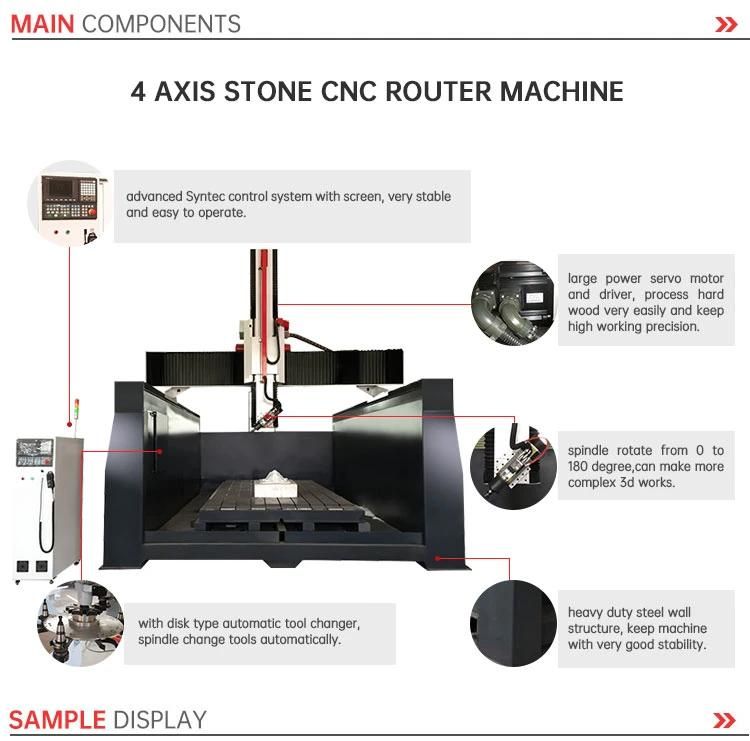

Series4-axis cncModelJCS1530HLX,Y,Z Working Size1500*3000*1000mm*180degreeLathe Bed StructureSemi-closed heavy duty gantry wall structure with water tankTable SurfaceT-slot with thick PVC sheet and clampsX StructureRack and pinion, HIWIN linear square railY StructureRack and pinion, HIWIN linear square rail, double driverZ StructureBall screw, HIWIN linear square railMax. Moving Speed0-60000mm/minMax. Working Speed0-30000mm/minSpindle11kw ATC spindle with waterSpindle Rotation Speed0-24000RPMWorking ModeJapan YASKAWA servo motor and driverATC SystemLinear type, 8-12 tool magazineWorking Voltage3 phase AC380V 50HZ/60Hz or requestCommand CodeG code(*uoo,*nc,*mmg, *plt)Operating System4 axis Ncstudio (WEIHONG) controllerRunning CircumustanceTemperature: 0°C~45°C; relative humidity: 30%~75%
