• Model NO.：PCL crusher machine
• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Fine Grinding Machine
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST, CCC
• Condition：New
• Color：Multi-Color
• Name：Impact Crusher Machine
• After-Sale Service：Engineers Available to Serve Overseas
• Delivery Detailed：Within 10 Daya After The Pre-Payment
• Price：Negotiable
• Total Weight(T)：5.6-26
• Power(Kw)：2*(30-185)
• Overall Dimension (mm)：Reference as The Form
• Transport Package：Standard Export Package
• Specification：Reference as the form
• Trademark：Henan Hongke
• Origin：Zhengzhou, Henan
• HS Code：84742090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. PCL crusher machine Compressive Strength (For Crushing) >300MPA Crushing Degree Fine Grinding Machine Finished Surface Hole Process Certification CE, ISO, GOST, CCC Condition New Color Multi-Color Name Impact Crusher Machine After-Sale Service Engineers Available to Serve Overseas Delivery Detailed Within 10 Daya After The Pre-Payment Price Negotiable Total Weight(T) 5.6-26 Power(Kw) 2*(30-185) Overall Dimension (mm) Reference as The Form Transport Package Standard Export Package Specification Reference as the form Trademark Henan Hongke Origin Zhengzhou, Henan HS Code 84742090 Production Capacity 150 Sets/Month

Product Description

Product Introduction:
Type: PCL series
Power: 2*(30-132)
Delivery Detailed: within 10 days after the pre-payment.
Brief Introduction:

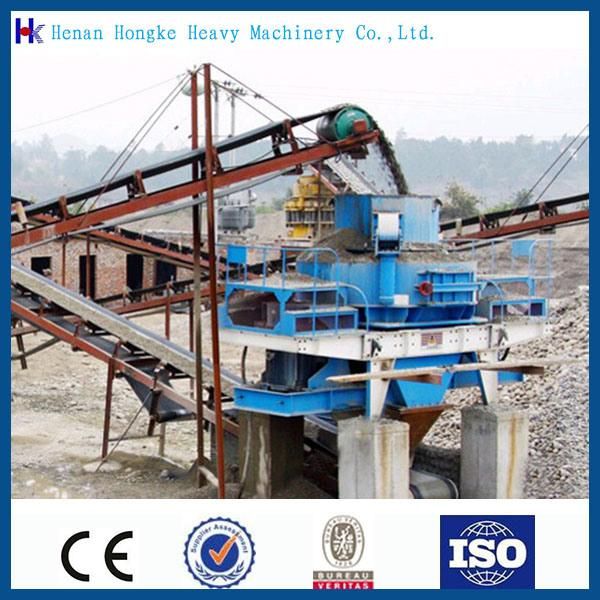

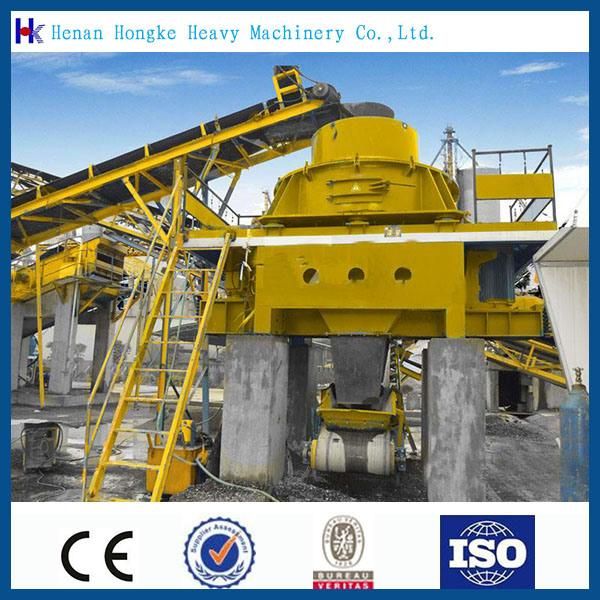

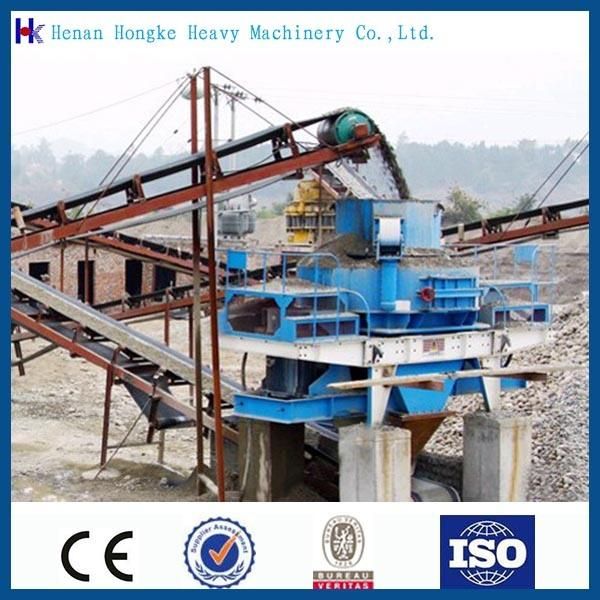

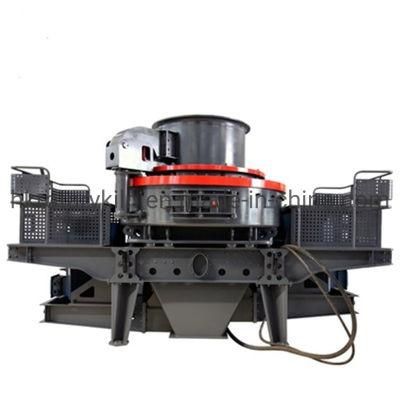

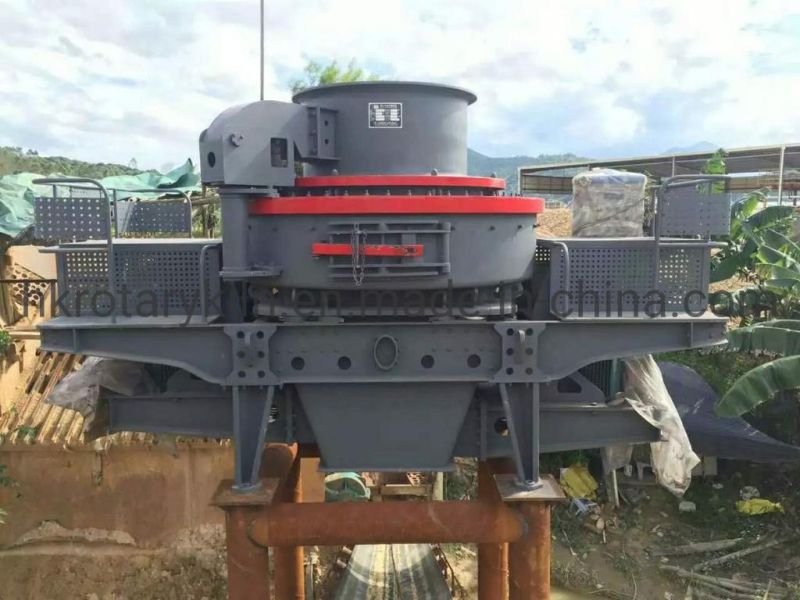

PCL Vertical Impact Crusher is one kind of sand making machine with high productivity and low cost. It is performance plays an irreplaceable role in crushing kinds of ore and it is the most effective and reliable rock machine. Since 2001, PCL achieved most of the domestic market share. Perfect performance wins most customers' trust home and abroad. This product is widely used in variety of ores, cement, refractory, bauxite, glass raw materials, construction, stone and a variety of metallurgical slag and other industries.
Features:
1. Simple Structure, low running cost.
2. High crushing ratio, energy saving and environmental protection.
3. Fine crushing and coarse grinding. Low wearing of the impeller liner and easy to maintain.
4. The moisture of the material can up to 8%.
5. It is suitable to crush the hard and medium hard material.
6. The Cubic final product. High packing density and minimal contamination of the iron.
7. Work noise is below 75 decibels. Little dust pollution.
Working Principle:

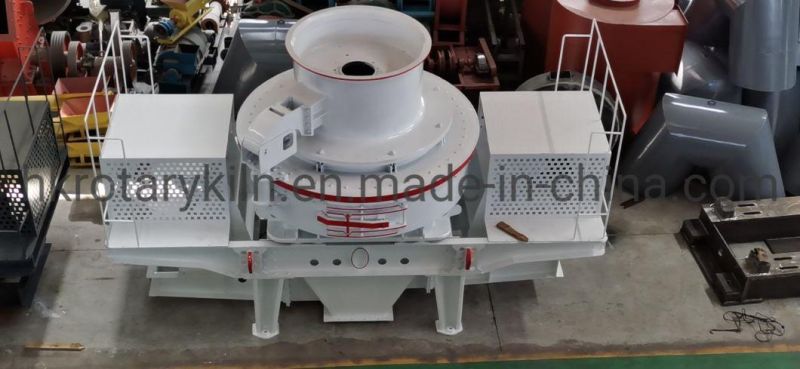

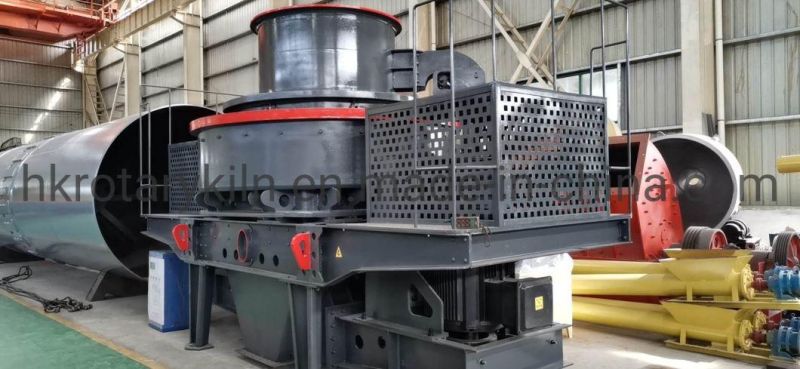

The Whole PCL vertical shaft impact crusher including feed hopper, classifier, whirl pool cacity, impeller, main bearing assembly base, transmission device and motor etc.
Operating principle is as follows: The materials enter the crusher through feeder hopper, which is divided into two parts, one part through the middle of classifier entering into the rotating impeller at high speed, then accelerated, whose speed can reach hundreds of acceleration, then is shot through the tunnels around the impeller by the speed of 60-75 meter/second. First the materials will impact with some materials fallen around classifier, then impact on the whirlpool cavity's scaleboard together, then will be rebounded and impact on the top of the whirlpool cavity, then changes its direction and goes down, forms continual material layers with the materials shot from the impeller.
Therefore some materials will be impacted, crusher, milled twice or more times in the whirlpool cavity, then crushed materials will be excluded through the bottom discharging hole. This can from a closed circulation through the circular classifier system; In general, materials can be crushed into 20 mesh through thrice circulation. Airflow self-circulation in the whirlpool cavity can eliminate the dust pollution well.
Technical Data:

Model	Impeller Speed (rpm)	Max. Feeding size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall Dimension (mm)
PCL-600	2000-2600	30	12-30	2×30	5.6	2800×1500×2030
PCL-750	1500-2500	35	25-55	2×45	7.3	3300×1800×2440
PCL-900	1300-1700	40	50-80	2×55	12.1	3750×2120×2660
PCL-1050	1100-1450	45	70-120	2×110	16.5	4480×2450×2906
PCL-1250	950-1200	45	80-160	2×132	22	4563×2650×3176
PCL-1350	800-1200	50	120-220	2×160	26	5340×2940×3650
