• Model NO.：DT1325-1
• Certification：SGS
• Current：AC
• Application：Stela & Gravestone, Stone Industry
• Customized：Customized
• Guide Rail：PMI 20 (Imported)
• Screw：PMI 2510 (Imported)
• Running Mode：Servo (Optional Yaskawa Servo)
• Driver：Estun (Optional Yaskawa Servo)
• Control Systerm：Nc Studio (Genuine)
• Table：T-Slots
• Oil Lubrication System：Yes
• Water Channel：Stainless Steel
• Transport Package：Plywood Case
• Specification：DT1325-1
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. DT1325-1 Certification SGS Current AC Application Stela & Gravestone, Stone Industry Customized Customized Guide Rail PMI 20 (Imported) Screw PMI 2510 (Imported) Running Mode Servo (Optional Yaskawa Servo) Driver Estun (Optional Yaskawa Servo) Control Systerm Nc Studio (Genuine) Table T-Slots Oil Lubrication System Yes Water Channel Stainless Steel Transport Package Plywood Case Specification DT1325-1 Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 100 Sets Per Month

Product Description

WOODWORKING, PLASTIC, ARYLIC, STONE, SOFTWARE CARVING & CUTTING
GENUINE NC STUDIO
SERVO MOTOR

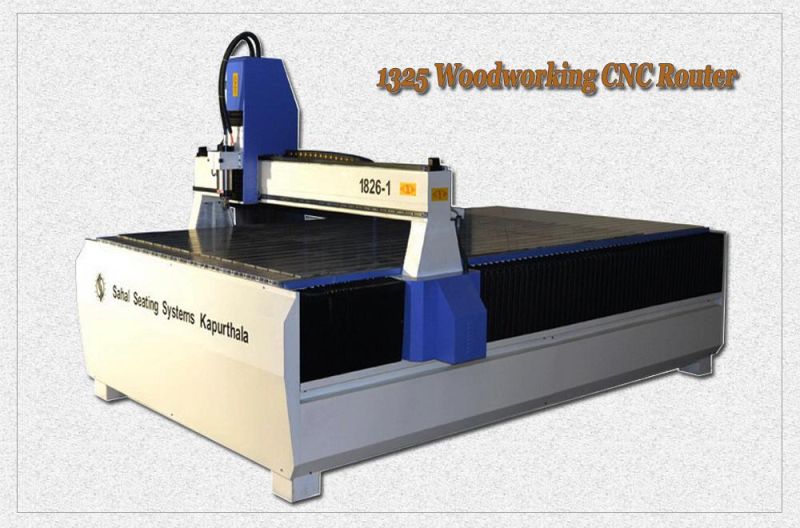

1325  CNC ROUTER
From Chinese Professional Factory




Modle: DT1325-1
Machine size: 3300x2000x1800mm
Packing size: 3400x2100x1950mm
Working area: 1300mm×2500mm
Total power: 4KW
N.W.: 1400Kg



Transmission	X/Y: Rack;  Z:Screw
Screw No.	PMI2510
Guild rail	PMI 20
Driving mode	Servo
Driver	Estun
Motor	Estun
Motor power	1000W
Working voltage	220V-380V

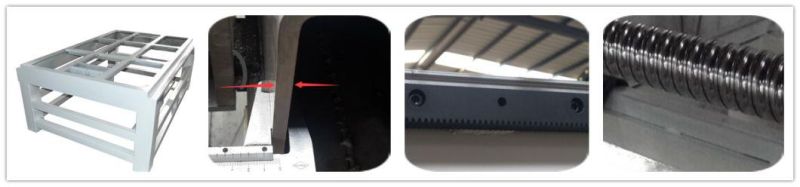

Gantry	10MM welded structure
Table	T-slot
Operation system	NC Studio 53C (Genuine)

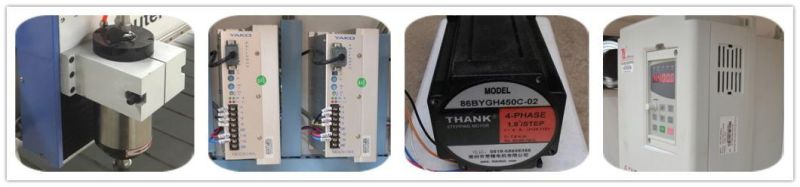

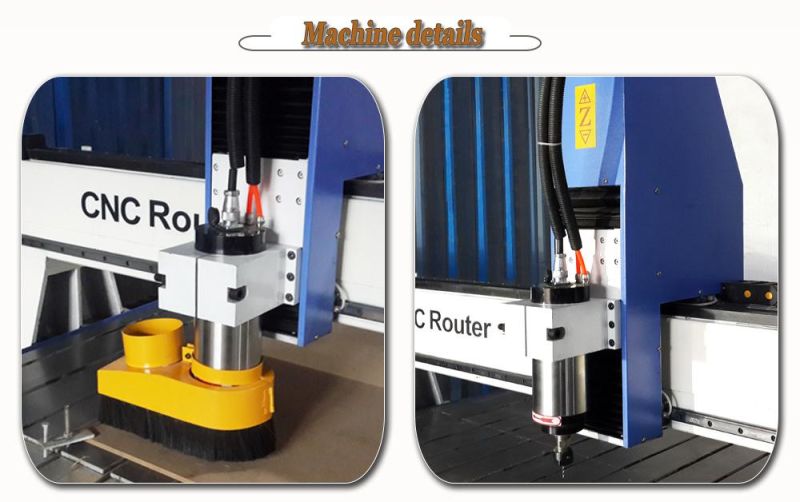

Spindle	3KW, Water-cooling,

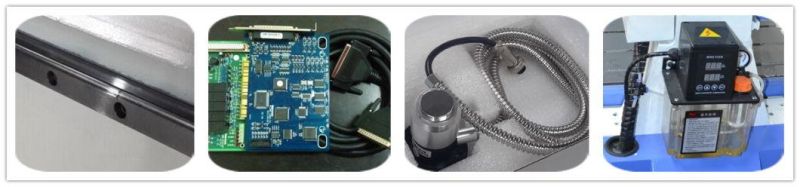

Lubrication	Auto
Dust proof	Y axis

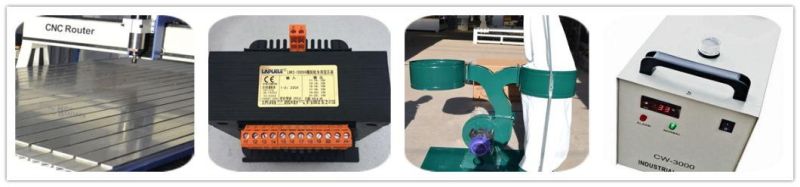

Chiller	CW3000
Water channel	Stainless steel



NO	Index	Index	Parameter
1	Traveling	X axis	1300mm
		Y axis	2500mm
		Z axis	180mm
2	Table size	T-slot	1500x3300mm
3	Accuracy	Working accuracy	0.02mm
		Reposition accuracy	0.02mm
4	Transmission	X axis	Rack
		Y axis	Rack
		Z axis	Screw
5	Speed	Max Rapid	30000mm/min
		Max working speed	20000mm/min
6	Spindle	Spindle power	3kw
	(Water-cooling)	Spindle speed	0-24000r/min
7	Drive mode		Servo
8	Working voltage		AC220V/50HZ
9	Command language		G Code
10	Operation system		NC Studio 53C (Genuine)

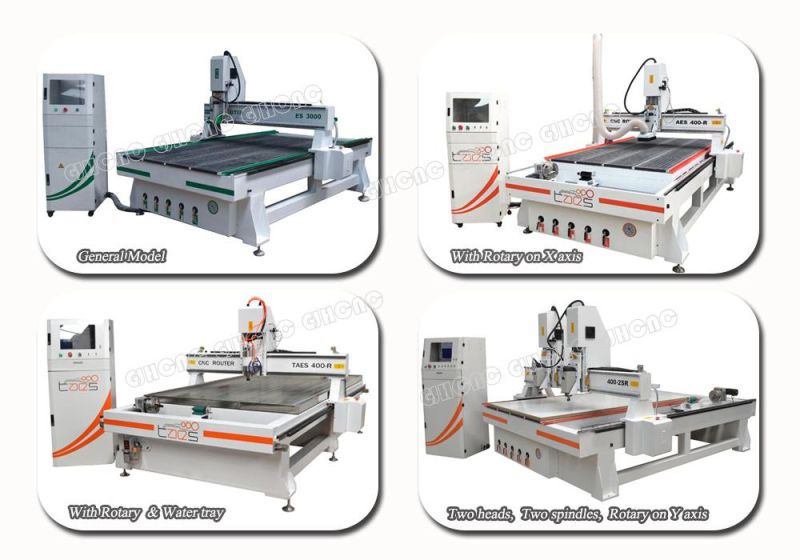

If  you have specific requirement  for Other CNC woodworking engraving machine, customized is available.

Sincerely Waiting For Your Any Inquiry, And Trust That We Can Provide You Professional Suggestions

Guarantee & After-sale service1.One year warranty under normal use and we supply lifelong maintenance.2.24 hours technical support by Phone, Email, Skype, Msn, or romote.3.Free training to make sure you master the operation of the cnc router.OEM Service Available1.Usually, we will manufacturer the machine as our regular design.2.X Y Z Working Area could be custmer-oriented designing.3.Special configuration could be customer-oriented designing.
