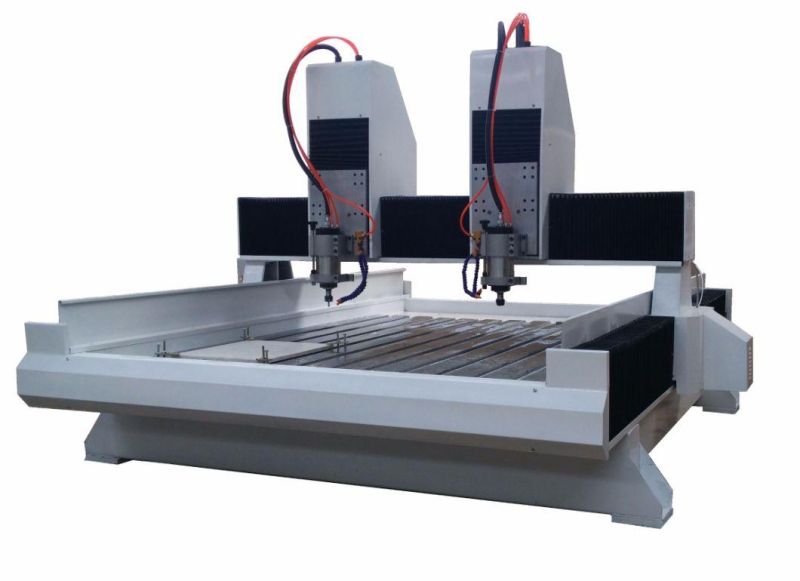

1325 Heavy Duty Marble Stone CNC Router Machine, Carving Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- Function：Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Marble
- Automation：Automatic
- Control：CNC
- Motor Power：High Power
- Certification：CE
Base Info
- Model NO.：1325
- Current：AC
- Application：Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Guild Rail：Hiwin Square Rail
- Ball Screw：PMI, Taiwan
- Drive Mode：Stepper
- Control System：Nc Studio, Shanghai
- Invertor：Fuling
- Transport Package：Standard Exported Plywood Case
- Specification：CE
- Trademark：dongtong
- Origin：Shandong China
- HS Code：84609090
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. 1325 Current AC Application Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Drive Mode Stepper Control System Nc Studio, Shanghai Invertor Fuling Transport Package Standard Exported Plywood Case Specification CE Trademark dongtong Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per MonthProduct Description
Marble. stone cnc router carving machine from professional cnc router manufacturer.
1. Advanced NC studio system which have memory of breakpoint can guarantee resumption of
processing in case of Incident (breaking) or of work of the previous day.

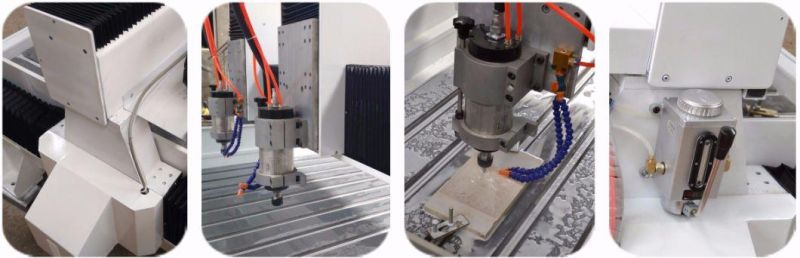

2. I mported linear square rails and ball screws, double big slider,
3. High power spindle motor, strong and accurate cutting, high efficiency.
Application
Granite, marble, bluestone, sandstone, glass and stone carving etc.
| NO | Performance index | Performance index | Parameter |
| 1 | Working area | X axis | 1300mm |
| Y axis | 2500mm | ||
| Z axis | 300mm | ||
| 2 | Table size | 1300mm*2500mm | |
| 3 | Accuracy | Working precision | 0.05mm |
| Repositioning precision | 0.05mm | ||
| 4 | Drive mode | X axis | Helical rack and pinion |
| Y axis | Helical rack and pinion | ||
| Z axis | Ball screws | ||
| 5 | Speed | Max traverse speed | 30000mm/min |
| Max engraving speed | 12000mm/min | ||
| 6 | Spindle (water-cooling) | Spindle power | 4.5KW |
| Spindle speed | 0_24000r/min | ||
| 7 | Working mode | Stepper | |
| 8 | Operating voltage | AC220V/50HZ | |
| 9 | Command code | G code | |
| 10 | Operating system | NC Studio | |
| 11 | Net weight | 2500KG |

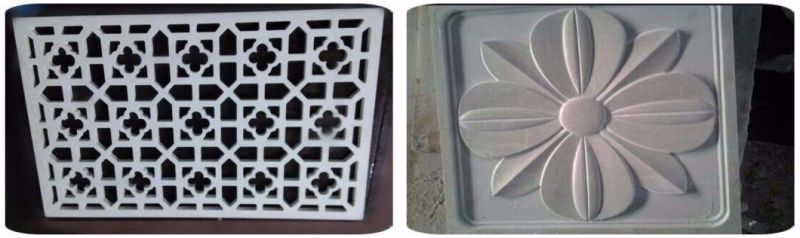

Stone products made by our machine
Technical support
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel and lifetime technical support
If you have specific requirement for heavy duty stone cnc router machine, customization is available.
