Economic Stone Block Saw Cutting Machine
Fujian Wanlong Diamond Tool Co., Ltd.- Type：Multiblade Block Cutting Machine
- Usage：Ceramics, Glass, Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble, Sandstone&Limestone
- Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Granite Cutting
- Source Voltage：380V&480V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：QSQ-2200
- Control：Control Panel
- Certification：ISO, CE, SGS
- Transport Package：Container
- Trademark：Wanlong
- Origin：China
- HS Code：8464101000
- Production Capacity：30sets,Month
Description
Technical ParamatersModel QSQ-2200B QSQ-2500B QSQ-3000B Max.blade diameter mm φ2200mm φ2500mm φ3300mm Max.No of Blade pc 9 5 1 Recommended Blade combination mm φ2200, φ2000,φ1800,φ1600,φ1400,φ1200,φ1000,φ800,φ600, φ2500, φ2000,φ1600,
φ1200,φ800, φ3000 Main Motor Power KW 45/55KW 45/55KW 37/65KW Max. cutting size mm 3600x2100x950 3300(3800)x2100x1100 2800(3800)x2100x1350 Overall Dimension mm 7500x4000x5500 7500(8000)x4000x5500 7500(8000)x4000x6100 Water Consumption m3/h 30 30 20 Approximate Weight kg 12000 12000(13000) 12000(14000)

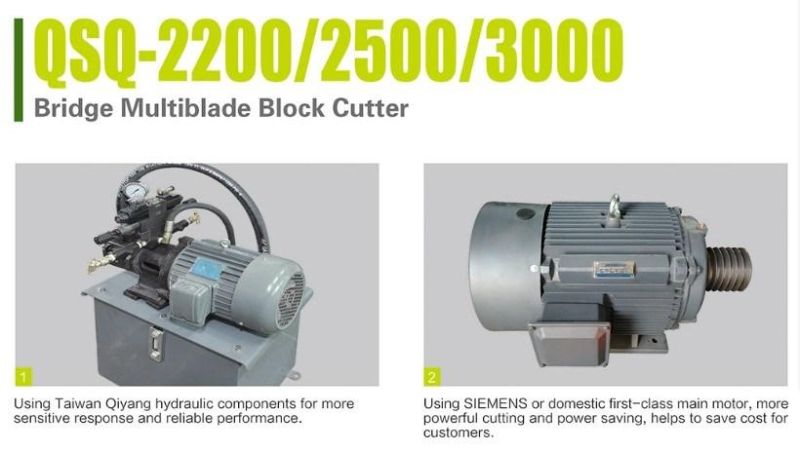

Name: Main Motor
Brand: Siemens
Original: Germany
Using Siemens or Domestic first class main motor, more powerful cutting and power saving, helps to save cost for customers

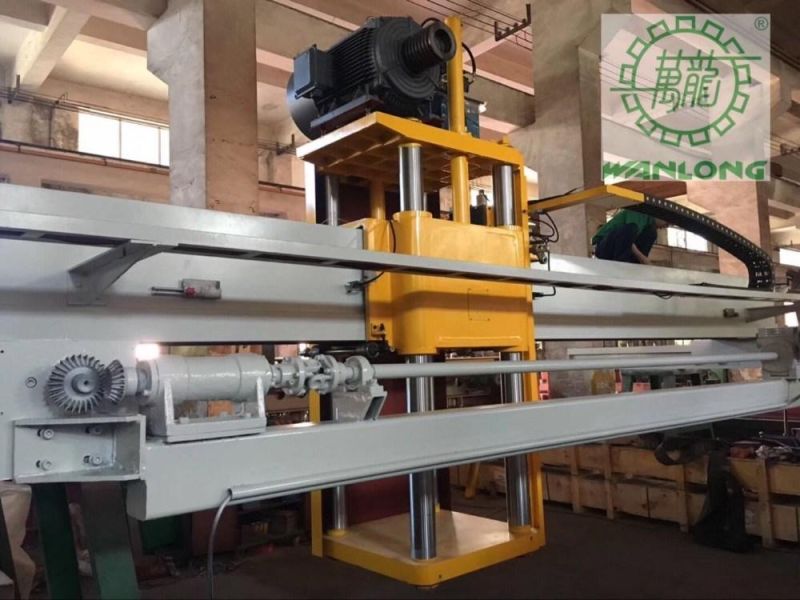

Name: Hydraulic lifting System
Brand: China
Original: China
Adopts pillar type hydrualic lifting system with 4 pillars for up and donw movement. Chromed guide pillars and wearable guide bush leads smaller gap and elegant apperance. Moveover, multi layer sealings inside the bush gives good water, dust and oil leak resistance, improves service lift

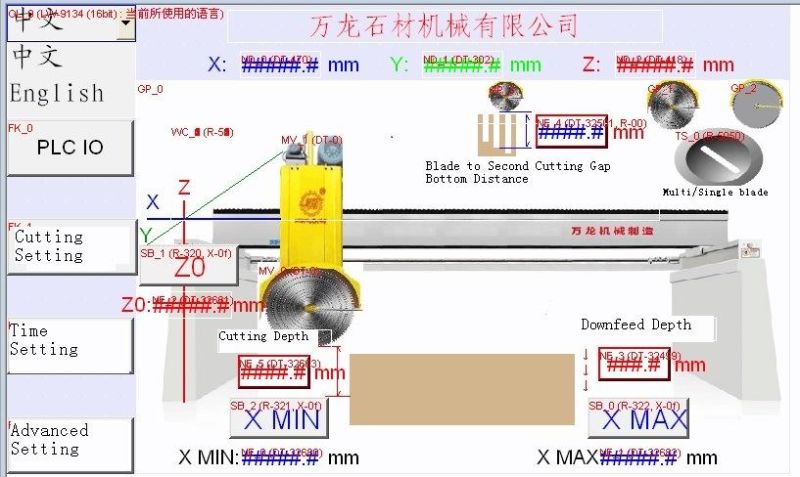

Name: Touch Screen
Brand: Chinese
Original: China
Touch Screen and easier for operation

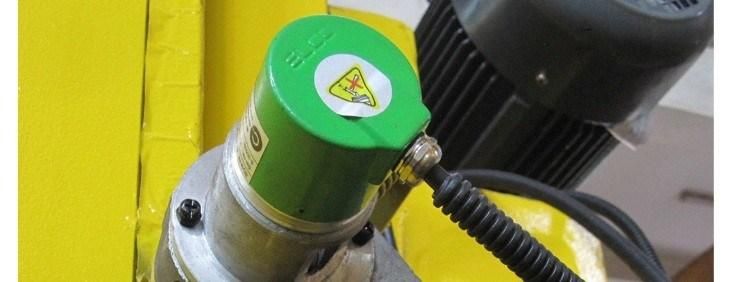

Name: Encoder
Brand: Chinese
Original: China
Using encoders for X,Y,Z movement to ensure high position and reduce the labor intnsity
φ1200,φ800,
Machine Parts
Name: Main Motor
Brand: Siemens
Original: Germany
Using Siemens or Domestic first class main motor, more powerful cutting and power saving, helps to save cost for customers
Main Features
Name: Hydraulic lifting System
Brand: China
Original: China
Adopts pillar type hydrualic lifting system with 4 pillars for up and donw movement. Chromed guide pillars and wearable guide bush leads smaller gap and elegant apperance. Moveover, multi layer sealings inside the bush gives good water, dust and oil leak resistance, improves service lift
Machine Parts
Name: Touch Screen
Brand: Chinese
Original: China
Touch Screen and easier for operation
Main Features
Name: Encoder
Brand: Chinese
Original: China
Using encoders for X,Y,Z movement to ensure high position and reduce the labor intnsity

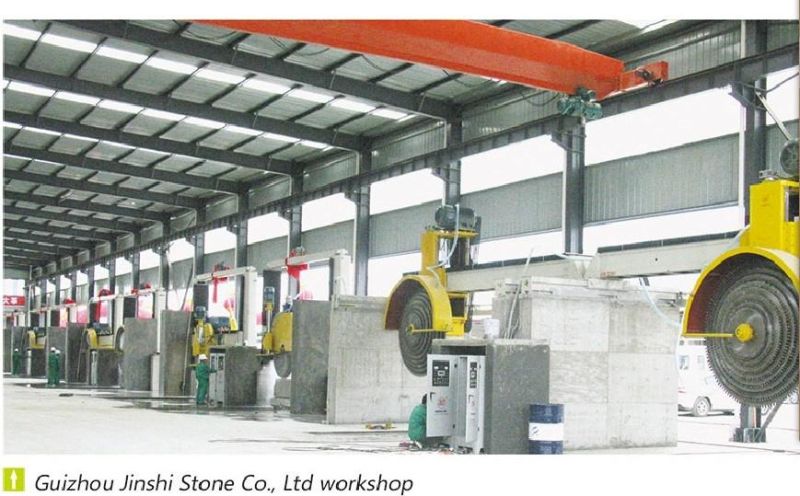

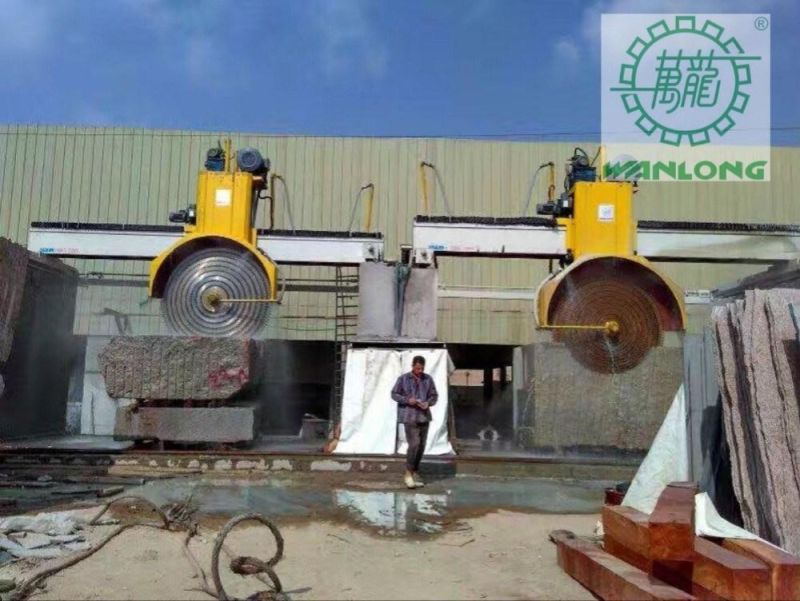

machine photo
