• Model NO.：QZQ-900,1200
• Cutting Ability：High Speed
• Control：Artificial
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Model：Qzq-900,1200
• Max.Cutting Size：3000 X 1600 X 450mm
• PLC：Panasonic
• Main Motor：Siemens
• Llift System：Four Columns Hydraulic Lifting
• Automatic：Full Automatic
• Function：Cutting Stone Block
• Origianl：China
• Voltage：Upon Request
• Transport Package：Seaworthy Package
• Specification：6000 x 5000 x 4200mm
• Trademark：WANLONG
• Origin：China
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. QZQ-900/1200 Cutting Ability High Speed Control Artificial Certification API, CCC, UL, SONCAP, GOST, ISO, CE Model Qzq-900/1200 Max.Cutting Size 3000 X 1600 X 450mm PLC Panasonic Main Motor Siemens Llift System Four Columns Hydraulic Lifting Automatic Full Automatic Function Cutting Stone Block Origianl China Voltage Upon Request Transport Package Seaworthy Package Specification 6000 x 5000 x 4200mm Trademark WANLONG Origin China Production Capacity 10 Sets Per Month

Product Description

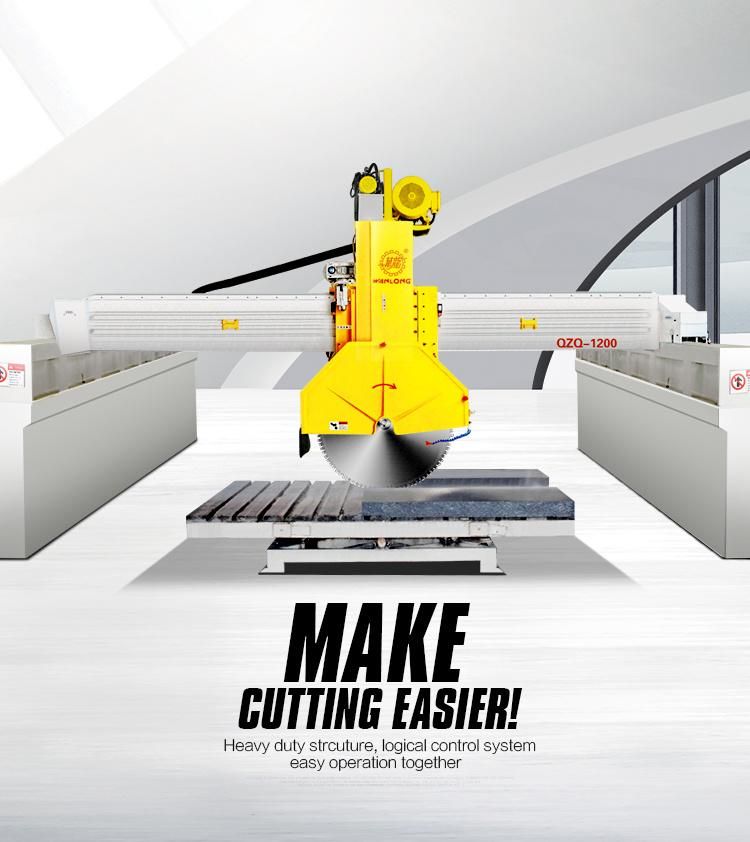

QZQ-900/1200  Bridge Cutting Machine

The headstock of machine moves flexibly in three directions, up & down, left & right, forward & backward (in axis X,Y,Z) It is wide-span structure, equipped with 0-360 degree rotary table. The vertical stroke of machine makes speed adjustment easier.
It is an ideal machine for processing small block, especially for tombstone or monument.

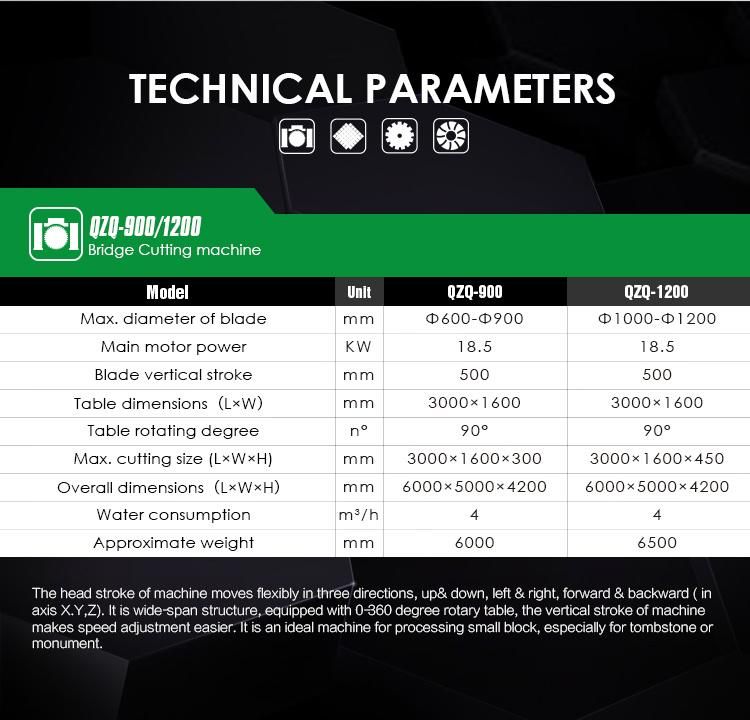

Technical Parameters

Model		QZQ-900	QSQ-1200
Max. diameter of blade	mm	φ600 - φ900	φ1000 - φ1200
Main motor power	kw	18.5	18.5
Blade vertical stroke	mm	500	500
Table dimensions ( L x W )	mm	3000 x 1600	3000 x 1600
Cutting table rotation range	n°	0 - 360°	0 - 360°
Max. cutting size ( L x W x H )	mm	3000 x 1600 x 300	3000 x 1600 x 450
Overall dimension ( L x W x H )	mm	6000 x 5000 x 4200	6000 x 5000 x 4200
Water consumption	m³/h	4	4
Approximate weight	mm	6000	6500
