Wanlong 2500mm Blades Bridge Multi-blade Block Cutter Machine

Fujian Wanlong Diamond Tool Co., Ltd.
  • Warranty：12 Months
  • Type：Hydraulic Cutting Machine
  • Usage：Ceramics, Glass, Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble, Multiblade Granite Bridge Cutter
  • Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Hydraulic Bridge Stone Block Cutter
  • Source Voltage：380V
  • Automation：Automatic

Base Info

  • Model NO.：QSQ-2500
  • Cutting Ability：High Speed

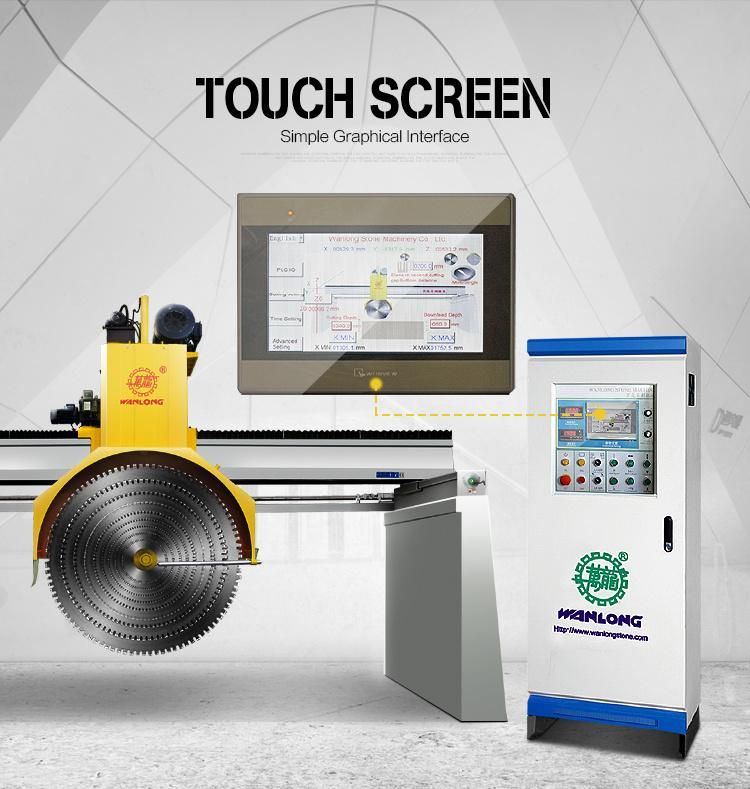

  • Control：CNC
  • Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, Multiblade Block Cutting Machine
  • Main Motor Power：45,55,65kw
  • Voltage：220,380,415V
  • After Sales Service Provide：Engineer Available Service Machinery Overseas
  • Max. Processing Size：3300X2100X1100mm
  • Max. Blade No.：12PCS
  • Water Consumption：30m3,H
  • Approximate Weight：12 -16 Tons
  • Transport Package：Seaworthy Wooden Case for Automatic Cutting Machin
  • Specification：7500x4000x5500mm
  • Trademark：Wanlong
  • Origin：China
  • HS Code：84641000
  • Production Capacity：5000sets Per Year

Description

Basic Info.

Model NO. QSQ-2500 Cutting Ability High Speed Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, Multiblade Block Cutting Machine Main Motor Power 45/55/65kw Voltage 220/380/415V After Sales Service Provide Engineer Available Service Machinery Overseas Max. Processing Size 3300X2100X1100mm Max. Blade No. 12PCS Water Consumption 30m3/H Approximate Weight 12 -16 Tons Transport Package Seaworthy Wooden Case for Automatic Cutting Machin Specification 7500x4000x5500mm Trademark Wanlong Origin China HS Code 84641000 Production Capacity 5000sets Per Year

Product Description

Wanlong 2500mm Blades Bridge Multi-blade Block Cutter Machine
Wanlong 2500mm Blades Bridge Multi-blade Block Cutter Machine
Wanlong 2500mm Blades Bridge Multi-blade Block Cutter Machine
Wanlong 2500mm Blades Bridge Multi-blade Block Cutter Machine
Wanlong 2500mm Blades Bridge Multi-blade Block Cutter Machine

Bridge Multiblade Block Cutter (QSQ2200/2500/3000)
High efficiency for cutting block into slabs with multi-blade combination, this machine is the ideal equipment for producing large slabs.

Comparing with normal single blade cutting machine, this machine has following advantages:
Trolley is not necessary when cutting / You can lie the block on the ground/cutting several blocks of different sizes at one time.

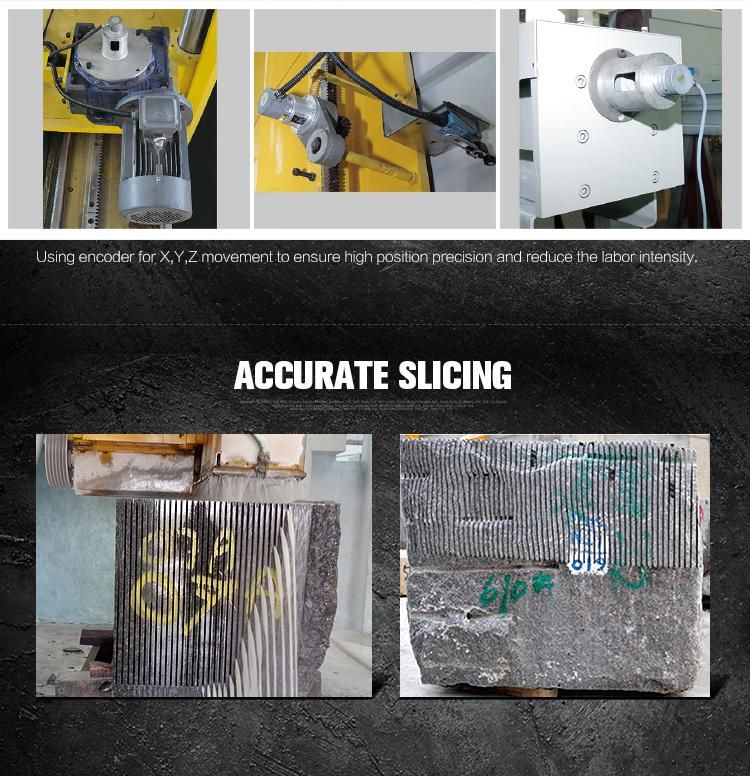

The crossbeam movement on the side beams. There precise cutting and less maintenance are available by this machine.
The machine can take multi-blades(2500/2000/1600/1200/800mm, 2200/2000/1800/1600/1370/1160/950/740/530mm). Daily production capacity for MID-hard granite can be 170sqm while the single blade life is only 30sqm.

Mechanical system

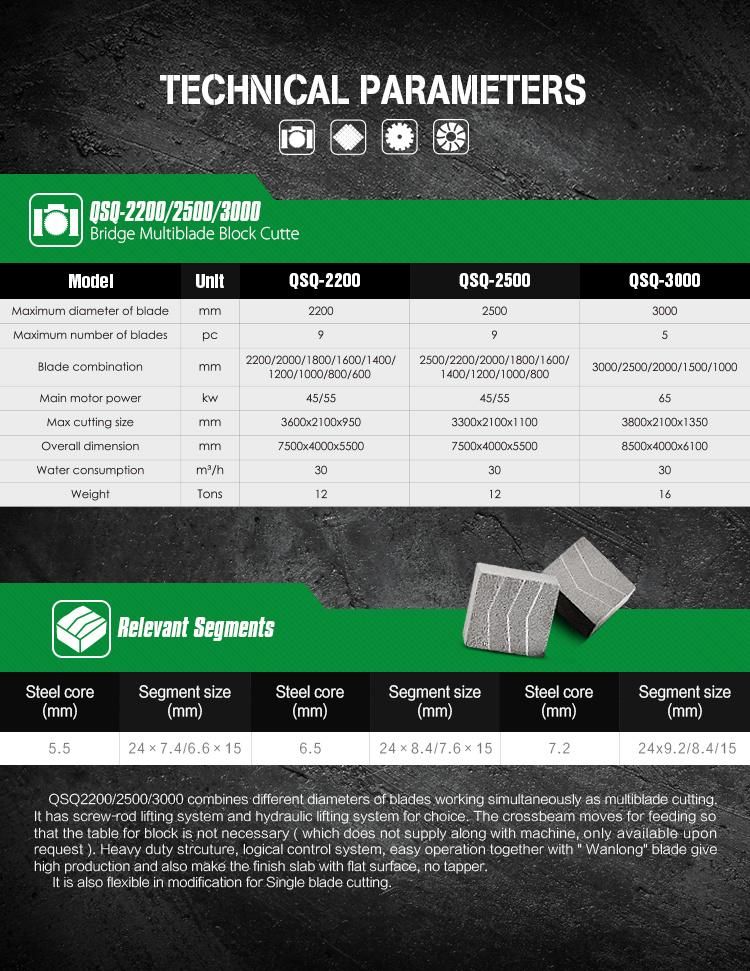

Technical  Parameter
 		  QSQ-2200
 		  QSQ-2500
 		  QSQ-3000

  Max.   blade  diameter/mm
 		  2200
 		  2500
 		  3000

  Max.   cutting  length/mm
 		  3200
 		  3000
 		  2500

  Max.   cutting  width/mm
 		  1800
 		  1800
 		  1800

  Max.   cutting  height/mm
 		  950
 		  1100
 		  1350

  Max.   No.   of  blades
 		  9  9  12
  Main  motor  power/kw
 		  45/55 45/55  65
  Overall  dimension  (LxWxH)/mm
 		  7300X4000X5500
 		  7300X4000X5500
 		  8500X4000X6100

  Total  Weight/kg
 		  12, 000
 		  12, 000
 		  16, 000
