• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Blade Tilting：0-45 Degree for Miter Cut
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stopped Any Postion
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max. Cut Thick：170mm
• Max. Blade Size：625mm
• Transport Package：Water-Proof Package
• Specification：Dimention: 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641090
• Production Capacity：200sets,Mon

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Blade Tilting 0-45 Degree for Miter Cut Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stopped Any Postion Max. Length of Cutting (Table Size) 3200*2000mm Max. Cut Thick 170mm Max. Blade Size 625mm Transport Package Water-Proof Package Specification Dimention: 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641090 Production Capacity 200sets/Mon

Product Description

Premium Stone Bridge Saw with 45 Miter Cut for Slabs Tiles Countertops Fabricating
Product No. XZQQ625A

Are you sourcing a reliable stone bridge saw to cut slabs&tiles&countertops? Here is the most reliable and effiency saw in the market at the right price.
Laer bridge saw XZQQ625A is made of full options including mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc, very suitable for cutting granite, mabrle, quartz and other stones.

Stone bridge saw specification:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

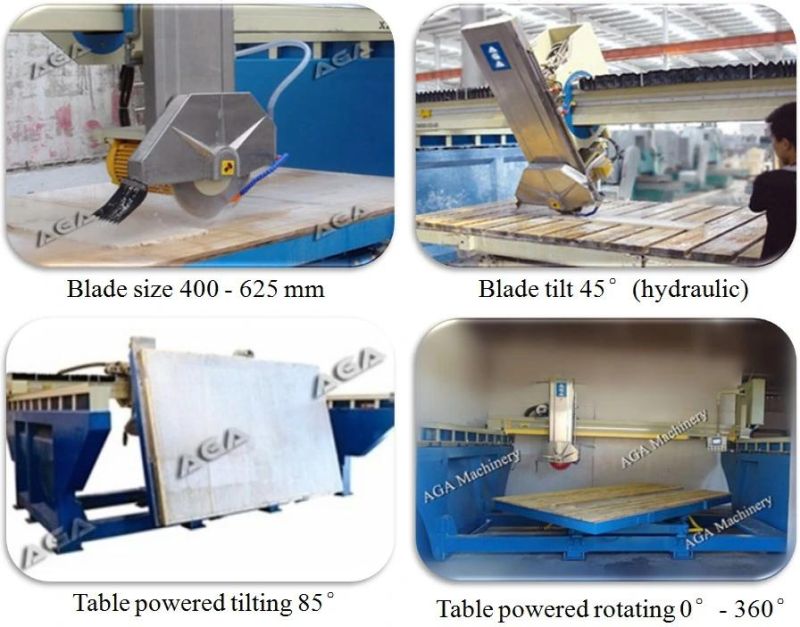

Granite bridge saw description with pictures:

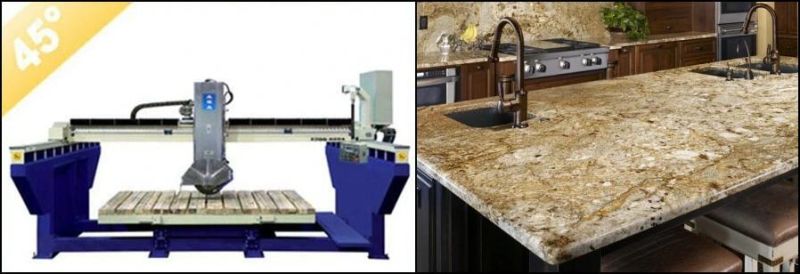

1) Miter Cut:
The tilting head of the stone cutting machine provides 0°-45°for miter cut very excellent performance in cutting and fabricating stones.
2) Powered Table Tilting and Rotating:
Cutting machine table tilts 0-85 degree hydraulic for easy load of material. It rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position.

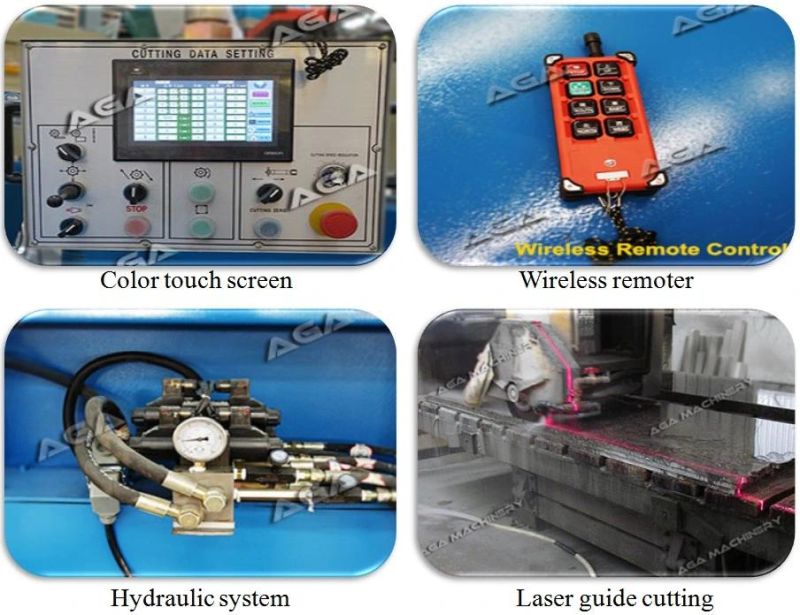

3) Automated Programming:
PLC control, electric system is very simple and easy to operate. All functions are operated on the color touch screen control panel.
4) Wireless remote provides easy control of the saw making its users very friendly.
5) Laser guide shows precision cutting every time in +/-0.2mm.
6) Automatic water control saving every drop.
7) Main structures of the stone cutting machine are made of very strong cast iron and stainless steel for protection.
8) The max.cut size of stone can be 3200 × 2000mm×170mm in Length× Width×Thickness.



Monoblock stone cutting machine shipped to customers throughout the world, this advanced machine will turn you much more in the business.


FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 days ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


Key Words:
Stone bridge saw, bridge saw, granite bridge saw, marble bridge saw, quartz bridge saw, slab bridge saw, granite saw, marble saw, tile saw, stone cutting mahcine, bridge saw, granite cutting machine, stone bridge cutter, bridge cutter machine, cnc machine, cnc cutting machine, slab cutting machine, tile cutter, etc.



If you have any questions please feel free to inform us, we're more than happy to serve you!
