• Model NO.：LXM-8 12 16 20 24
• Type for Grinding Machine：Disc Grinding Machine
• Grinding Machine Type：Marble Polishing Machine
• Grinding Method：Wet Grind
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, Granite Tile Polisher Machine
• Condition：New
• Main Motor Power：105,135kw
• Voltage：220,380,415V
• After Sales Service Provide：Engineer Available Service Machinery Overseas
• Max. Processing Size：3000X1300X50mm
• Max. Heads No.：8, 12, 16, 20, 24 Heads
• Water Consumption：13, 18 M3,H
• Approximate Weight：11-20 Tons
• Transport Package：Seaworthy Wooden Case for Automatic Cutting Machin
• Specification：7900x2200x2200mm
• Trademark：Wanlong
• Origin：China
• HS Code：84642000
• Production Capacity：5000sets Per Year

Basic Info.

Model NO. LXM-8 12 16 20 24 Type for Grinding Machine Disc Grinding Machine Grinding Machine Type Marble Polishing Machine Grinding Method Wet Grind Certification API, CCC, UL, SONCAP, GOST, ISO, CE, Granite Tile Polisher Machine Condition New Main Motor Power 105/135kw Voltage 220/380/415V After Sales Service Provide Engineer Available Service Machinery Overseas Max. Processing Size 3000X1300X50mm Max. Heads No. 8/ 12/ 16/ 20/ 24 Heads Water Consumption 13/ 18 M3/H Approximate Weight 11-20 Tons Transport Package Seaworthy Wooden Case for Automatic Cutting Machin Specification 7900x2200x2200mm Trademark Wanlong Origin China HS Code 84642000 Production Capacity 5000sets Per Year

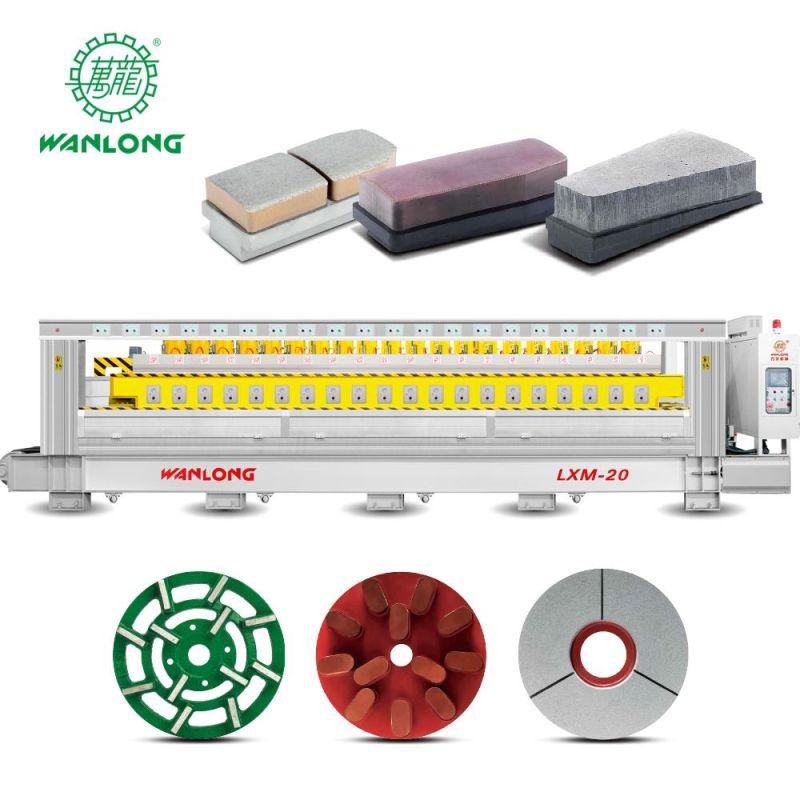

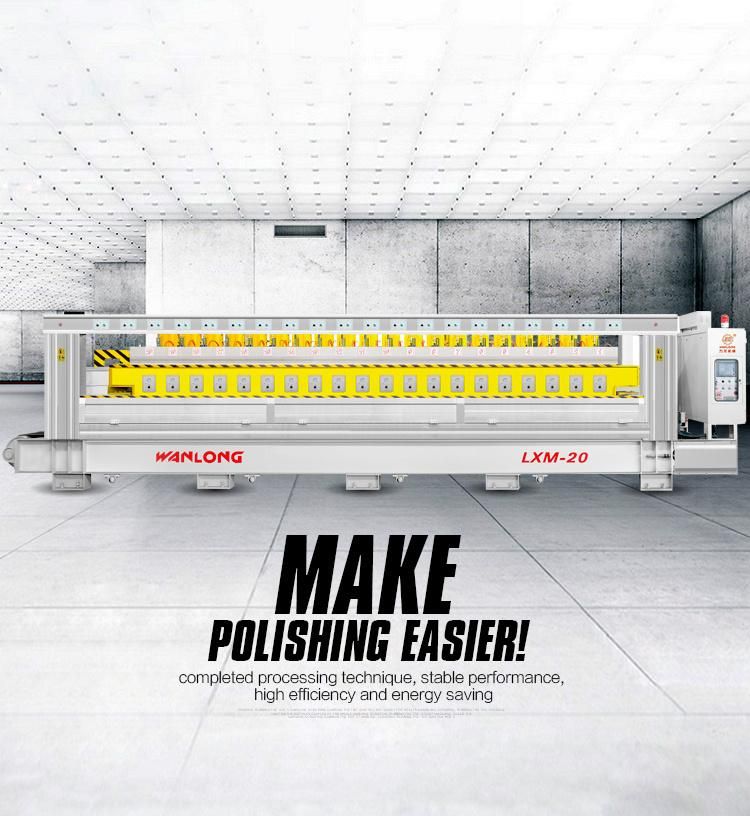

Product Description



		LXM-8	LXM-12	LXM-16	LXM-20	LXM-24
Polishing Heads number (optional)	pc	8	12	16	20	24
Working width (optional)	mm	500-1300	500-1300	500-1300	500-1300	500-1300
Thickness	mm	15-50	15-50	15-50	15-50	15-50
Air Consumption	m³/h	10	14	19	24	29
Main motor power	KW	6x7.5+2x9kw	9x7.5+3x9kw	12x7.5+4x9kw	15x7.5+4x9kw	18x7.5+6x9kw
Dimensions (L x W x H)	mm	5320*2200*2200	6600*2200*2200	7900*2200*2200	9200*2200*2200	10500*2200*2200
Main motor power	KW	74	105	135	162	202
Total weipht	m³/h	11	13	16	20	24

Advantages

1, Auto Lubrication System for Polishing Heads and Key Bearings!
2, PLC Intelligent Control System! Warning Device for Polishing Material Wearing!

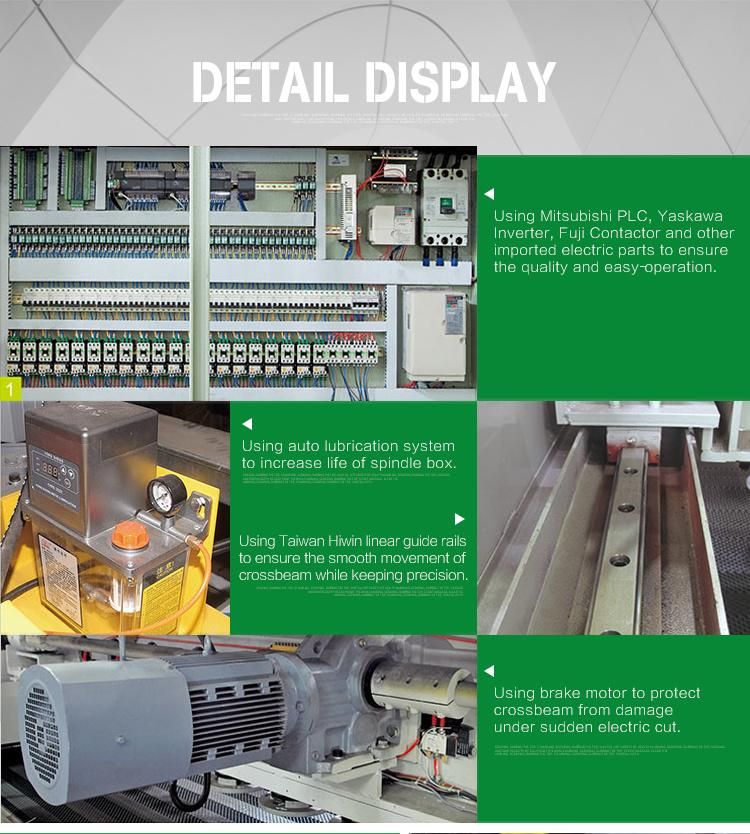

3, Imported Electric Parts: SIEMENS Motor and Switch, FUJI Contactor, Japan Yaskawa Inverter
5, Auto Detector for Slab Size
6, Unique Damping Device for Polishing Heads

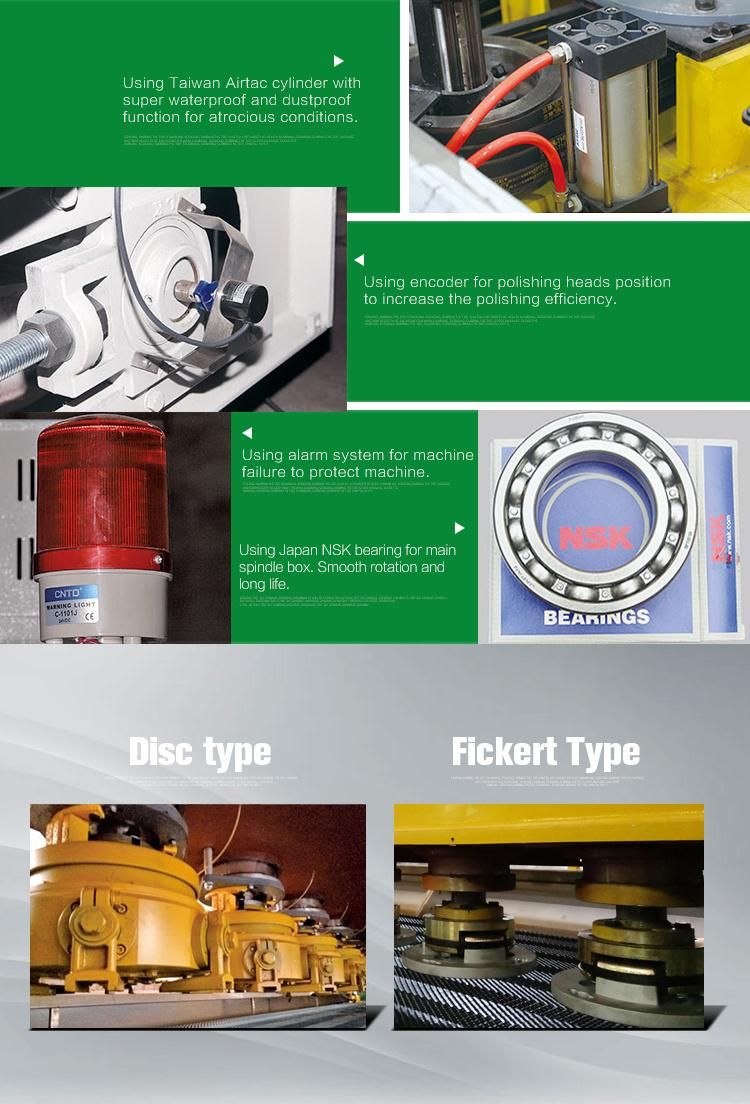

7, AIRTEC Air Cylinder, Germany Technology, TAIWAN Produced
8, Independent Switch Gear for Each Polishing Head Pressure Adjustable for Each Head
9, TAIWAN Linear Guide Rail for Crossbeam Back and Forward Movement.
10, Anti-collision Device for Crossbeam Back and Forward Movement While Limit Switch be out of order
11, With Slab Loading and Unloading Trolley! Cleaning Head and Dryer

LXM-16 Output: 30-35m2 per hour for 85 degree Shinning!
LXM-20 Output: 35-40m2 per hour for 85 degree Shinning!
