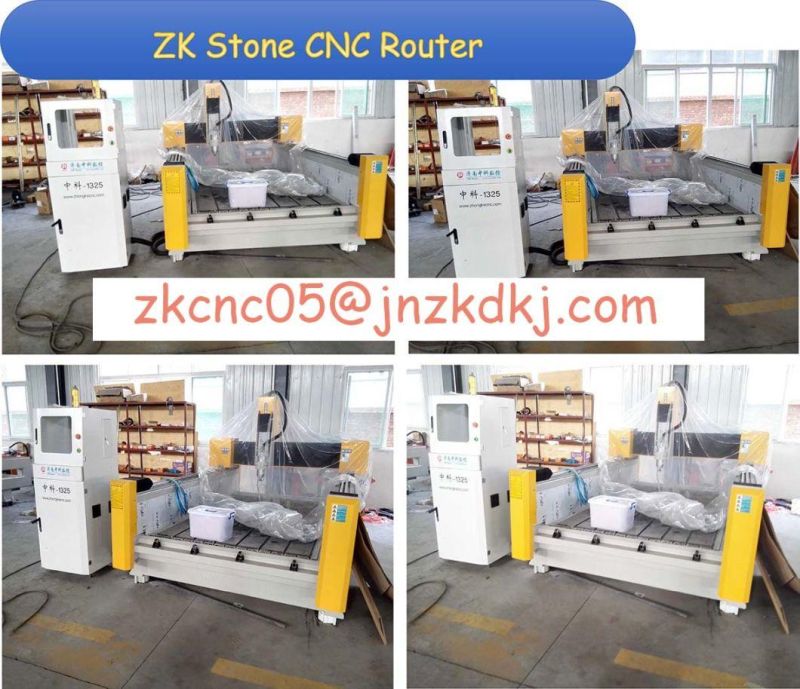

3D Marble CNC Router for Sale
Jinan Zhongke CNC Equipment Co., Ltd.- Function：Line Engraving
- Application Material：Marble
- Automation：Manual
- Control：CNC
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：1325
- Certification：CE, ISO
- Current：AC
- Application：Stone Industry
- Customized：Customized
- Inverter：Sunfar Inverter
- Spindle Speed：6000-24000rpm,Min
- Control System：Ncstudio
- Highest Engraving Speed：8m,Min
- Motor：Stepper Motor
- Guide Rail：Taiwan Hiwin Square Guide Rail
- Transmission：Helical Rack
- Power：3-8kw
- Colour：Customized
- Spindle：Water Cooling Spindle
- Transport Package：Plywood Package
- Specification：1300*2500mm
- Trademark：ZK
- Origin：Jinan Shandong
- HS Code：84649000
- Production Capacity：100
Description
Basic Info.
Model NO. 1325 Certification CE, ISO Current AC Application Stone Industry Customized Customized Inverter Sunfar Inverter Spindle Speed 6000-24000rpm/Min Control System Ncstudio Highest Engraving Speed 8m/Min Motor Stepper Motor Guide Rail Taiwan Hiwin Square Guide Rail Transmission Helical Rack Power 3-8kw Colour Customized Spindle Water Cooling Spindle Transport Package Plywood Package Specification 1300*2500mm Trademark ZK Origin Jinan Shandong HS Code 84649000 Production Capacity 100Product Description

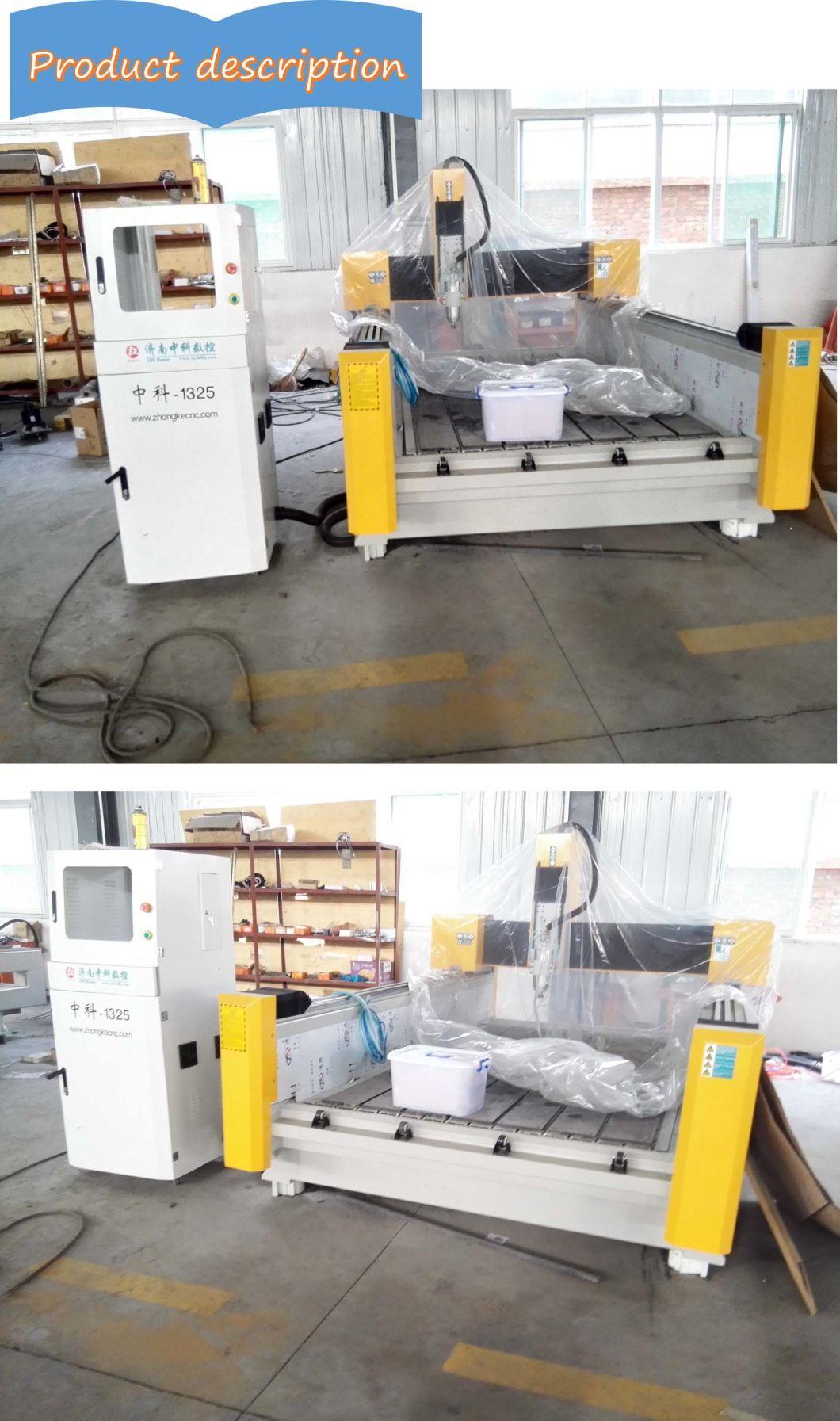

3d marble cnc router for saleFeature:

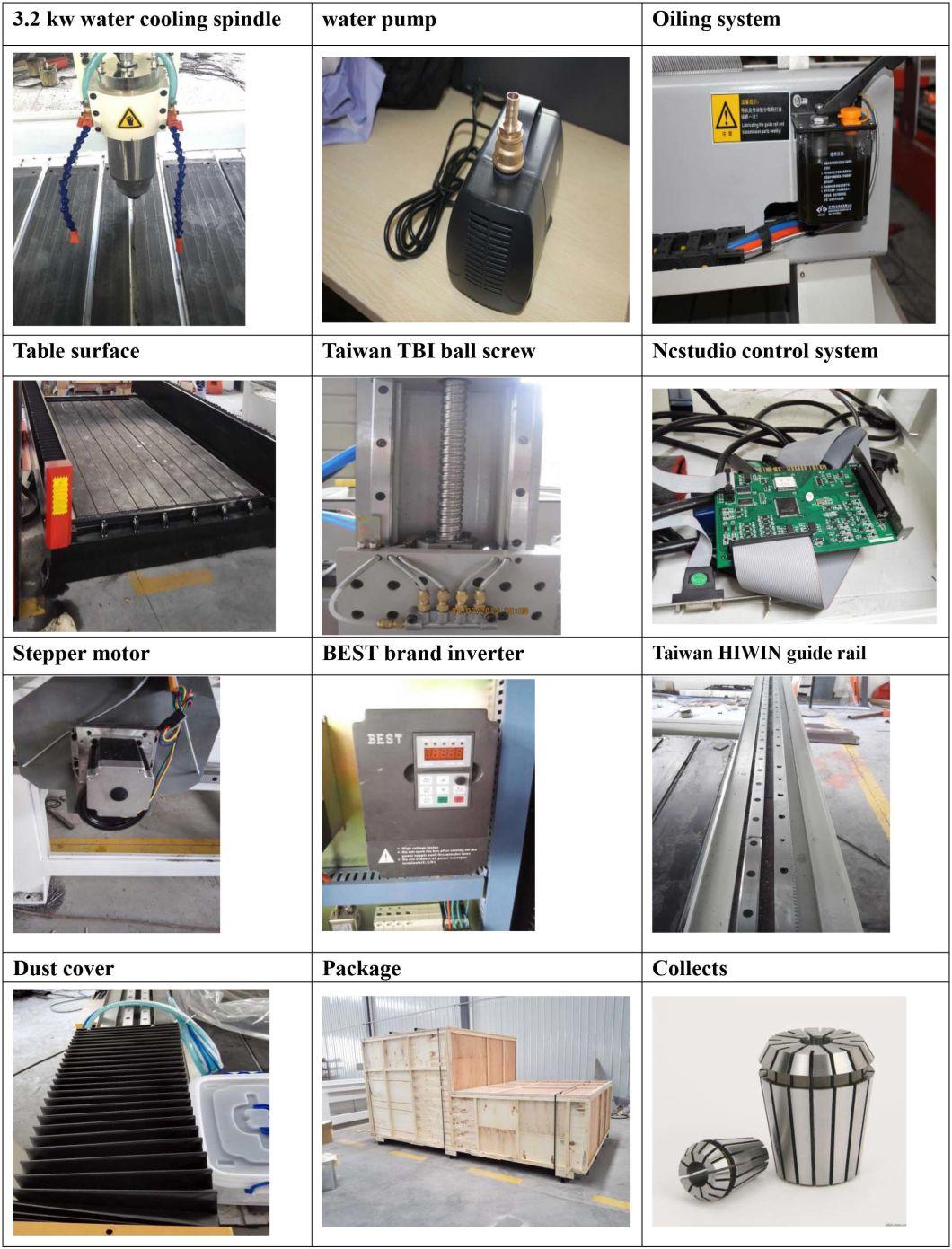

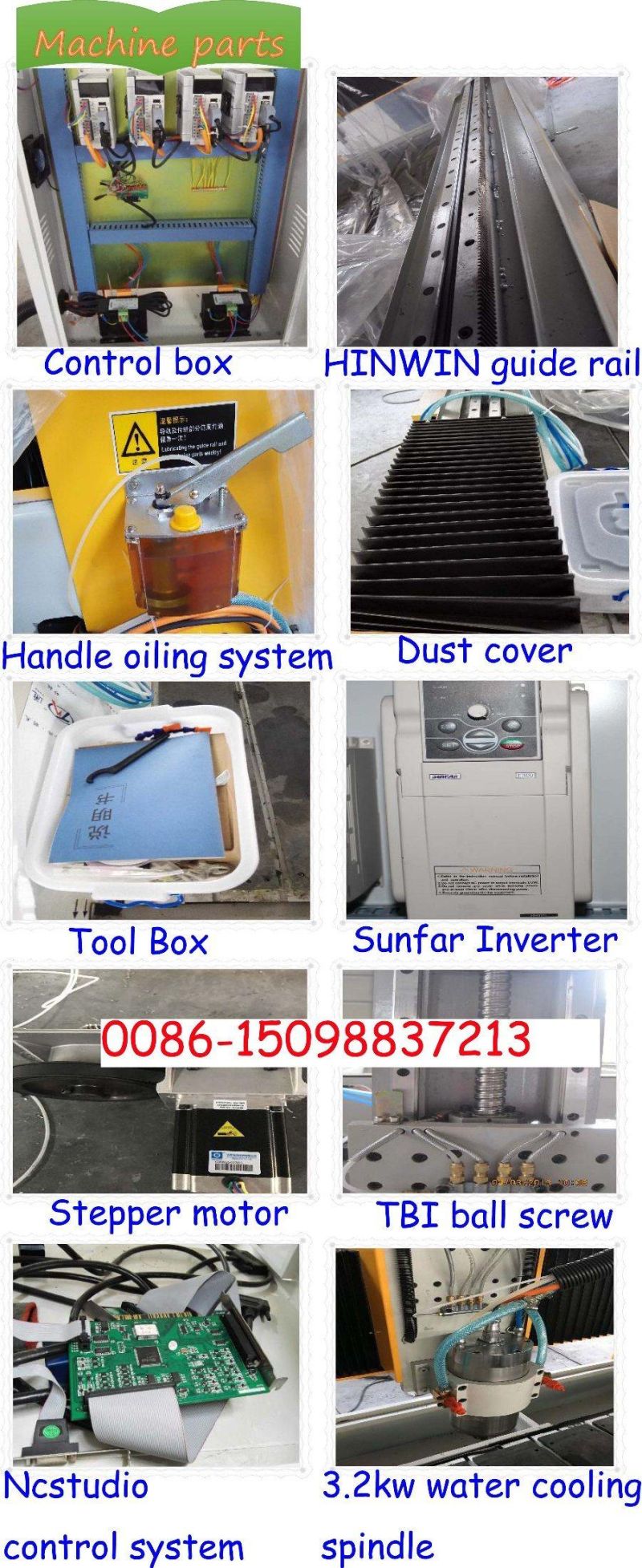

1.Adopt Taiwan HIWIN guide rail. the bearing of the lead guide is face to face, long time to use and high precision.
2.high precision ball screw, and screw rack, make better accuracy.
3.dustproof and waterproof system, guarantee the long term running of the merchanical aspect.
4.Breakpoint memory, can engrave at the breakpoint after power off and breaking knife.
4.compatibility software: CAD/CAM, such as type3, artcut, proe, wentai,castmate Corelerow etc.
5. stepper motor working mode
6.water cooled spindle, rotation speed is 24000rpm/min.
7 Ncstudio control system, we offer CD for traning.
Specification:
| Performance index | stone work cnc engraving machine |
| Sculpture range | 1300×2500mm |
| Z working area | 300mm |
| table size | 15000×3000mm |
| Max feeding | 300mm |
| rotation axis diameter | 12.5cm/ 20cm |
| Highest engraving speed | 8m/min |
| resolution | 0.05mm |
| Reposition accuracy | 0.05mm |
| command | G Code*.u00*.mmg*.plt |
| surrounding for Software | windows98/2000/xp |
| Power (do not contain spindle) | 2kw/3kw/4.5kw |
| power | AC380V/50Hz |
| main axle power rate | 3.0-4.5KW |
| main axle rotating speed | 6000-24000rpm/min |
| work mode | stepper |

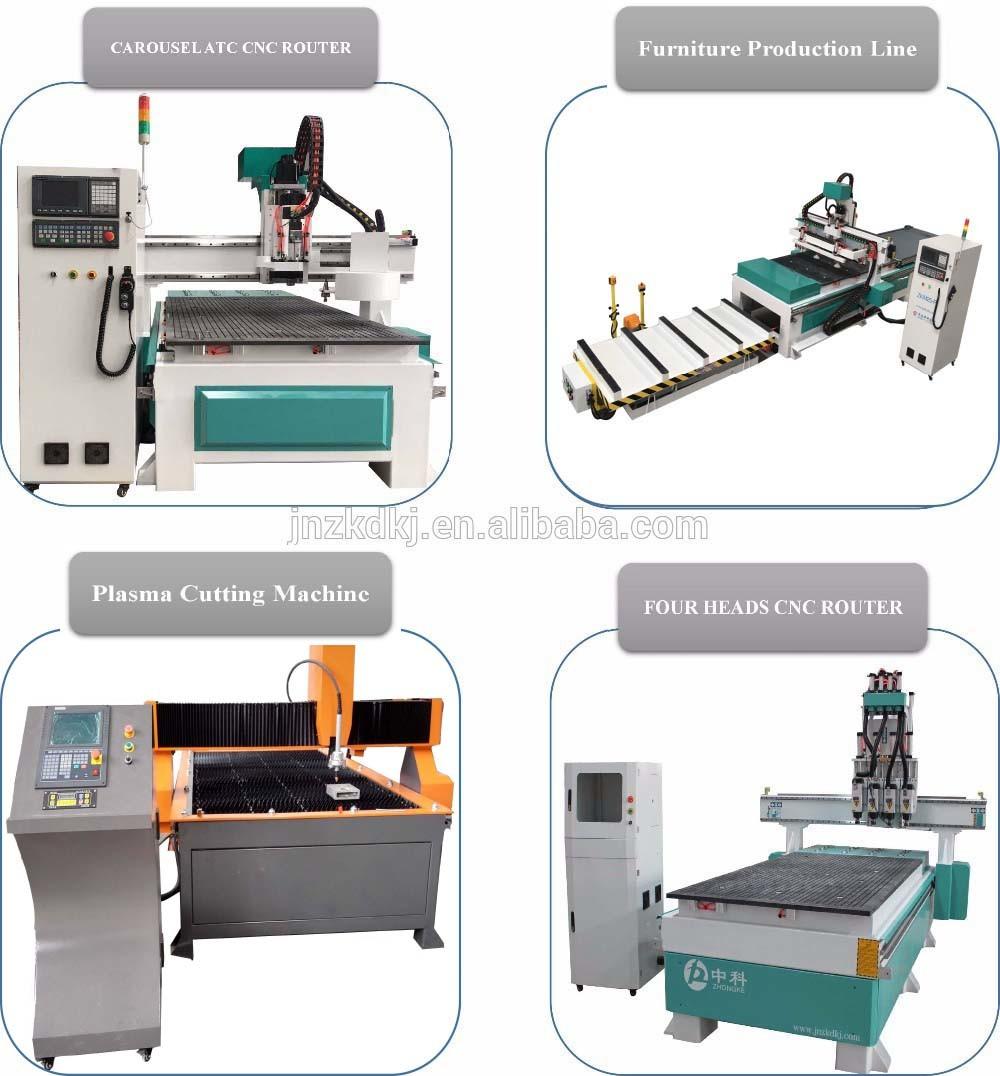

OUR FACTORY OTHER MACHINES
If you are interested in our machines ,please do not hesite to contact me .
welcome to visit our factory anytime!!!-----------------------Anna
