• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai
• HS Code：8474209000
• Production Capacity：80sets,Month

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai HS Code 8474209000 Production Capacity 80sets/Month

Product Description

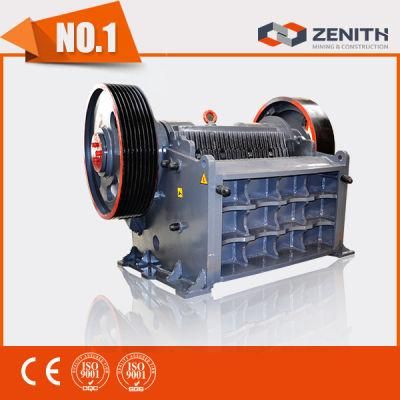

CE Certificate High Quality small jaw crushers

small jaw crushers introduction:

small jaw crushers are ideally suitable for primary and secondary crushing, with low power consumption and easy maintenance. Every feature of jaw crushers has been carefully designed to provide superior quality and performance. The jaw crushers are widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. Jaw crushers are recommended by leading consultants in this field and are used by hundreds of customers all over the world.


Features of small jaw crushers:

1. The application of world-class manufacturing processes and high-tech materials.
2. Integrated steel structures are used for the base of bearing;
3. Lubrication system is safe and reliable, convenient of replace parts, easy to maintenance;
4. The outlet employs pad-style adjustment devices, convenient and reliable, and increases the flexibility of the equipment;
5Low noise, less dust, easy jaw crusher operation and maintenance.


small jaw crushers working principle:

Working principle of small jaw crushers is as following: Jaw crusher reduces large size rocks or ore by compressing, a fixedjaw, mounted in a V alignment is the stationary breaking surface,while the moveable jaw plate exerts force on the rock by compressing itagainst the fixed jaw plate. This is very important in working principle of stone crushing mahcine. The space at bottom of the V, alignedjaw plate, is the output size gap, or the maximum size of the crushedproduct.Due to the features of simple structure, reliable performance,convenient maintenance and safe use, our jaw crusher has different jaw crusher specifications which you can see in the following chart.



small jaw crushers technical data:

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PE200×350	200×350	170	20-50	2-6	220	6-7.5	Y160M-6/7.5
PE250×400	250×400	210	20-60	5-20	310	6-15	Y180L-6/15	1450×1315×1296
PE250×750	250×750	210	20-60	8-22	320	6-30	Y225M-6/30
PE500×750	500×750	425	50-100	45-100	275	6-55	Y280M-6/55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	250	6-75	Y315S-6/75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	250	8-90	Y315L1-8/90	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	200	8-130	JR127-8/130	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	200	8-130	JR127-8/130	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	220	8-200	YR355M4-8/200	4930×3150×3700
