QMJ470(I) Bridge eight head grind and polishing machine(just for marble)

Yunfu City Xinda Machinery Co., Ltd.
  • Type：Stone Polishing Machine
  • Control：PLC
  • Automation：Automatic
  • Precision：High Precision
  • Application：Marble
  • Type for Grinding Machine：Disc Grinding Machine

Base Info

  • Model NO.：QMJ470(I)
  • Grinding Machine Type：Vibration Polishing Machine
  • Grinding Method：Wet Grind
  • Certification：ISO, CE
  • Condition：New
  • Conditiaon：New
  • Container Type：40GP(DC)
  • Transport Package：by Film Package
  • Trademark：XINDA
  • Origin：Yunfu City, China
  • HS Code：84642090
  • Production Capacity：1000

Description

Basic Info.

Model NO. QMJ470(I) Grinding Machine Type Vibration Polishing Machine Grinding Method Wet Grind Certification ISO, CE Condition New Conditiaon New Container Type 40GP(DC) Transport Package by Film Package Trademark XINDA Origin Yunfu City, China HS Code 84642090 Production Capacity 1000

Product Description


Function:The machine is mainly used for polishing marble slabs. there are two options for the structure of this machine:the integrated type and the separated type. It adopts PLC+ Visual control system technology, which automatically tracks and finishes the whole process of polishing marble slabs through image detection. This machine has the following advantages:high flatness, high gloss and high efficiency

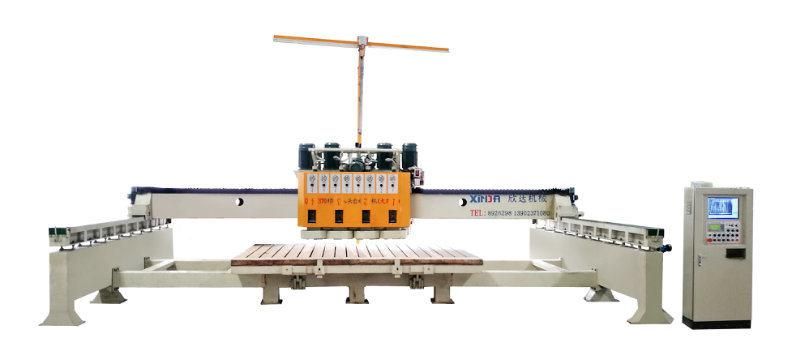

QMJ470(I) Bridge eight head grind and polishing machine(just for marble)

Advantages:
1.  The machine can finish polishing the marble slabs without replacing the grinding head.
2.  Replacing the manual operating machine used to polish marble slabs, the machine can drastically ease the worker's workload and save labor resources and improve the productivity.


Technical parameters:
ParametersQMJ-470
Polish efficiency15-25m²/h
Worktable Size3200×2200mm
Max processing size3200×2200×80(thickness)mm
Worktable Tile Angle0-83°
Main Motor Power4PCS×11KW
Water Consumption4m³/hour
Overall Dimension8000×5500×2600mm
Total Power52.5KW
Total Weight9.5T


 Exhibition:QMJ470(I) Bridge eight head grind and polishing machine(just for marble)FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The column cutting machine can be shipped within 20 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the wearing parts are not covered by the warranty. wearing parts are as follows: bearings,oil seals,blade etc.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. After-sales service 24 hour on line.
