XDQJ 600 Infrared Bridge Stone Cutting Machine

Yunfu City Xinda Machinery Co., Ltd.
  • Type：Bridge Cutting Machine
  • Usage：Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
  • Application：Machinery & Hardware, Art & Craft, Construction, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed

Base Info

  • Model NO.：XDQJ 600
  • Control：PLC
  • Certification：ISO, CE
  • Conditiaon：New
  • Container Type：20GP(DC)
  • Transport Package：by Film Package
  • Trademark：XINDA
  • Origin：Yunfu City, China
  • HS Code：84641090
  • Production Capacity：500

Description

Basic Info.

Model NO. XDQJ 600 Control PLC Certification ISO, CE Conditiaon New Container Type 20GP(DC) Transport Package by Film Package Trademark XINDA Origin Yunfu City, China HS Code 84641090 Production Capacity 500

Product Description

The infrared Bridge cutting machine is separate structure, need to build concrete foundation. The machine adopts the infrared for tool setting and the magnetic grid ruler for measuring the distance, use hydraulic unit to transmit, is controlled by PLC. The machine is mainly used for cutting marble and granite slabs, especially suitable for cutting the high value slab.

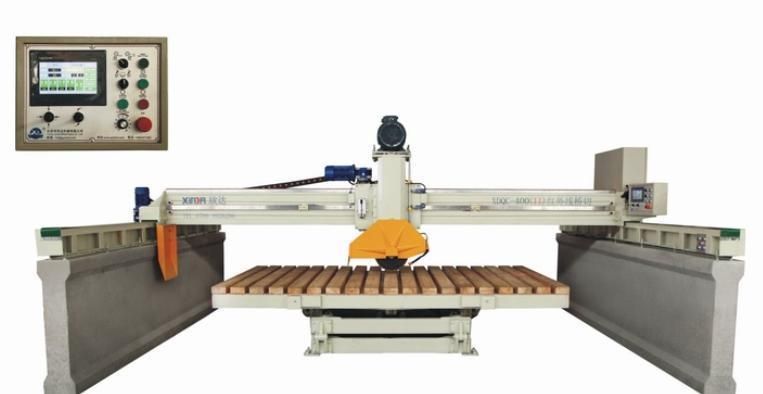

XDQJ 600 Infrared Bridge Stone Cutting Machine




The bridge cutting machine consists of crossbeam, spindle box, lifting components, worktable parts, PLC control system, hydraulic system ,infrared ray unit and automatic lubrication system.

Feature:1, Crossbeam is made of cast iron, it will be more durable and stable.2,Worktable can rotate 0-360°and locate in every 45 degree,can tilt 0°-83°3,Hydraulic system is used in the worktable tilting and rotating.4,AC contactor ,inverter,breaker,touch screen and PLC adopt Schneider brand. human-machine interface is easily operated and fully automatic processing as operator entered parameters5,Equipped with infrared ray to exactly locate slabs 6,The forward and backward movement of crossbeam is equipped with magnetic grid ruler to ensure high processing precision. 7,This machine has an automatic lubrication system. Can set time to oil for the blade lifting parts
 Working principle:
The crossbeam was fixed on two parallel concrete foundations. The crossbeam move forward or backward by asynchronous motor, it is controlled by frequency converter(its stroke:2.3meters). The spindle is driven by main motor with belt transmission and then have the blade rotated. The blade component move left or right by asynchronous motor with frequency converter for adjusting feed speed(its stroke:3.5meters) Worktable can rotate 0°-360°and locate every 45° by hydraulic system transmission.

Technical parameters:
ParametersXDQJ400
Blade DiameterΦ400-Φ600
Worktable Size3200×2000mm
Max Transverse and Longitudinal Cutting Distance3200mm
Maximum Travel Of The Cutter Lifting300mm
Worktable Tile Angle0-83°
Cutting Thickness0-150mm
Main Motor Power15KW
Water Consumption4m³/hour
Overall Dimension6000×5000×3100mm
Total Power19.8KW
Total Weight5.2T

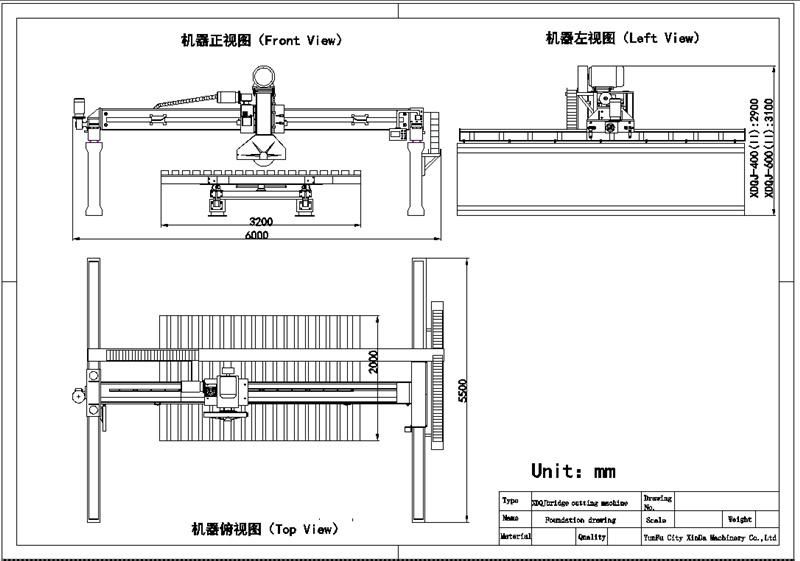

Schematic Drawing:
XDQJ 600 Infrared Bridge Stone Cutting Machine

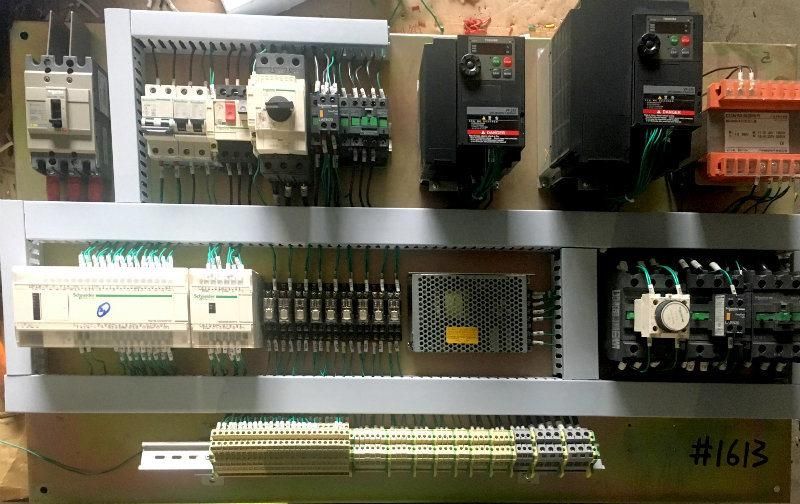

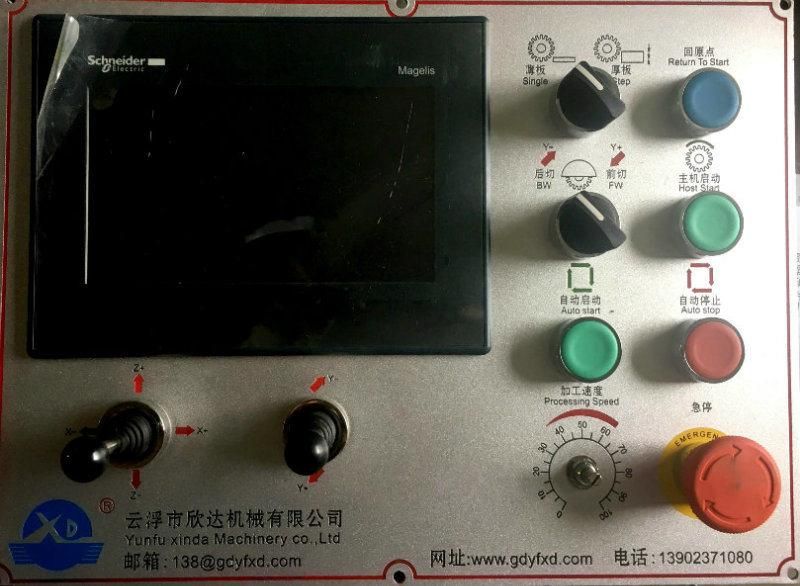

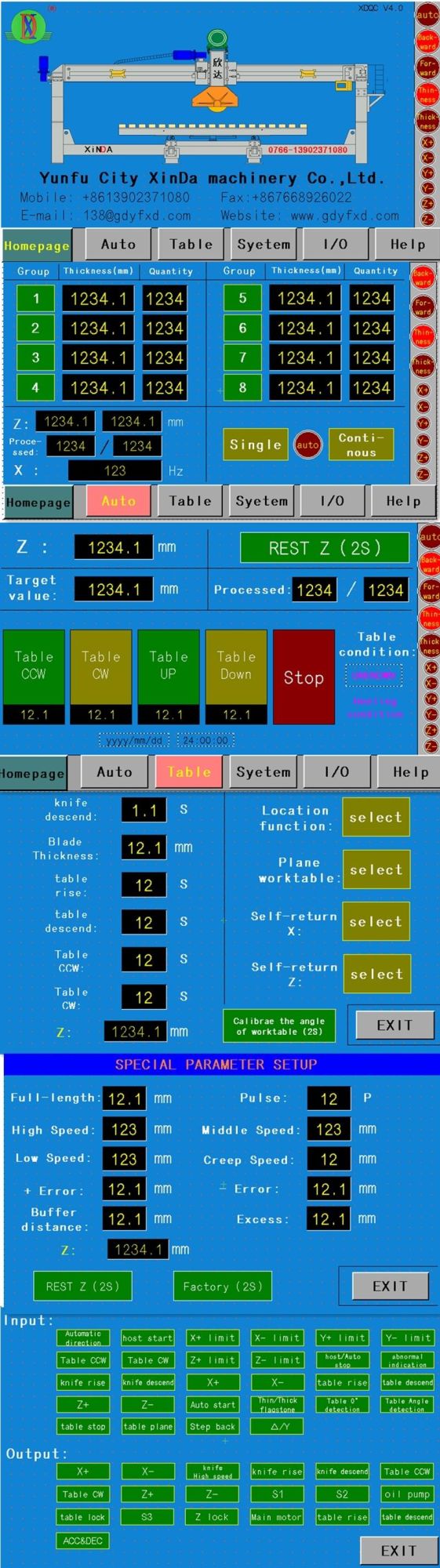

Electric Cabinet& Operation Panel Photos :
