• Model NO.：PE500x750, PE600x900, PE750x1060, PE900x1200
• Finished Surface：Hole Process
• Certification：CE, ISO
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：50-850tph

Basic Info.

Model NO. PE500x750, PE600x900, PE750x1060, PE900x1200 Finished Surface Hole Process Certification CE, ISO Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 50-850tph

Product Description

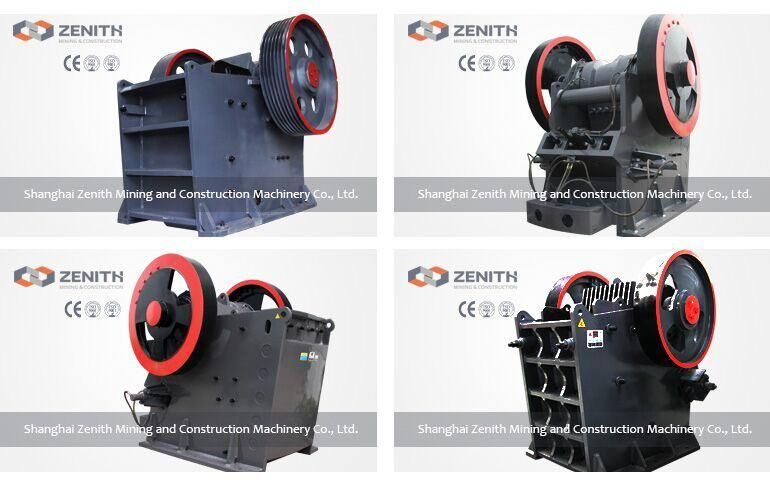

Introduction of PE Series Large Capacity Rock Jaw Crusher, Stone Crusher:

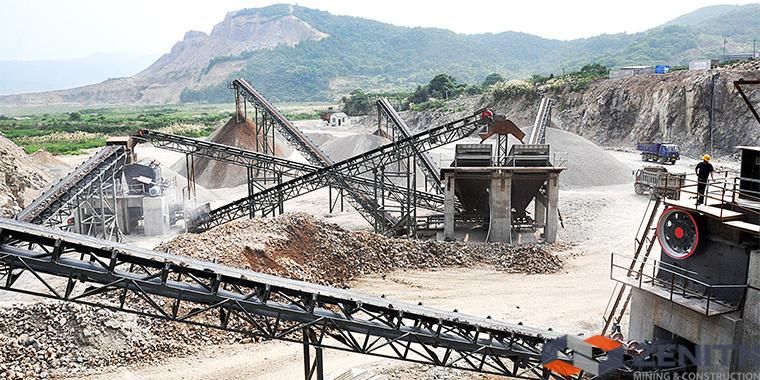

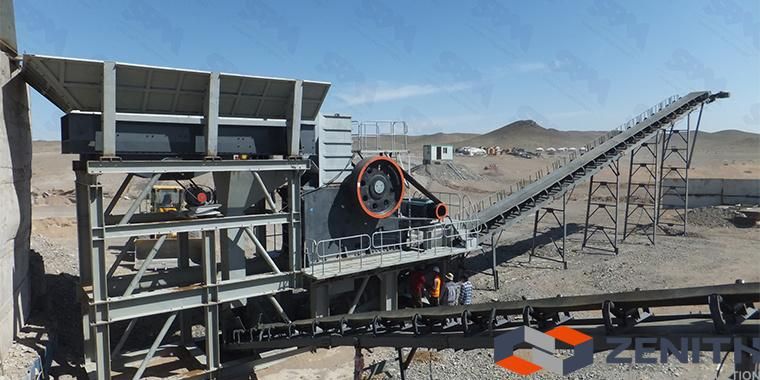

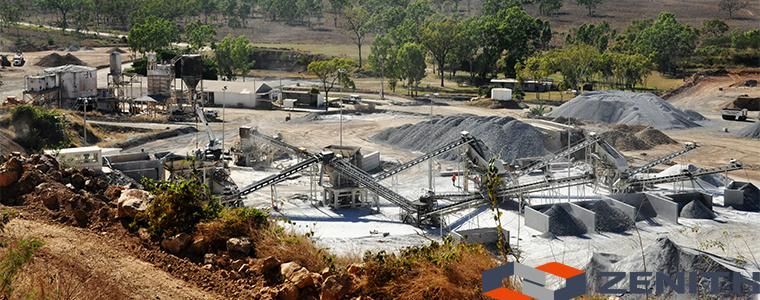

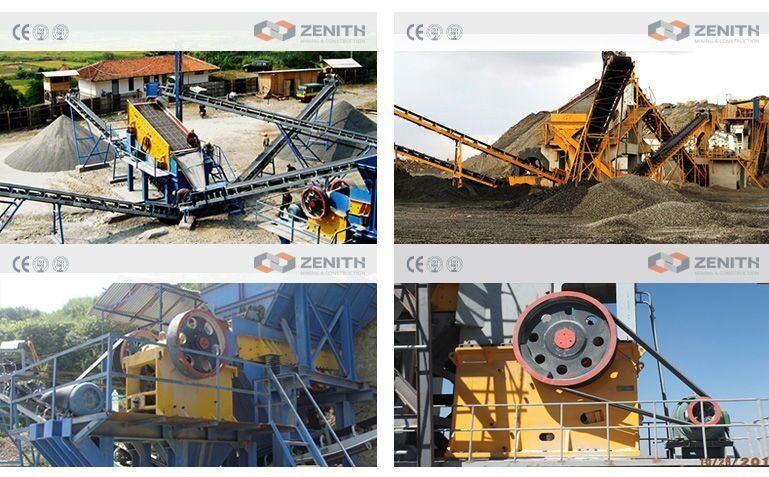

Jaw crusher is effective and energy conservation crushing machinery, Medium and large scale jaw crusher designed by Zenith is main product of us, in designing and producing large scale crusher, we have reached international level. Jaw crusher is main applied in all kinds of ore and big block material medium size crushing, material's hardness should be less than 320Mpa, coarse crushing and fine crushing are available. This series has a complete range of specifications, feeding size could be 125mm~750mm, it's the first choice of primary crushing. Jaw crusher could be widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industries

Working Principle of PE Series Large Capacity Rock Jaw Crusher, Stone Crusher:

The motor transmits power through belt, and drives the movable jaw do periodic motion to the fixed jaw surrounding the eccentric shaft. When the movable jaw goes up, closing to the fixed jaw plate, the stuff will be crushed, twisted and grinded in this process. When the movable jaw of jaw crusher moves away from fixed jaw plate by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw crusher with the function of gravity. With the continuous rotation of the motor, movable jaw crushes and discharges periodically for mass production.


Characteristics of PE Series Large Capacity Rock Jaw Crusher, Stone Crusher:

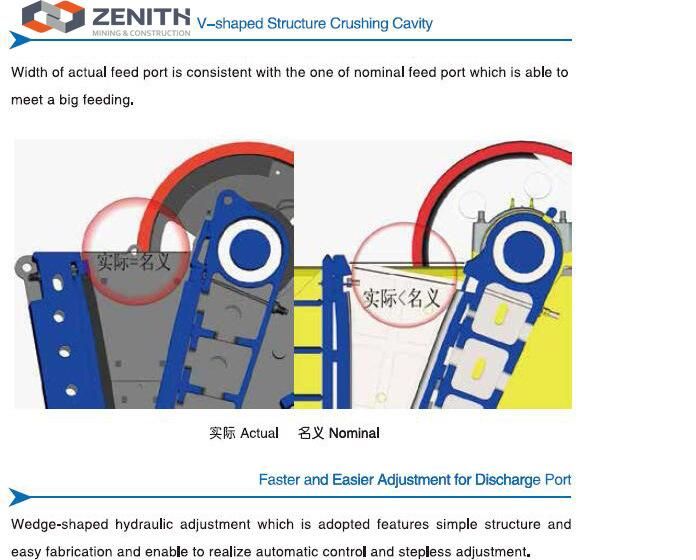

1. Optimized crushing cavity greatly improves feeding and crushing efficiency, saving energy by 15% -30%;
2. The larger heavy eccentric shaft, high manganese steel jaw plate and movable jaw assembly brings higher carrying capacity and stability.
3. Adopt the world's advanced manufacturing technology, digital analysis of components operating and precise internal structural greatly extend the lifespan of device.
4. The unique design of centralized lubrication system is more efficient for components lubrication but requires less maintenance.
5. Gasketed discharge adjustment of device permits larger adjustable range, which increases the flexibility of the device to meet the demand of customer in processing.
6. The device is in line with the national environmental standards, low noise with dust removal equipment, which is in full compliance with environmental requirements.


jaw crusher technical data:


Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PE200×350	200×350	170	20-50	2-6	220	6-7.5	Y160M-6/7.5
PE250×400	250×400	210	20-60	5-20	310	6-15	Y180L-6/15	1450×1315×1296
PE250×750	250×750	210	20-60	8-22	320	6-30	Y225M-6/30
PE500×750	500×750	425	50-100	45-100	275	6-55	Y280M-6/55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	250	6-75	Y315S-6/75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	250	8-90	Y315L1-8/90	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	200	8-130	JR127-8/130	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	200	8-130	JR127-8/130	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	220	8-200	YR355M4-8/200	4930×3150×3700
