• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Dimention(L*W*H)：6*5*2.6m
• Max. Length of Cutting (Table Size)：3200*2000mm
• Max. Cut Thick：170mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cut
• Spindle Motor：15kw 20HP
• Repeat Cutting：99 Repeat Cutting by Program
• Transport Package：Plasctic Packing
• Specification：Weight: 7200kg
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Dimention(L*W*H) 6*5*2.6m Max. Length of Cutting (Table Size) 3200*2000mm Max. Cut Thick 170mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cut Spindle Motor 15kw 20HP Repeat Cutting 99 Repeat Cutting by Program Transport Package Plasctic Packing Specification Weight: 7200kg Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200 Sets/Month

Product Description

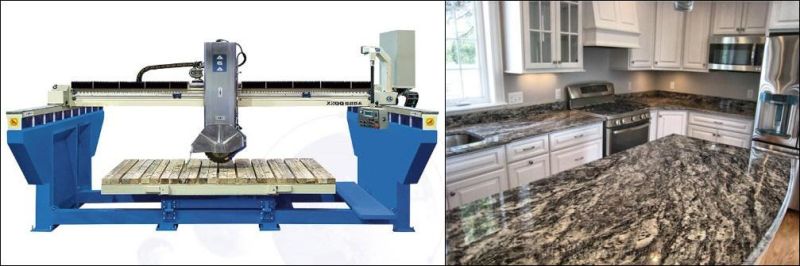

High Tech CNC Machine Auto Stone Bridge Saw Cutting Granite Marble Quartz
Model. XZQQ625A
The whole bridge saw is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and quartz stones.

Granite marble bridge saw technical parameters:

GBlade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Granite bridge saw advantages:

The design of the bridge saw provides the user safe and easy exploitation, high performance and productivity.
Y axis side walking group and X axis cutting movement group, control racks, pinions, linear rails and ball-bearings are working in oil pool. All moving parts are protected from water and dust by covering.
All comandulli machines are manufactured not only to perform consistently at the highest level for many years, but also to enable longevity of the machine.
The machine structure goes through a metallization process, and is finished with a special cataphoresis painting treatment allowing both a long rust free life, and great looks.

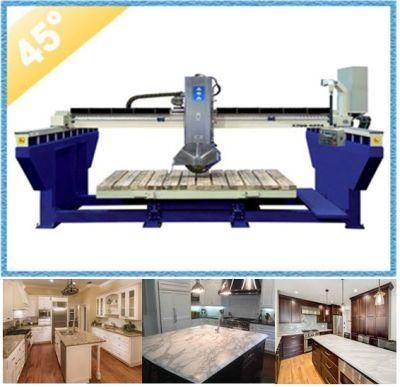

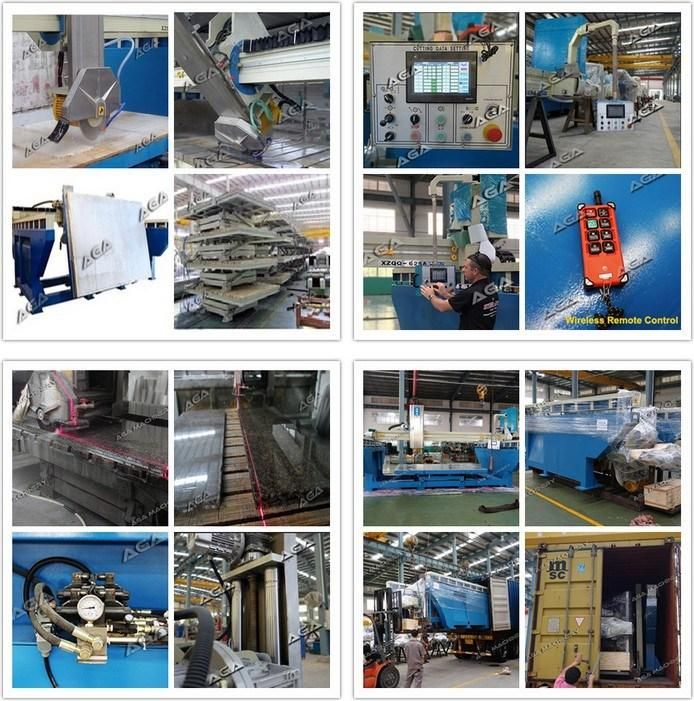

Grantie marble bridge saw introduction: 1) Tilting head for miter cut:
Granite bridge saw blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts very excellent performance in cutting and fabricating slab&countertop.
2) Powered table tilting and rotating:
Motorized table of the granite bridge saw can be locked in any position 0-360 degree and it also tilts 0 - 85 degree Hydraulic for easy load of material.
3) Color display control panel:
This monoblock bridge saw is PLC control, electric system is simple and easy to operate. All functions are operated on the control panel with Color Display Touch Screen.
4) Wireless remote:
Wireless remote provides easy control of the saw, making its users very friendly.
5) Laser cutting machine:
Bridge saw XZQQ625A is a full automatic laser cutting machine. Laser guide and sensors give precision cuts in +/-2.0mm every time.
6) Hydraulic system:
Automatic water control saving every drop.

Reliable and efficient bridge saw hot sales in the market at the right price.
Robust granite marble bridge saw hot sales throughout the world, customers paid and they received the machines and very happy. What you see, what you get.


FAQs:1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


About AGA Machinery:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in U.S.A, Canada, Europe, Mid East, Egypt, India, etc.
AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. Our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers obtain the best return on the investment. We care about customers because by choosing us you are giving us a chance to make your machine more productive that also makes your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

Key words:
Granite bridge saw, stone bridge saw, bridge saw, marble bridge saw, granite saw, stone saw, stone sawing, slab saw, granite cutting machine, cnc machine, cnc cutting machine, marble cutting machine, stone cutting machine, bridge cutting machine, tile cutter,  etc.


Should you need more information please do not hesitate to contact us, your dream machine is closer than you think.
