• Model NO.：JC7030RP
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Type：3 Axis Stone Column Engraver Carving CNC Machine
• Working Size：700mm Diameter, 3000mm Length
• One Head with Spindle：for Engraving
• One Head with Saw Disc：for Rough Machining
• Control System：DSP,Ncstudio,Syntec
• Motor：Stepper,Servo Motor
• Cooling System：Double Water Cooling
• Oil System：Yes
• Option：Polishing Pad
• Transport Package：Protected by Film and Fastened with Metal Wires
• Specification：customized
• Trademark：CHAODA
• Origin：China

Basic Info.

Model NO. JC7030RP Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Type 3 Axis Stone Column Engraver Carving CNC Machine Working Size 700mm Diameter, 3000mm Length One Head with Spindle for Engraving One Head with Saw Disc for Rough Machining Control System DSP/Ncstudio/Syntec Motor Stepper/Servo Motor Cooling System Double Water Cooling Oil System Yes Option Polishing Pad Transport Package Protected by Film and Fastened with Metal Wires Specification customized Trademark CHAODA Origin China

Product Description

3 axis stone column engraver carving cnc router machine

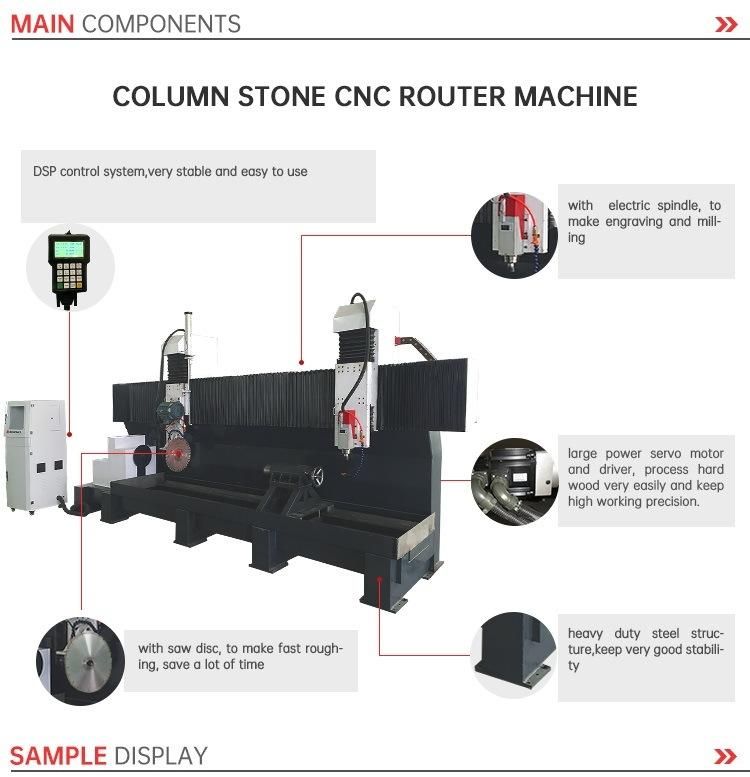

• Heavy duty steel structure, keep machine with very good stability.
• Adopt good quality machine parts,to make machine with high performance and durability.
• With electrical spindle, to make engraving.
• With saw blade unit, to make fast roughing/grooving.
• The big rotary device can process different kinds of 3d roman columns corbel pilasters cylinders pillars.
• The working size can be customized according to customers' specific requirements.
• There are 4 axis/5 axis same machines for choosing.

Model No.	JC7030RP
Lathe bed	Heavy duty steel structure
Working size	700mm diameter, 3000mm length
Spindle power	5.5 /7.5 /11KW
Spindle rotating	12000 /18000 /24000rpm
Max travelling speed	30m/min
Max working speed	15m/min
Control system	DSP/Nsctudio
Motor	Stepper/Servo
Saw blade unit	yes
Auto oil system	yes
Voltage	AC380v,3 phase,50/60HZ

 It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.

Application: Marble Granite Stone Roman Columns Corbel Pilasters Cylinders Pillars...






1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
