• Model NO.：QSQ-2500
• Control：PLC
• Certification：ISO, CE
• Output：7sqm Per Hour
• Transport Package：40FT Hq Container
• Trademark：Wanlong
• Origin：Quanzhou, China
• HS Code：8464101000
• Production Capacity：240set , Year

Basic Info.

Model NO. QSQ-2500 Control PLC Certification ISO, CE Output 7sqm Per Hour Transport Package 40FT Hq Container Trademark Wanlong Origin Quanzhou, China HS Code 8464101000 Production Capacity 240set / Year

Product Description

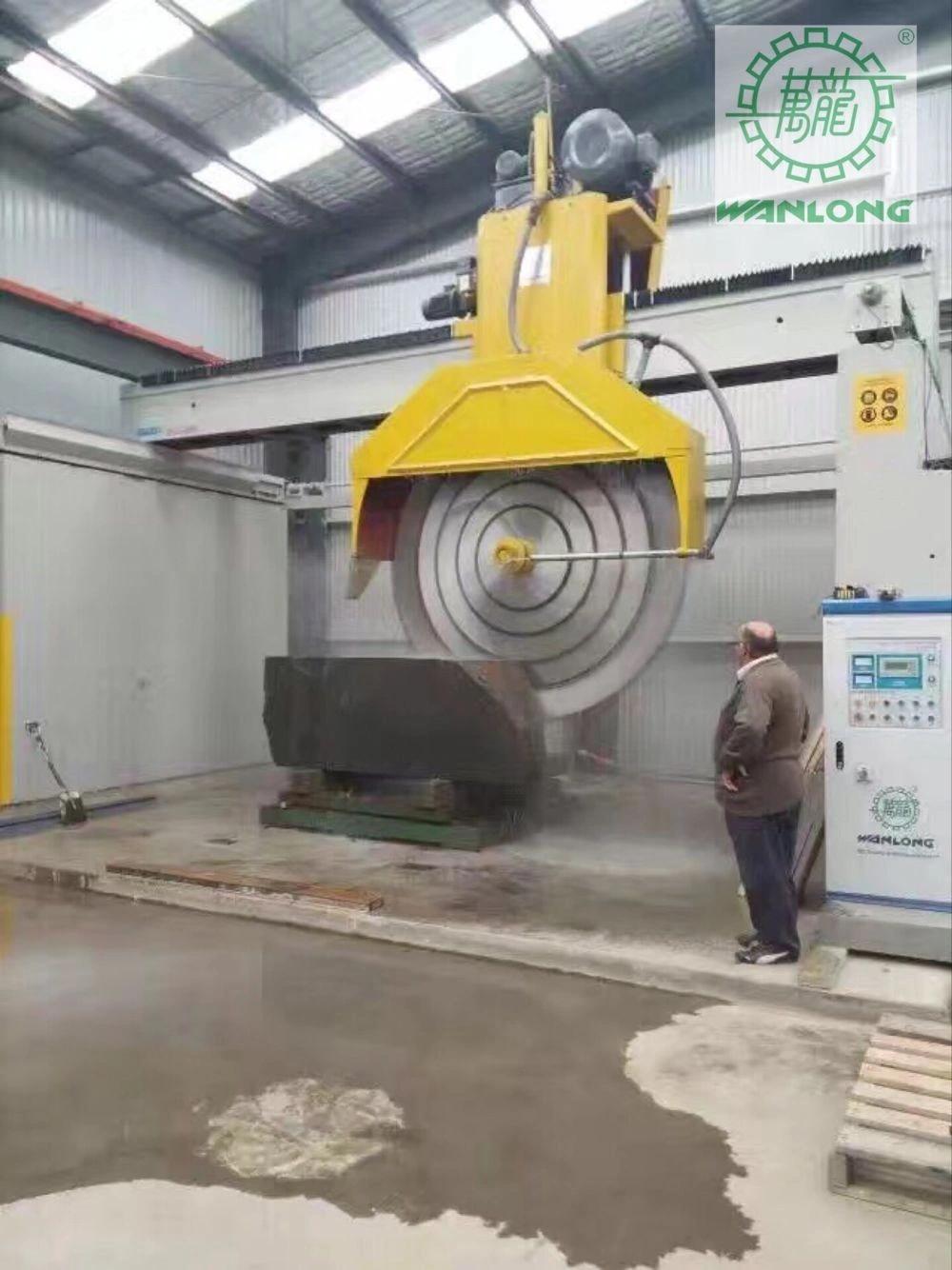

High Efficiency Wanlong Mulitblade Bridge Block Cutting machine for Granite


QSQ-2200 Stone Machine / Block Cutting Machine
1)Bridge Multi blade Cutting Machine
2)Automatic Granite Block Cutting machine
4)High Productivity & multi disc machine

		QSQ-2200	QSQ-2500	QSQ-3000
Max.diameter of blade	mm	2200	2500	3000
Max.No. of blades	pc	8	5	1
Recommended Blade Combination	mm	2200 2000 1800 1600 1400 1200 1000 800	2500 2000 1600 1200 800
Recommend saw blade thickness	mm	6.5	32	8.0
Main motor power	KW	45	45	37
Max.Cutting size(L x W x H)	mm	3200*1800*950	3000*1800*1100	2500*1800*1350
Overall dimensions (L x W x H)	mm	7300*3800*5500	7300*3800*5500	7300*3800*6100
Water consumption	m3/h	6	6	6
Approximate weight	Kg	10000	11000	12000

QSQ-2200 mulitblade block cutting machine combines different diameters of blades working, and hydraulic lifting system four columns type, make the machine with high cutting efficiency. The cross beam moves for feeding and slicing, so that the table for block is not necessary. Heavy duty structure, logical control system easy operation together with "Wanlong" Blade give high production and make the finished slabs with flat surface.

Strong Casting Iron crossbeam and vertical beam to avoid distortion after long-term use

Dustproof design of the slide track ensures the precise guide movement & long lifespan

Double V-Shape guide rails enhance the smooth cutting and movement

Blade slicing by crossbeam back and forward encoder

Optional Motor Power: 37kw, 45kw and 55kw are available upon request. SIEMENS BRAND available!!

Touch Sensitive Panel  Easy for worker of not high education to operate

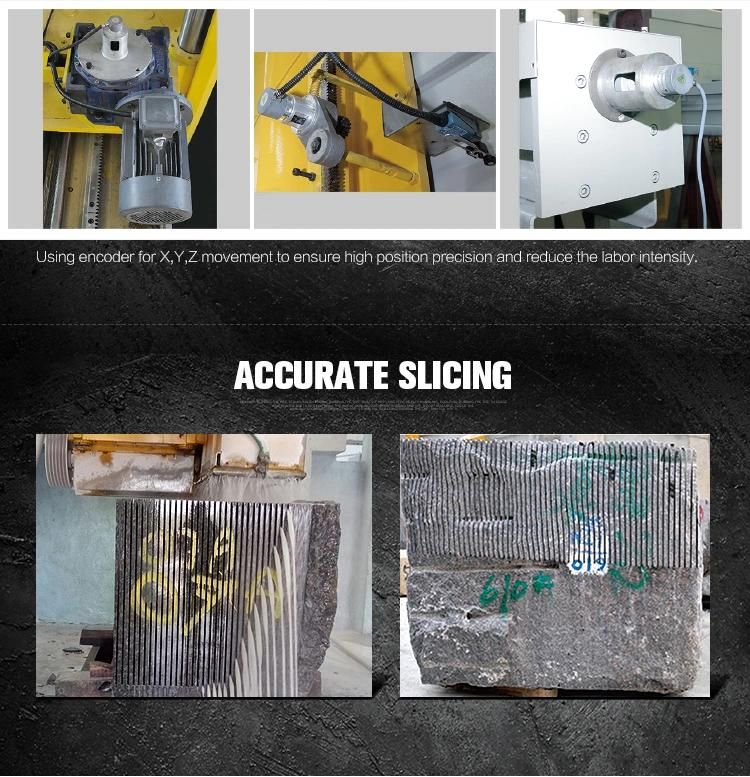

with encoder on machine's 3 axis, X, Y,Z-real Automatic

locking system on vertical beam protects the machine collaption

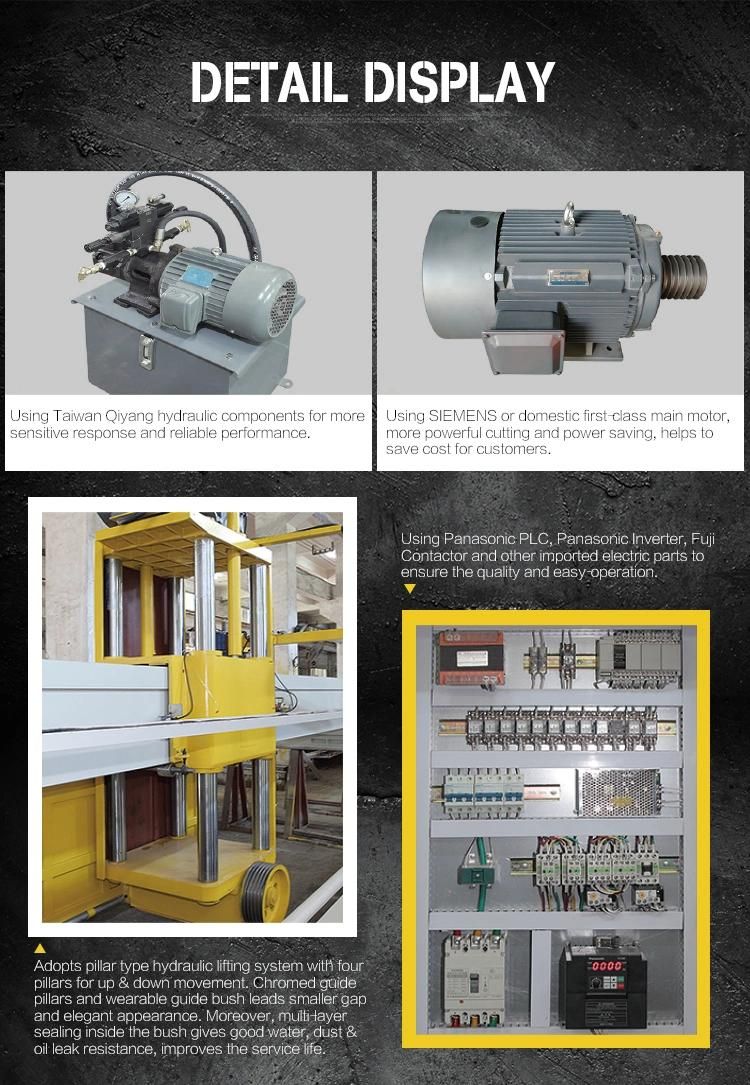

Leading system available in hydraulic-fast blade lifting

Imported Electronic parts: PLC and frequency inverter- Panasonic; relay-Fuji, Mitsubishi air switch etc.



For more informaton about the QSQ series mulitblade bridge block cutter, pls feel free to contact us
