• Model NO.：QSQ-1200A
• Control：PLC
• Certification：ISO, CE
• Lifty Systeen：Hydraulic for Pillar
• Transport Package：40fthq for One Set
• Trademark：wanlong
• Origin：Quanzhou, China
• Production Capacity：100sets Per Year

Basic Info.

Model NO. QSQ-1200A Control PLC Certification ISO, CE Lifty Systeen Hydraulic for Pillar Transport Package 40fthq for One Set Trademark wanlong Origin Quanzhou, China Production Capacity 100sets Per Year

Product Description

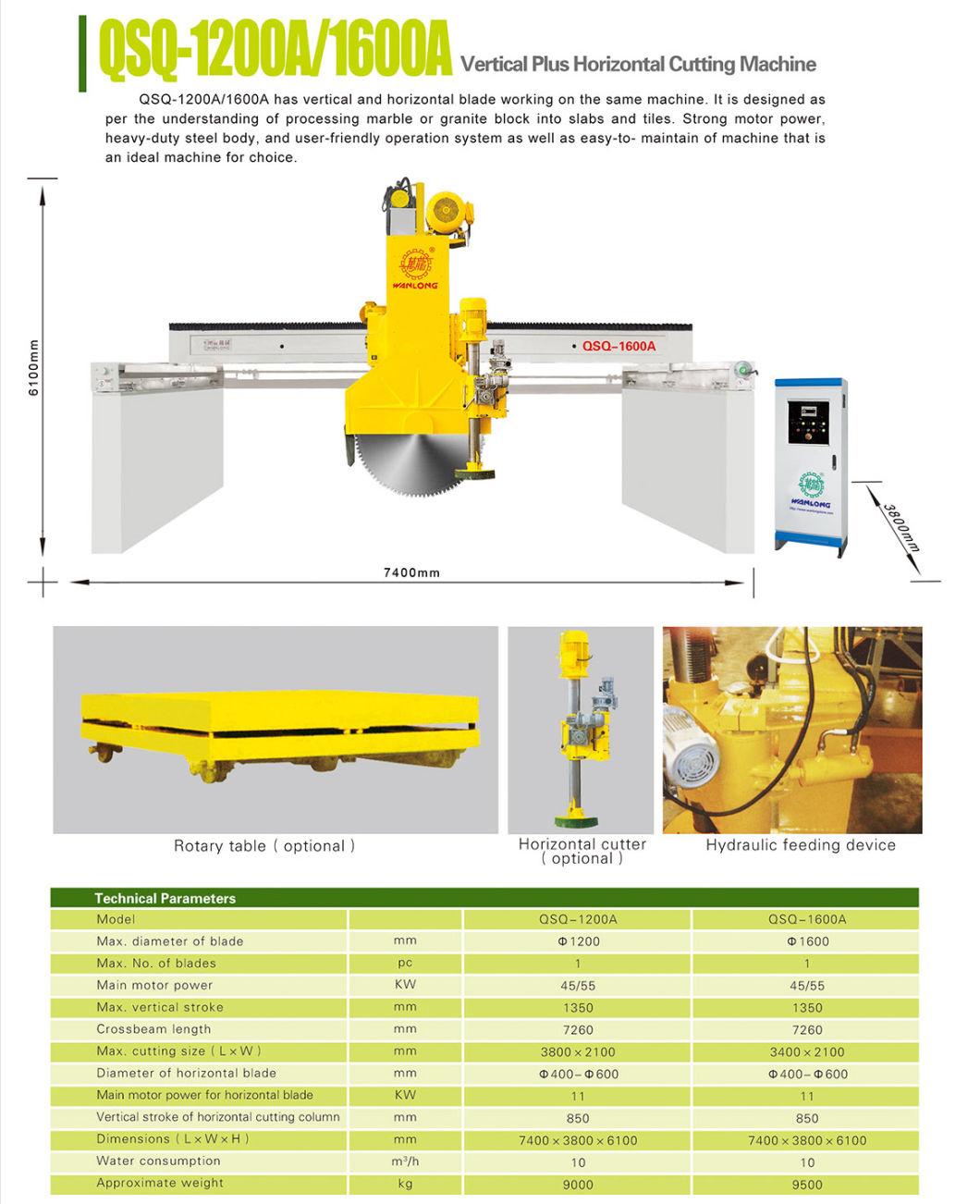

Vertical Plus Horizontal Cutting Machine, block cutting machine, block cutter for granite and marble

Model QSQ-1200A


Max. diameter of blade	mm	1200	1600
Max. No. of blades	pc	1	1
Main motor power	KW	45/55	45/55
Max. vertical stroke	mm	1350	1350
Crossbeam length	mm	7400	6500
Max. cutting size ( L x W x H)	mm	3200*1800*950	3000*1800*1100
Diameter of horizontal blade	mm	400-600	400-600
Main motor power for horizontal blade	KW	11	11
Vertical stroke of horizontal cutting column	mm	850	850
Dimensions (L x W x H )	mm	7400*3800*6100	7400*3800*56100
Water consumption	m³/h	6	6
Approximate weight	Kg	9000	9500



          This machine is for cutting block into slabs with a horizontal cutting device. One of its main features is that trolley is not necessary when cutting. You can lie the block on the ground, and the processing is smooth, reliable and no shaking.



Owing to the special design, the function of slab slicing is achieved by the crossbeam movement on the side beams. This is totally different from other machines on which the slab slicing is by trolley feeding. Therefore precise cutting and less maintenance are available by this machine.

Feeding trolley with rails is available upon request.



Feature

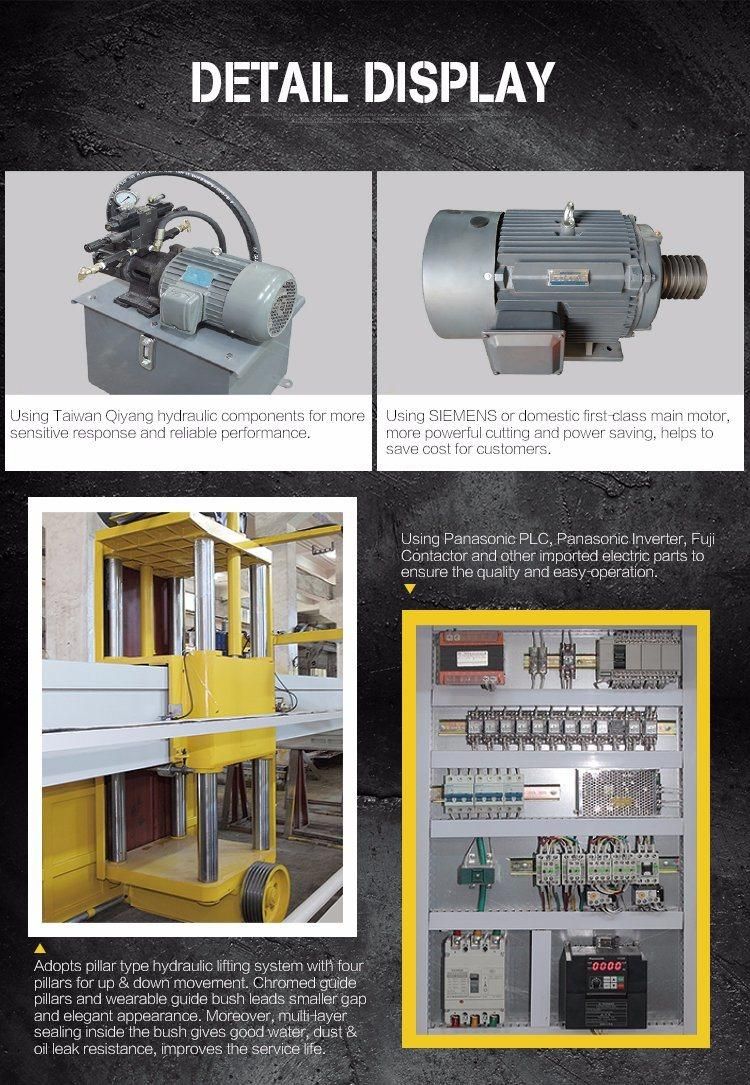

Mechanical system

l          Wide-span crossbeam of bridge structure, large block cutting available

l          Crossbeam is made of strong cast iron to avoid distortion after long-term use

l          Dustproof design of the slide track ensures the precise guide movement & long lifespan

l          Double V-Shape guide rails enhance the smooth cutting and movement

l          Precise movement of cutting head in horizontal direction by precision rack & gear

l          Guide rail on the crossbeam is in oil bath and protected from water and dust

Electrical system

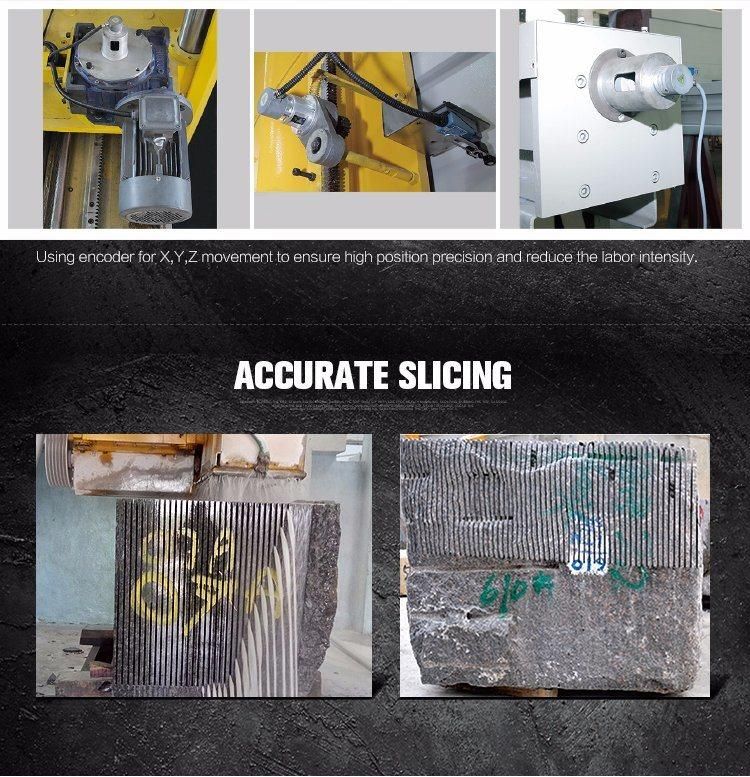

l          Cross movement of the cutting head is driven by motor equipped with OMRON rotary encoder by which the precision is guaranteed

l          Installed withPANASONIC frequency transducer and PLC, programmable and fully automatic, stability and flexibility guaranteed

l          Friendly human-machine interface design, easy operation

l          C.E. Certificate
