• Model NO.：QSQ-1200A,1600A
• Control：Artificial
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Model：Qsq-1200,1600A
• Max.Cutting Size：3400*2100
• PLC：Panasonic
• Main Motor：Simense
• Llift System：Four Columns Hydraulic Lifting
• Automatic：Full Automatic
• Function：Cutting Stone Block
• Origianl：China
• Voltage：380,440V and Others
• Warranty：12 Month
• Transport Package：Saeworthy Package
• Specification：7400*3800*6100mm
• Trademark：WANLONG
• Origin：China
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. QSQ-1200A/1600A Control Artificial Certification API, CCC, UL, SONCAP, GOST, ISO, CE Model Qsq-1200/1600A Max.Cutting Size 3400*2100 PLC Panasonic Main Motor Simense Llift System Four Columns Hydraulic Lifting Automatic Full Automatic Function Cutting Stone Block Origianl China Voltage 380/440V and Others Warranty 12 Month Transport Package Saeworthy Package Specification 7400*3800*6100mm Trademark WANLONG Origin China Production Capacity 10 Sets Per Month

Product Description

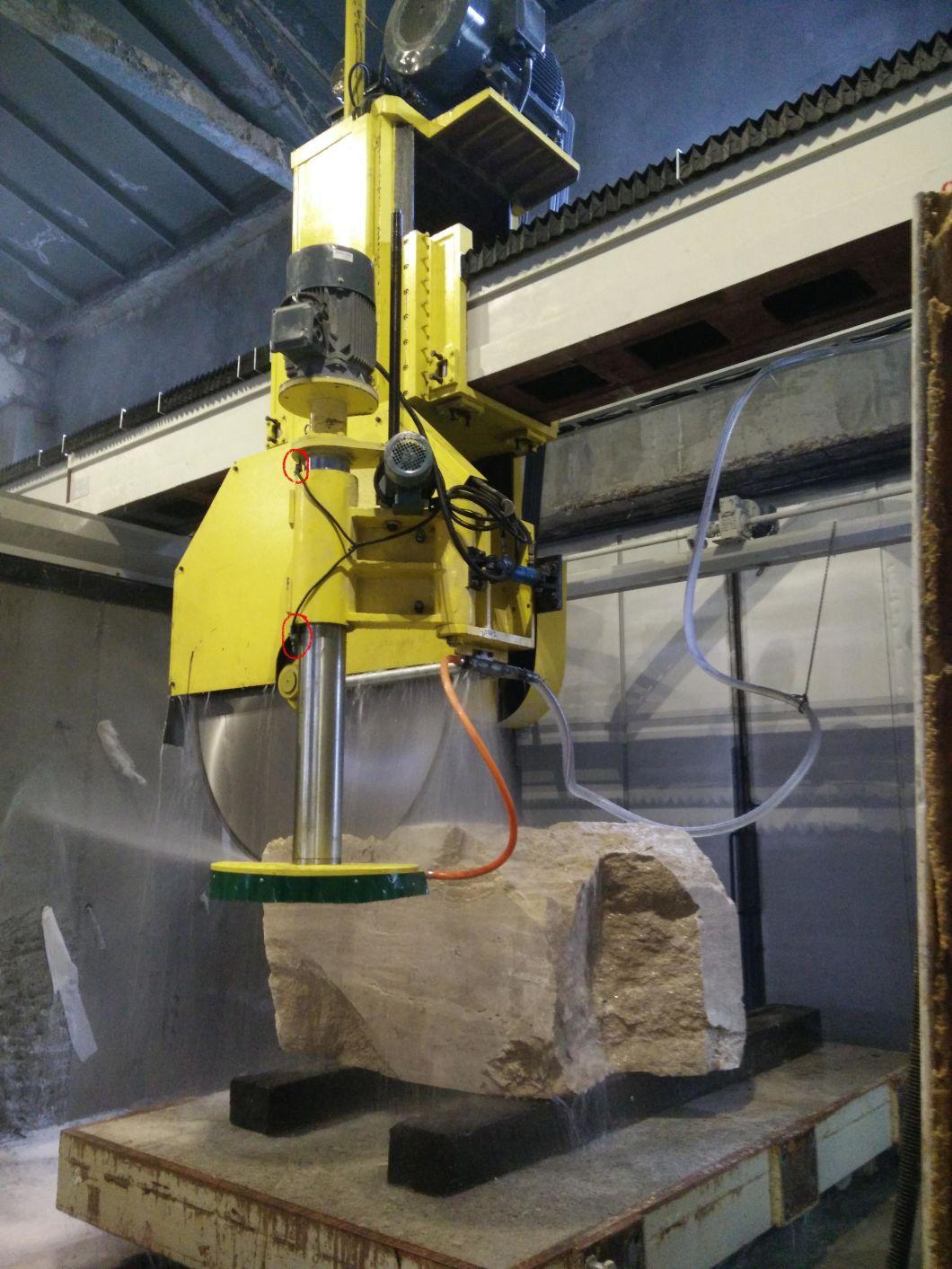

QSQ-1200A/1600A Vertical Plus Horizontal Cutting Machine

PRODUCT FEATURES:

QSQ-1200A/1600A has vertical and horizontal blade working on the same machine It is designed as per the understanding of processing marble or granite block into slabs and tiles Strong motor power,heavy-duty steel body, and user-friendly operation system as well as easy-to- maintain of machine that is an ideal machine for choice.


Max. diameter of blade	mm	1200	1600
Max. No. of blades	pc	1	1
Main motor power	KW	45/55	45/55
Max. vertical stroke	mm	1350	1350
Crossbeam length	mm	7400	6500
Max. cutting size ( L x W x H)	mm	3200*1800*950	3000*1800*1100
Diameter of horizontal blade	mm	400-600	400-600
Main motor power for horizontal blade	KW	11	11
Vertical stroke of horizontal cutting column	mm	850	850
Dimensions (L x W x H )	mm	7400*3800*6100	7400*3800*56100
Water consumption	m³/h	6	6
Approximate weight	Kg	9000	9500

This machine is for cutting block into slabs with a horizontal cutting device.
One of its main features is that trolley is not necessary when cutting.
You can lie the block on the ground, and the processing is smooth, reliable and no shaking.

Owing to the special design, the function of slab slicing is achieved by the crossbeam movement on the side beams. This is totally different from other machines on which the slab slicing is by trolley feeding.
Therefore precise cutting and less maintenance are available by this machine.
Feeding trolley with rails is available upon request.

Feature

Wide-span crossbeam of bridge structure, large block cutting available

Crossbeam is made of strong cast iron to avoid distortion after long-term use

Dustproof design of the slide track ensures the precise guide movement & long lifespan

Double V-Shape guide rails enhance the smooth cutting and movement

Precise movement of cutting head in horizontal direction by precision rack & gear

Guide rail on the crossbeam is in oil bath and protected from water and dust


Electrical system

Cross movement of the cutting head is driven by motor equipped with OMRON rotary encoder by which the precision is guaranteed.

Installed withPANASONIC frequency transducer and PLC, programmable and fully automatic, stability and flexibility guaranteed.

Friendly human-machine interface design, easy operation.

C.E. Certificate.

Packing & Delivery
Sea worthy packaging, fully wrapped with waterproof membrane and air bubbles
Two units in one 40' GP container
Lead Time: 25 days
