• Model NO.：PF1315
• Finished Surface：Hole Process
• Certification：CE, ISO
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Life
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：CE, ISO
• Trademark：Zenith
• Origin：shanghai
• HS Code：8474209000
• Production Capacity：40-850tph

Basic Info.

Model NO. PF1315 Finished Surface Hole Process Certification CE, ISO Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Life Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification CE, ISO Trademark Zenith Origin shanghai HS Code 8474209000 Production Capacity 40-850tph

Product Description

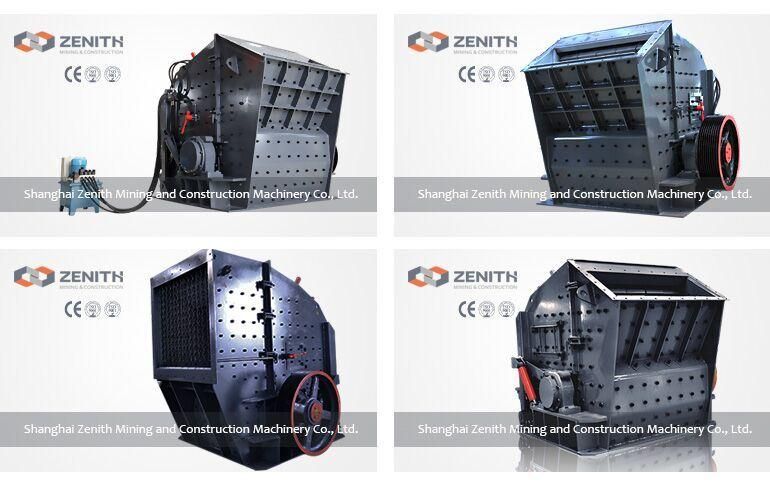

PF1315 Impact Crusher/Rock Crusher with Large Capacity

Impact crusher is a new optimized product that our company has adopted foreign and domestic advanced technology. This series of impact crusher can handle various kinds of materials which is below 350mm, and whose compression strength is below 320Mpa. Impact crusher has the characters of big crushing rate, high crushing efficiency, easy maintenance and the like. Its end particles are cubic forms, which is the ideal processing equipment adopted in senior highway pavement and build utilities. Impact crusher is widely used in stone crushing sphere of highway construction, water conservancy project, building and the like as a result of its superior performance.

Structure features of impact crusher

1. Big output opening, high crushing cavity, suitble in high hardness, big pieses and less power;
2. The gap in the impact and the hammer plate can be adjusted, efficient control the output feed fineness, the final production has good shape;
3. Tight strucure, good equipment rigidity, big rotational inertia;
4. High hammer plate, big impact resistance and wear resistance.

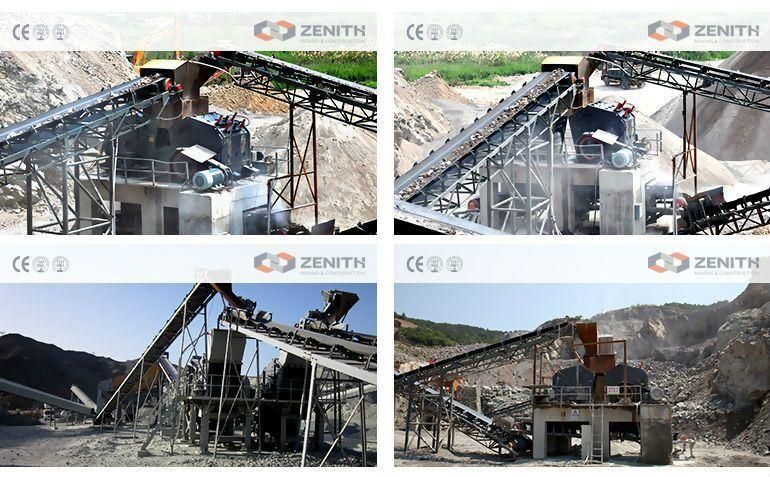

Application of impact crusher

This series of impact crusher are optimized after adopting advanced techniques. Impact Crusher can crush granite, basalt, bluestone, etc the diameters of which are from 100mm to 500mm, and its crushing compression strength is not more than 320Mp. Stone impact crusher features: Big reduction ratio, high crushing efficiency, and convenient maintenance. The final product is desirable device for aggregation used in highway and railway surface and water and electricity industry.

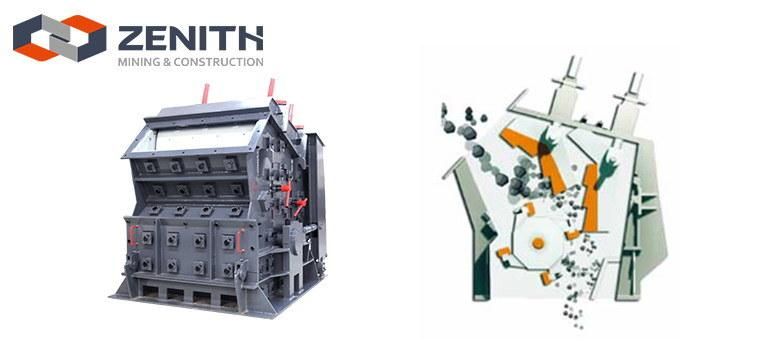

Working Principle of impact crusher

Impact crusher is the machine which breaks materials using the impact energy. The rotor rotates of our mobile crusher with a high speed driven by power motor when the machine is working. When the materials get into hammer effect area, they are impacting to break with the hammer on the rotor and then threw to the impacting position to take another crushing. After that they spring back to hammer impacting area from impact wrist plate to take crushing again. This procedure repeats itself. The materials get into 1, 2, 3 impact cavity from big to small to take repeated crushing. When the material is crushed to the required size, it's discharged from the outlet. The material's discharging size and shape can be changed through adjusting the gap between impact frame and rotator.

Impact Crusher technical data:

Model	Rotor Φ×L(mm)	Feed Opening(mm)	Max Feeding(mm)	Capacity(t/h)	Power(kw)	Motor Model	Machine Size(mm)
PF1010	Φ1000×1050	400×1080	350	50-80	4-75	Y280S-4/75	2455×2086×2800
PF1210	Φ1250×1050	400×1080	350	60-120	6-110	Y315L1-6/110	2590×2050×2810
PF1214	Φ1250×1400	400×1430	350	80-160	6-132	Y315L2-6/132	2590×2400×2810
PF1315	Φ1300×1500	860×1520	350	120-260	6-200	Y355M3-6/200	2930×2760×3050
