Zenith New Type Mobile Quarry Crusher with Large Capacity
Shanghai Zenith Mineral Co., Ltd.- Type:Jaw Crusher
- Application:Construction, Mineral Industry, Stone Industry
- Drive:Hydraulic
- Crushing Style:Grinding & Impact
- Compressive Strength (For Crushing):>300MPA
- Crushing Degree:Intermediate Crusher
Base Info
- Model NO.:K series
- Finished Surface:Cut Off Tool
- Certification:CE, ISO, GOST
- Condition:New
- Color:Iron Grey
- Spare Parts Supply:for Whole Year
- Test&Installation:Engineer Assigned
- After-Sale Service:for Whole Using Life
- Export Markets:Global
- Transport Package:Container, Nude Packs, in Bulk
- Specification:ISO9001: 2000
- Trademark:Zenith
- Origin:Shanghai Zenith, China
- HS Code:8474209000
- Production Capacity:40-850tph
Description
Basic Info.
Model NO. K series Finished Surface Cut Off Tool Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 40-850tphProduct Description

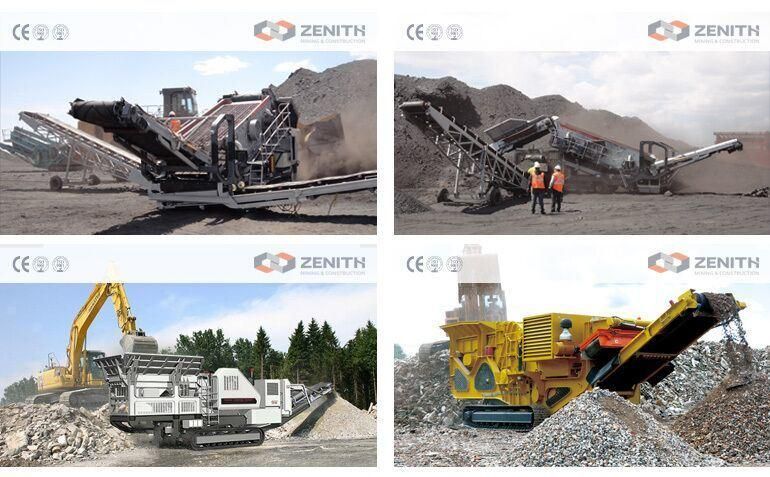

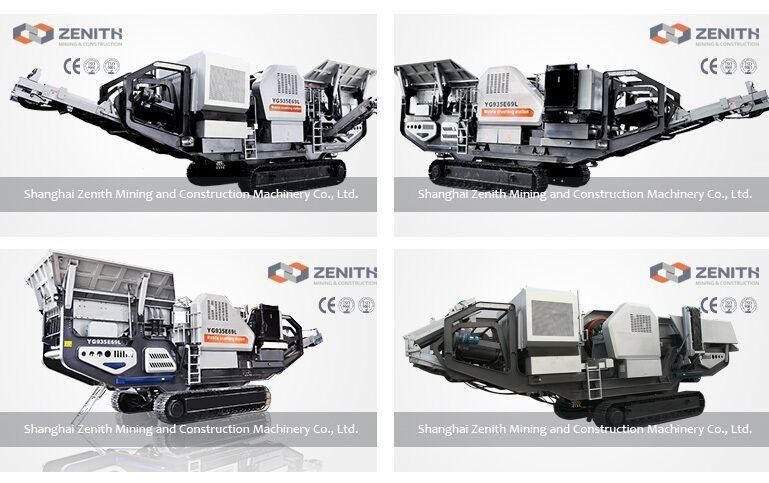

mobile quarry crusher : The mobile quarry crusher is developed according to novel series stone crushing equipment's design idea, the adaption of ship form structure lowers the chassis; reduce the weight and volume of the plant; and makes it easy for turning and transportation; the fashionable design and standardized mass production fully meet customers' requirements. mobile quarry crusher concept is fully adaptable to all mobile crushing needs, it set up a new range of business opportunities for contractors, quarry operators, recycling and mining applications. It can eliminate the obstacles of the crushing places and circumstances, and offer the high efficient and low cost project plants for the client. To the client, it is the best choicemobile quarry crusher Features: 1.Hydraulic-drive feeding plate is convenient and reliable. 2.Easy to control by equipping with high-tech LCD touch screen and PLC control system. 3.Feeder grates pre-screen scrap and excurrent material can be conveyed by side belt or main belt either. 4.Belt conveyors and Magnetic iron separator are easy to use. 5.Employing fully rigid boat structure, the chassis features high strength, low contact pressure, good passing ability(easy transpotation) and good adaptability to hilly and marsh areas. 6.High pulling forque travel motor with mature techniques offers strong driving force and high reliability. The use of all-walt variable hydraulic technique in the travel system ensures high performance, reliability and utilization of the motor. The main hydraulic devices like pump, valve are imported from Japan. 7.Operating system with imported direct servo technique can be easily and precisely controlled and tavel in a infinite variable speed.
mobile quarry crusher Specifications:
Model | LD-PF1210 | LD-PF1214 | LD-PFW1214 | LD-PFW1315 |
Feeder | GZD-960x3800 | GZD-960x3800 | GZD-960x3800 | GZD-1100x4200 |
Impact Crusher | PF1210 | PF1214 | PFW1214 | PFW1315 |
Main Conveyor | B800x8.5 M | B800x8.5 M | B800x8.5 M | B1000x9 M |
Height of Main Conveyor (mm) | 3200 | 3200 | 3500 | 3500 |
Side Conveyor(Optional) | B450x3 M | B450x3 M | B450x3 M | B500x3.5 M |
Height of Side Conveyor (mm) | 2800 | 2800 | 2800 | 3000 |
Generator (KW) | 200 | 250 | 300 | 380 |
Transport Length (mm) | 11500 | 11700 | 11800 | 13500 |
Transport Width (mm) | 2900 | 2900 | 2900 | 3200 |
Transport Height (mm) | 3650 | 3650 | 3950 | 4160 |
Total Weight (t) | 39 | 40 | 43 | 60 |
