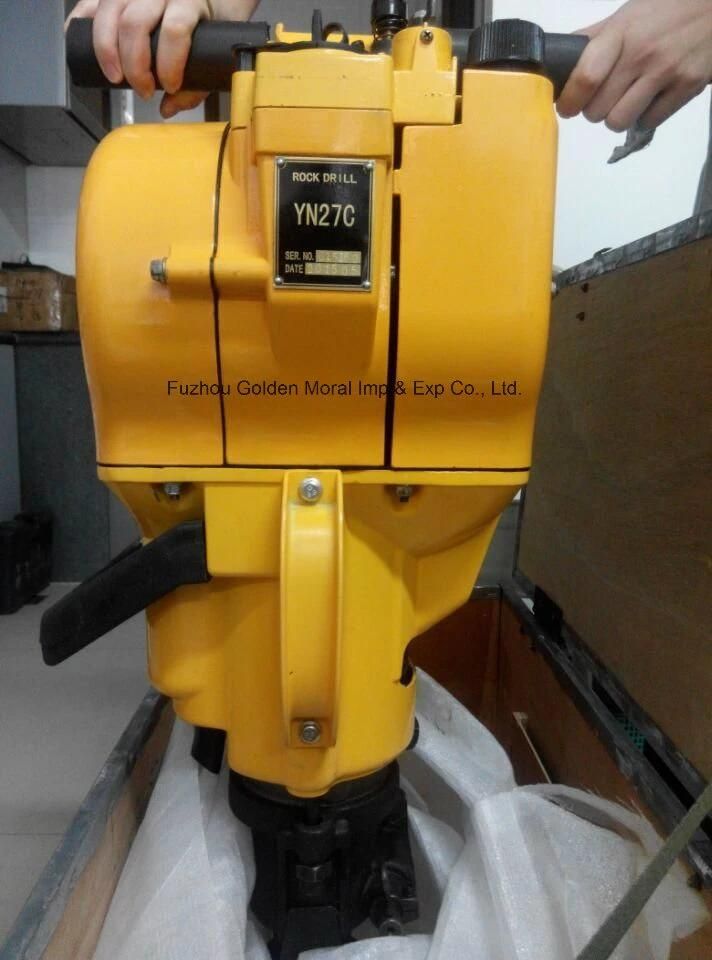

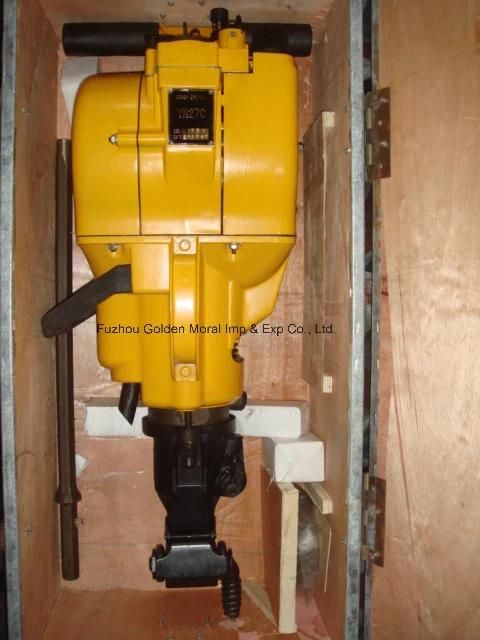

Yn 27c Combustion Type Rock Drill Yn27t/Yn27j/Yn27A

Fuzhou Golden Moral Imp & Exp Co., Ltd.
  • Type：Optional
  • Drill Direction：Horizontal
  • Depth of Drilling：0-100 M
  • Drilling Speed：0-50 M,H
  • Automation：Automatic
  • Layout：Optional

Base Info

  • Model NO.：YN27 C,YN27T,YN27J,YN27A
  • Control：Optional
  • Precision：Normal Precision
  • Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
  • Certification：CE
  • Certificate：CE
  • Model：Yn27 C,Yn27t,Yn27j,Yn27A

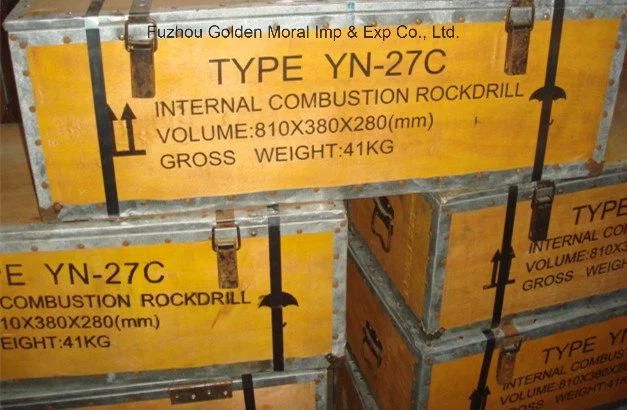

  • Transport Package：Wooden Case and Cartons
  • Specification：CE
  • Trademark：GM
  • Origin：China
  • Production Capacity：10000,Year

Description

TECHNICAL SPECIFICATIONS Weight of main machine 27 kgType of carburetor Hand needle valve, no floating type Ignition system Controllable silicon contactless system Displacement of engine piston 185 cm3Rotating speed of engine ≥2450 r/minRotating speed of drill rod ≥200 r/minEnd of drill rod dimensions Hexagonal 22x108 mmMax drilling depth 6 mTank capacity 1.14 LDrilling speed ≥250mm/minMixture ratio of gasoline and lubricating oil(in volumes) 12:1Clearance of spark plug 0.5--0.7 mm
