Well Tech High Resistance Jaw Crusher From Shanbao
Shenzhen DENP Industrial Co., Ltd.- Type：Jaw Crusher
- Drive：Electric
- Crushing Style：Extruding
- Compressive Strength (For Crushing)：>300MPA
- Crushing Degree：Intermediate Crusher
- Certification：CE, ISO
Base Info
- Model NO.：PE
- Condition：New
- Color：Customized
- Transport Package：Wooden Case or Pallet, Suitable for Sea Transport
- Specification：Customized
- Trademark：DENP
- Origin：Shanghai
- HS Code：84742090
- Production Capacity：600sets,Y
Description
Basic Info.
Model NO. PE Condition New Color Customized Transport Package Wooden Case or Pallet, Suitable for Sea Transport Specification Customized Trademark DENP Origin Shanghai HS Code 84742090 Production Capacity 600sets/YProduct Description

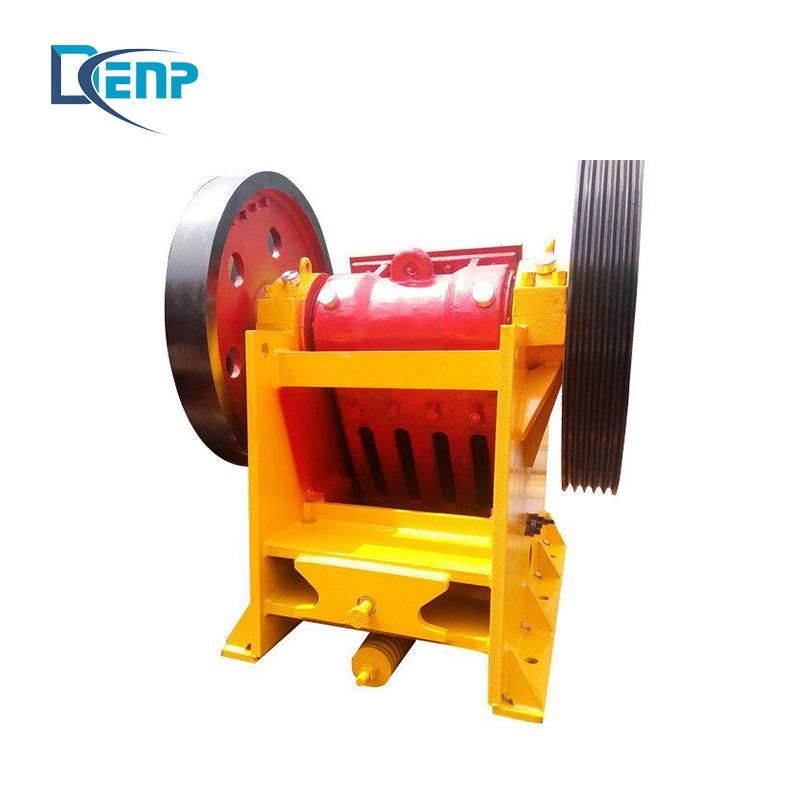

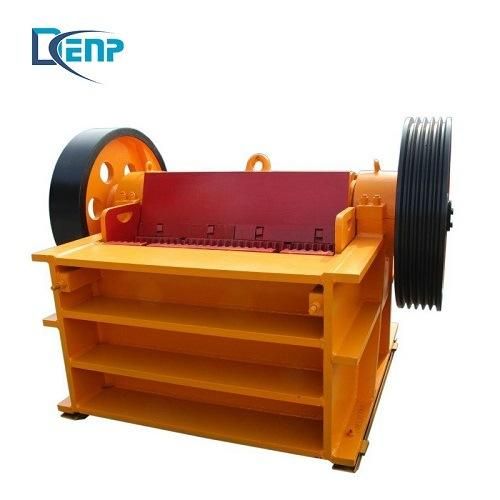

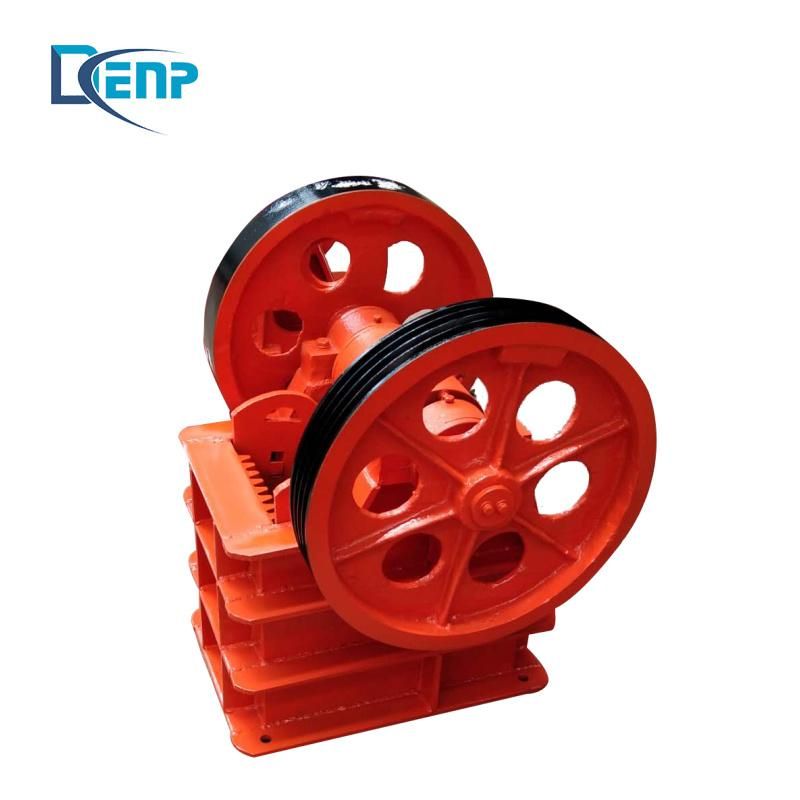

Product Description:PE Series Jaw Crusher has the features of high crushing, even product size ratio, simple structure, reliable operation, easy maintenance, low operation cost etc.. It is widely used in mining, metallurgy, construction material, highway, railway etc. for crushing various materials with compression strength not more than 320Mpa. It is normally used as the first step crusher in the complete crushing line. Jaw crusher from Mation with features of Simple structure and reliable operation, Easy maintenance and low operating cost will help you with a good solution on starting the line.
Features and values:
High reliability
Both casting and welded frame construction
Top crushing performance
Wedge setting adjustment
Fast and simple maintenance
Easy and less costly to install
Excellent total crushing economy
Excellent suitability
Highly versatile: Ready and able to crush all your Stones in stationary or semi-mobile installations.
Principal technical data;
| Model | Feed inlet size (mm) | Max inlet size (mm) | Capacity (t/h) | Electric power (kw) | Overall size LxWxH (mm) | Weight (t) |
| PE150×250 | 150×250 | 125 | 1-5 | 5.5 | 875×758×850 | 0.81 |
| PE250×400 | 250×400 | 210 | 5-20 | 15 | 1450×1315×1296 | 2.8 |
| PE400×600 | 400×600 | 340 | 25-65 | 30 | 1565×1732×1586 | 6.5 |
| PE500×750 | 500×750 | 425 | 45-80 | 55 | 1892×2054×1853 | 10.1 |
| PE600×900 | 600×900 | 500 | 70-150 | 55-75 | 2520×1840×2303 | 15.5 |
| PE750×1060 | 750×1060 | 630 | 130-260 | 110 | 2620×2302×3110 | 28 |
| PE900×1200 | 900×1200 | 750 | 220-500 | 110-132 | 3789×2826×3025 | 50 |
| PE1000×1200 | 1000×1200 | 850 | 250-700 | 132 | 3889×2826×3025 | 57 |
| PE1200x1500 | 1200×1500 | 1020 | 400-1000 | 160-220 | 4200×3750×3820 | 100.9 |
