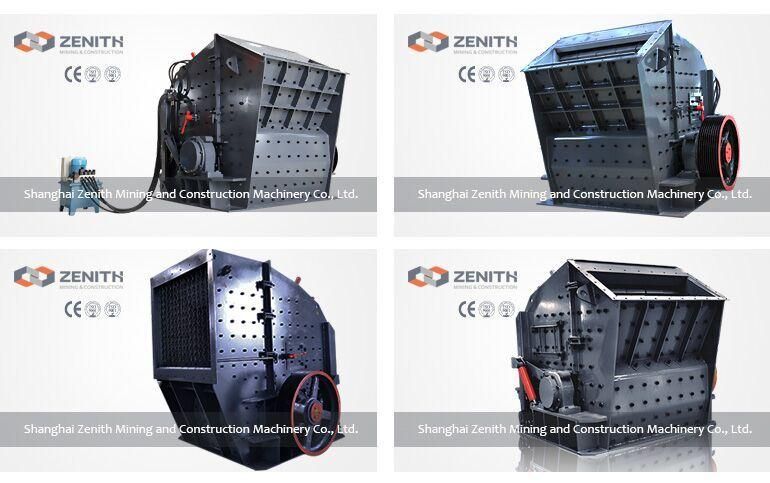

Zenith High Performance Stone Impact Crusher Price (PFW1214III)
Shanghai Zenith Mineral Co., Ltd.- Type:Impact Crusher
- Application:Construction, Mineral Industry, Stone Industry
- Drive:Electric
- Crushing Style:Impact
- Compressive Strength (For Crushing):>300MPA
- Crushing Degree:Fine Grinding Machine
Base Info
- Model NO.:PFW Series
- Finished Surface:Hole Process
- Certification:CE, ISO, GOST
- Condition:New
- Color:Iron Grey
- Spare Parts Supply:for Whole Year
- Test&Installation:Engineer Assigned
- After-Sale Service:for Whole Using Life
- Export Markets:Global
- Transport Package:Container, Nude Packs, in Bulk
- Specification:ISO9001: 2000
- Trademark:Zenith
- Origin:Shanghai Zenith, China
- HS Code:8474209000
- Production Capacity:40-850tph
Description
Basic Info.
Model NO. PFW Series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 40-850tphProduct Description
Zenith high performance Stone impact crusher price ( PFW1214III )1. Descriptions of impact crusher price : impact crusher price is the world's widely used crusher, for mineral processing, chemical, cement, construction, refractories, ceramics, glass and other industrial sectors in the broken and broken bits for a variety of medium hardness materials. My company's product of Crusher is a combination of domestic and foreign sand and gravel mining industry , the specific conditions developed, the latest generation of coal process plant. Their product's size can be adjusted, broken standard variety. The family of devices can dealing with the material with the side length 500mm, not more than 350Mpa anti-pressure strength, is an ideal aggregate processing equipment in the senior road surface and hydropower building

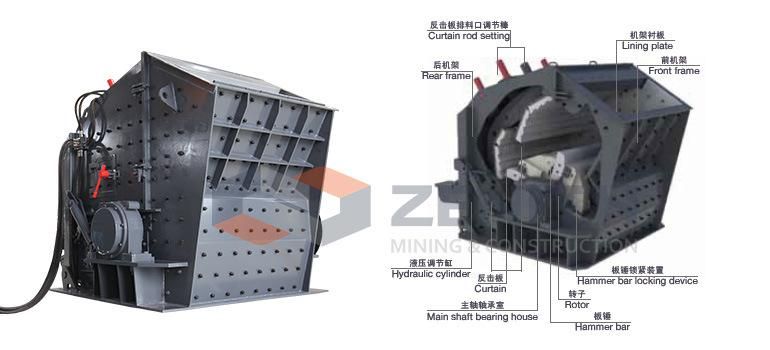

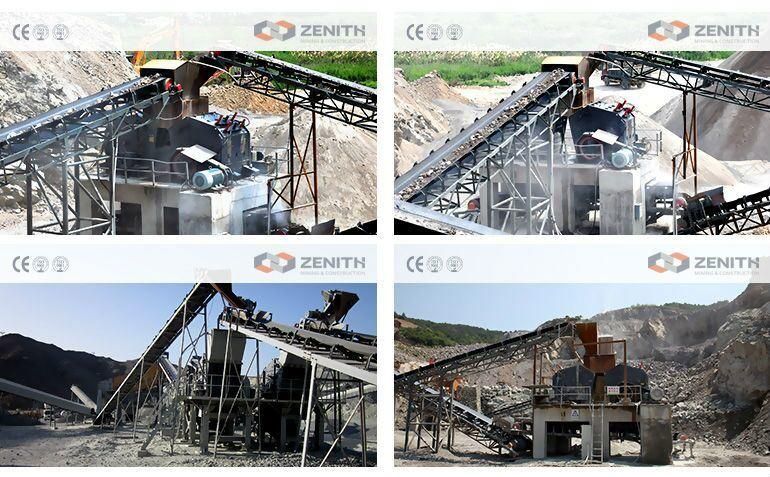

2. Application of impact crusher price: The impact crusher price is used for crushing coal , various rocks, constructing railway, expressway roadbed and dam area of power station, producing artificial dinas for the building industry, etc.impact crusher price is used to crush coarse, medium and fine stones whose compressive strength is no more than 300MPa and Moh's hardness is lower than the 8th degree, such as limestone, basalt, granite, concrete, slag, cement block, etc. 3. Working Principle of impact crusher price : This impact crusher price with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. Mining machinery from China manufacturer best impact crusher price
4. Advantages of impact crusher price: 1. Counter-plate and plate hammer clearance can be adjusted easily and effectively control discharge particle size, particle shape well;2. Unique counter tooth plate, high-chrome plate hammer, impact resistance, abrasion resistance,large of impact;3. No keying, the overhaul is convenient,the economy is reliable. 4. Comprehensive of Broken-function, high productivity,small of mechanical abrasion, high of the overall efficiency;5. A reasonable board hammer structure, with advantages of faster loading and unloading, multi-transposition, etc., can greatly shorten the time for changing the board hammer.
impact crusher price parameters:
Two-curtain cavity hydraulic impact crusher
Model | Rotor Φ×L (mm) | Feed Opening (mm) | Max Feeding (mm) | Capacity (t/h) | Power (kw) | Motor Model | Machine Size (mm) |
PFW1214II | 1150×1400 | 1100×1430 | 500 | 130-200 | 4-132 | Y315M-4/132 | 2400×2310×2550 |
PFW1315II | 1300×1500 | 1200×1530 | 600 | 180-320 | 4-160 | Y315L1-4/160 | 2700×2570×2800 |
PFW1318II | 1300×1800 | 1200×1830 | 700 | 240-400 | 4-200 | Y315L2-4/200 | 2700×2870×2800 |
PFW1415II | 1400×1500 | 1450×1530 | 800 | 240-450 | 4-200 | Y315L2-4/200 | 3000×2700×3070 |
Model | Rotor Φ×L (mm) | Feed Opening (mm) | Max Feeding (mm) | Capacity (t/h) | Power (kw) | Motor Model | Machine Size (mm) |
PFW1214III | 1150×1400 | 570×1430 | 250 | 90-170 | 4-132 | Y315M-4/132 | 2550×2310×2100 |
PFW1315III | 1300×1500 | 625×1530 | 300 | 180-270 | 4-160 | Y315L1-4/160 | 2960×2570×2380 |
PFW1318III | 1300×1800 | 625×1830 | 300 | 220-300 | 4-200 | Y315L2-4/200 | 2960×2870×2380 |
PFW1415III | 1400×1500 | 800×1530 | 350 | 280-350 | 4-200 | Y315L2-4/200 | 3120×2650×2660 |
