• Model NO.：PE
• Finished Surface：Gear Process
• Certification：ISO
• Condition：New
• Color：Red
• Capacity：100 Setsper Month
• Key Word 1：Stone Crusher
• Key Word 2：Hammer Crusher
• Transport Package：Export Wooden Cases
• Specification：2 cubic
• Trademark：GMEC
• Origin：Henan
• HS Code：8474809090
• Production Capacity：50-350t H

Basic Info.

Model NO. PE Finished Surface Gear Process Certification ISO Condition New Color Red Capacity 100 Setsper Month Key Word 1 Stone Crusher Key Word 2 Hammer Crusher Transport Package Export Wooden Cases Specification 2 cubic Trademark GMEC Origin Henan HS Code 8474809090 Production Capacity 50-350tH

Product Description

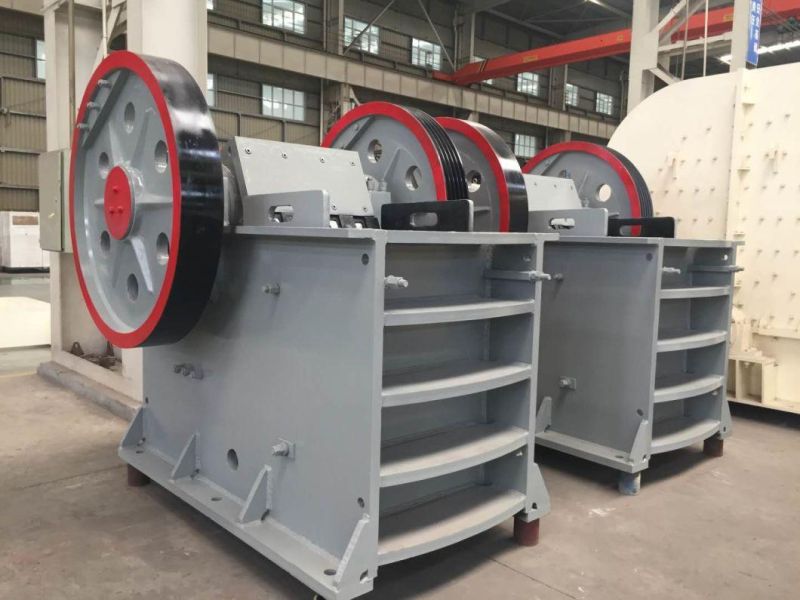

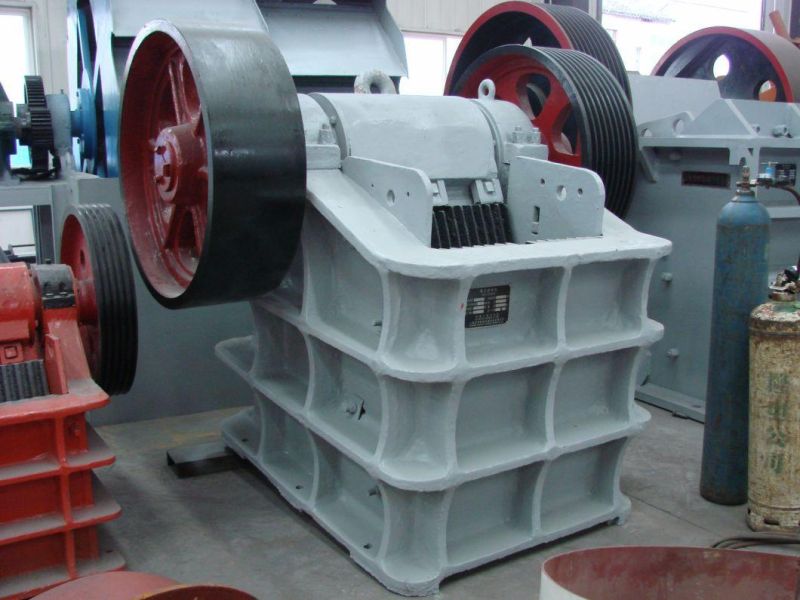

         Mining building materials chemical industry metallurgy PE series Jaw Crusher

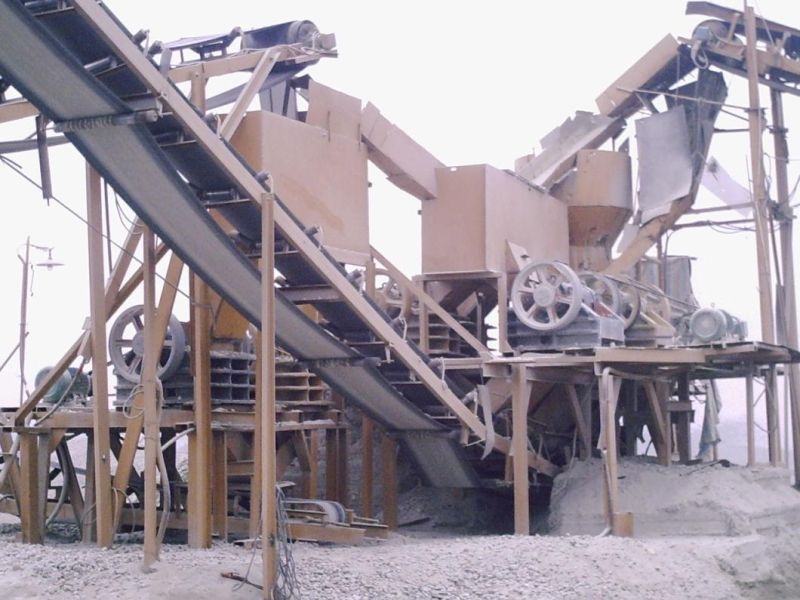

The PE series Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.

Features
1. Simple structure, easy maintenance;
2. High crushing ratio, even output granularity;
3. High reliability, low investment;
4. Low noise, less dust.


Working Principle

The strip and strip pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the movable jaw runs down, then the materials are crushed into pieces. It will become bigger when the movable jaw runs up. The movable jaw board leaves the fixed jaw board under the action of pole and spring , then the end products come out from the crushing cavity.


Model	Feed Opening Size (mm)	Max. Feeding Size (mm)	Adjustable Range of Output Size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall Dimension (mm)
PE250×400	250×400	200	20-50	5-20	15	2.9	1430×1310×1340
PE400×600	400×600	350	40-100	15-60	30-37	6.8	1700×1732×1653
PE500×750	500×750	425	50-100	40-100	45-55	11.2	2035×1921×2000
PE600×900	600×900	480	65-160	60-140	55-75	16.5	2290×2206×2370
PE750×1060	750×1060	630	80-150	80-230	90-110	29	2655×2302×3110
PE900×1200	900×1200	750	95-165	140-320	110-132	54.5	3789×3050×3025
PE1000×1200	1000×1200	850	105-185	180-400	160-200	56.5	3900×3320×3280
PE1200×1500	1200×1500	1020	150-300	250-800	220-250	99.6	4300×3540×4043
PEX150×250	150×250	125	10-40	1-3	5.5	0.85	896×745×935
PEX150×750	150×750	125	12-45	5-16	15	3.8	1205×1495×1203
PEX250×750	250×750	210	25-60	10-40	22-30	5	1667×1545×1020
PEX250×1000	250×1000	210	25-60	15-50	30-37	6.8	1964×1550×1380
PEX250×1200	250×1200	210	25-60	20-60	37-45	8.5	2192×1605×1415
PEX400×1200	400×1200	320	35-95	28-95	45-55	11.7	2256×2100×1960
