• Model NO.：KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• Export Markets：Global
• After-Sale Service：for Whole Year
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned Export Markets Global After-Sale Service for Whole Year Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

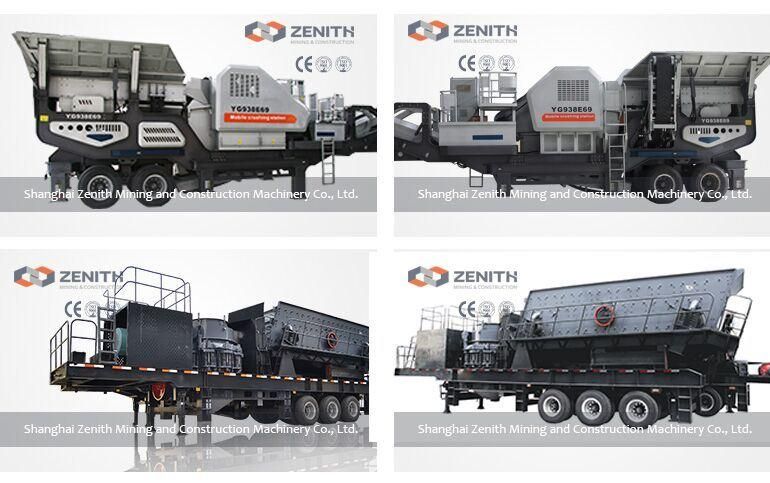

2019 hot sale high quality portable stone crusher machine

portable stone crusher machine introduction:

portable stone crusher machine provides a new field of business opportunitiesfor contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environmentlimit for the client.

portable stone crusher machine features:

By adopting the advanced hybrid power design, it saves 30%~50% oil consumption.
2.Employing fully rigid board structure, the chassis features high strength, low contact pressure, good passing ability and good adaptability to hilly and marsh areas.
3.Operating system with imported direct servo technique can be easily and precisely controlled and travel in a infinite variable speed.
4.The stock bin baffle and side belt conveyor can be turnover by adjusting hydraulic cylinder, convenient for transport and maintenance.

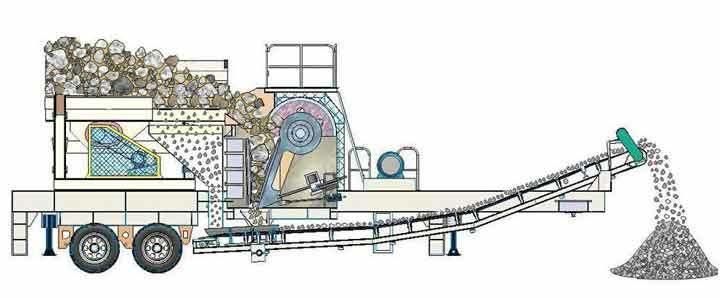

This series of portable stone crusher machine incorporates all the equipments together on one truck, which has high chassis, narrowerbody compared with other trucks, this ensure the crushing plant beeasily transported on highways and moved to crushing sites, so it is able to achieve on-site crushing without material transporting from oneplace to another place. In addition, the lengthened plant is able totransport the final products to the motor-lorry directly. The mobile crusher can startto work soon even in the bumpy ground without reinstallation, so itsaves more time and money than fixed crusher plant which needs toinstall individual equipment one by one.


portable stone crusher machine can work independentlyor together with other devices according to coarse crushing or fine crushing requirements. Side discharging chute supports more screeningand transporting ways. Diesel generators of the incorporated plant cannot only supply power for this plant, but also supply power for otherplants of the process flow.


portable stone crusher machine technical data:


Components	Transport dimensions	Specification
Crusher EP600X900 Feeder -Length: 3800mm -Width: 960mm Diesel generator -TypeMP-180-4 -Power225KVA  180kw -Weight2400KG Conveyor -Length: 12600mm -Width 650mm	Length L114000mm Width B12450mm Height H14000mm Wheel Chassis height difference H5: 380mm Chassis height H41720mm Appose double axle Double wheels each sides specs 11.00-20 Total weight :   38700kg	Motor power93.5KW Capacity Feeder height H34500mm Length  L216300mm Transport height H23300mm



Components	Transport dimensions	Specification
Crusher EP600X900 Vibrating feeder -Length: 3800mm -Width: 960mm Conveyor -Standard length: 9500mm -Lengthened length: 11600mm -Width: 650mm	Length L112500mm Width B12450mm Height H14000mm Chassis height H41720mm Wheel Chassis height difference H5: 380mm Parallel double axle Double wheels each sides specs  11.00-20 Total weight Standard plant 37650kg Lengthened plant 38000kg	Motor power91.5KW Capacity Feeder height H34500mm Standard plant Length L213150mm Transport height H22700mm Lengthened plant Length L215050mm Transport height H23100mm
