• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Year
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Year Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

2019 Good Quality and Low Price concrete fine crusher

concrete fine crusher introduction

concrete fine crusher is easy to install, debug and maintenance, the continuous improvement and refinement has made it the preferred jaw crusher among professionals and customers. Every feature of concrete fine crusherhas been carefully designed to provide superior quality and performance. It is widely used in fields of mining, metallurgical, construction, smelting, hydraulic and chemical industries, etc.

concrete fine crusher Application:

concrete fine crusher is often used for coarse and medium crushing operations. It is a high-end product among jaw crushers. It is your choice to efficiently crush hard and strong corrosive materials. Iron ore jaw crusher has become one of the most popular crushers in fields of highway, railways, airport runways, mining, building materials, silicates, metallurgy, chemical industrial raw materials, etc.

concrete fine crusher Work principle:

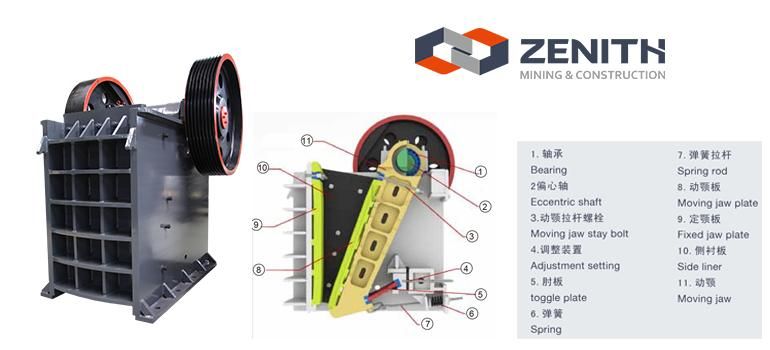

The motor drives belt and pulley wheel, making the movable jaw upside and down through the eccentric shaft. When the movable jaw pushes the movable jaw plate close to the fixed jaw plate, materials are crushed or chipped. When movable jaw and its plate get back under the action of eccentric shaft and spring, materials have been crushed are dropped out of the discharge opening. With the continuous rotation of the motor, the movable jaw cyclically crush and discharge materials, realizing mass production.

concrete fine crusher specifications:

Model	Feeder Opening (mm)	Setting Adjustment Range (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Weight (t)	Overall Dimension (mm)
PE500x750	500x750	50-100	425	40-110	45-55	12	2035x1921x2000
PE600x900	600x900	65-160	480	90-180	55-75	17	2290x2206x2370
PE750x1060	750x1060	80-140	630	110-320	90-110	29	2655× 2302× 3110
PE900x1200	900x1200	95-165	750	220-450	110-132	52	3200× 3050× 2950
PE1000x1200	1000x1200	195-265	850	315-550	110-132	57	3800× 3166× 3045
PE1200x1500	1200x1500	150-300	950	400-850	220	82.5	4200× 3750× 3820
