• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：50-850tph

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 50-850tph

Product Description

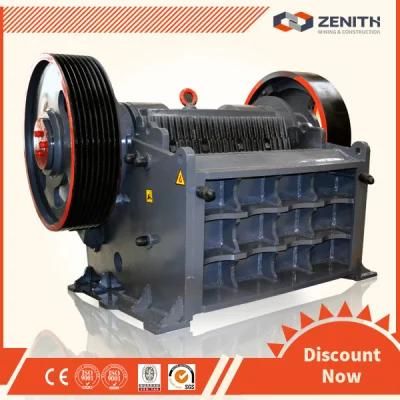

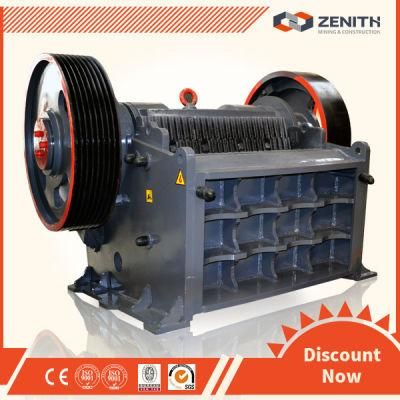

Hot sale energy saving stone crusher machine with 50-650tph

energy saving stone crusher machine introduction

The energy saving stone crusher machine are ideally suitable for primary and secondary crushing, with low power consumption and easy maintenance. Every feature of jaw crushers has been carefully designed to provide superior quality and performance. The jaw crushers are widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. Jaw crushers are recommended by leading consultants in this field and are used by hundreds of customers all over the world.

Features of energy saving stone crusher machine :

The saving stone crusher machine is of various types.
The saving stone crusher machine is suitable for crushing maximum, medium and minimum stones.
The operating principle is easy to be operated.
The structure is simple and it is easy to Maintain

energy saving stone crusher machine application:

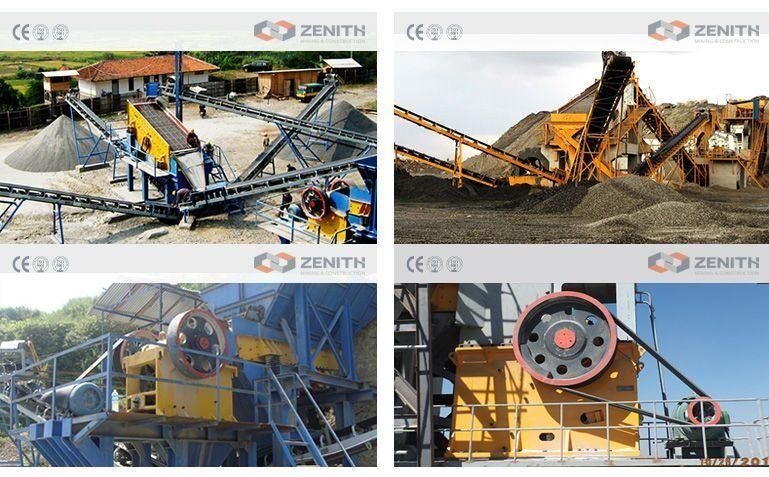

energy saving stone crusher machine is widely used in various materials processing of mining &construction industries, such as small stone crusher plant is suit for crushing granite, marble, basalt, limestone, quartz, cobble, iron ore, copper ore, and some other mineral &rocks.

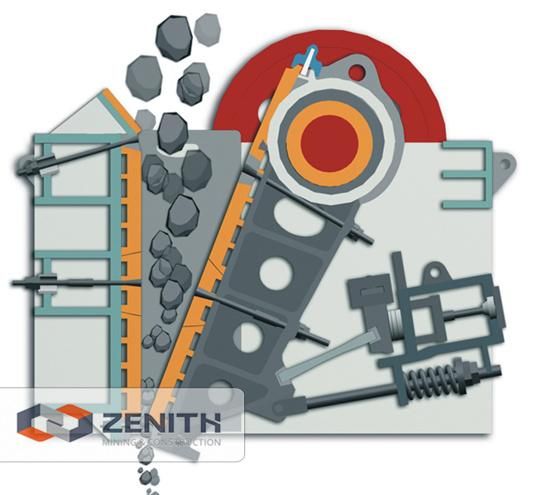

Working principle of energy saving stone crusher machine

energy saving stone crusher machine main frame, eccentric shaft , big pulley , flywheel, moving jaw , side guard plate , toggle plate , toggle plate back seat , adjusting screw gap , the reset spring , fixed jaw jaw and other components and activities , which also play a role as insurance bracket . Series of small stone crusher plant song moving extrusion type, motor-driven belt and pulley , through the eccentric shaft to move up and down movement of jaw , jaw rises when moving between toggle plate and moving jaw angle becomes larger, thus promoting the movable jaw plate close to the fixed jaw plate , while the material is squeezed, rubbing, grinding, such as multiple broken ; when the movable jaw down, between the angle between toggle plate and moving jaw smaller, movable jaw plate under the action rod, spring leaves set jaw , then the crushed material from the crushing chamber discharge port , with the motorized simple structure jaw crusher for sale motor for continuous rotation of the crushing and nesting periodicity , to achieve mass production

Technical data of energy saving stone crusher machine :

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PE200×350	200×350	170	20-50	2-6	220	6-7.5	Y160M-6/7.5
PE250×400	250×400	210	20-60	5-20	310	6-15	Y180L-6/15	1450×1315×1296
PE250×750	250×750	210	20-60	8-22	320	6-30	Y225M-6/30
PE500×750	500×750	425	50-100	45-100	275	6-55	Y280M-6/55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	250	6-75	Y315S-6/75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	250	8-90	Y315L1-8/90	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	200	8-130	JR127-8/130	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	200	8-130	JR127-8/130	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	220	8-200	YR355M4-8/200	4930×3150×3700
