• Model NO.：PE, PEX
• Finished Surface：Cut Off Tool
• Certification：CE, ISO
• Power：5.5-75kw
• Weight：750kg-11600kg
• Transport Package：Standard Packing
• Specification：CE
• Trademark：HC
• Origin：Gongyi City, Henan Province, China
• Production Capacity：50sets, Month

Basic Info.

Model NO. PE/ PEX Finished Surface Cut Off Tool Certification CE, ISO Power 5.5-75kw Weight 750kg-11600kg Transport Package Standard Packing Specification CE Trademark HC Origin Gongyi City, Henan Province, China Production Capacity 50sets/ Month

Product Description

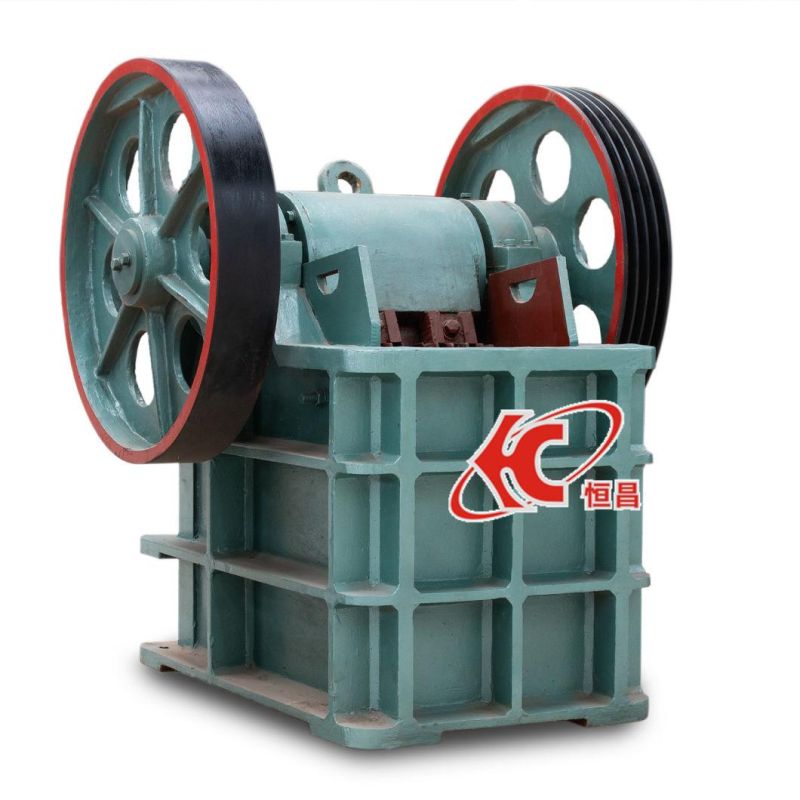

Mining Stone Jaw Crusher

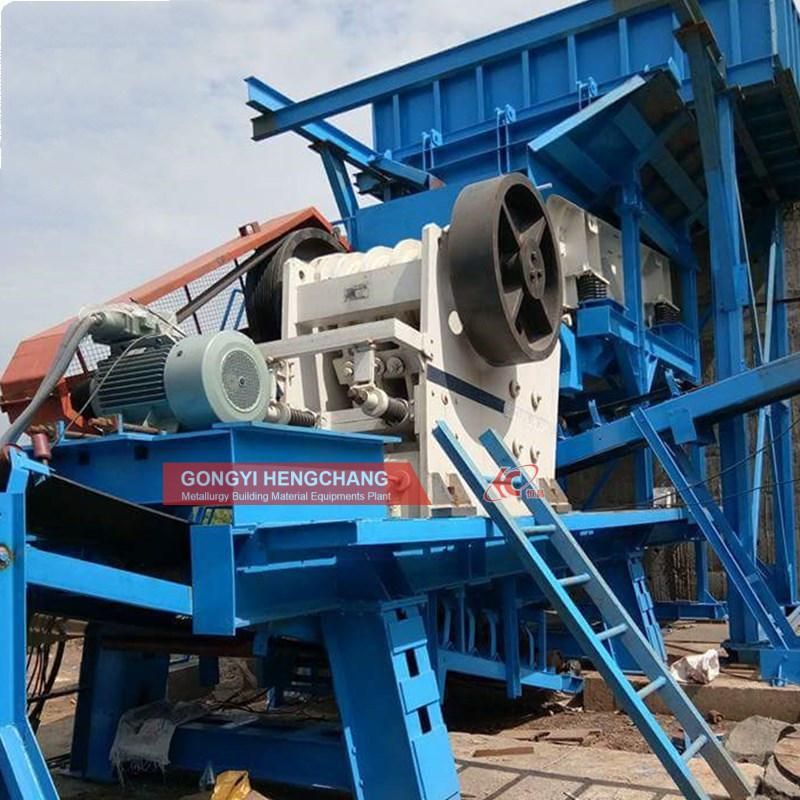

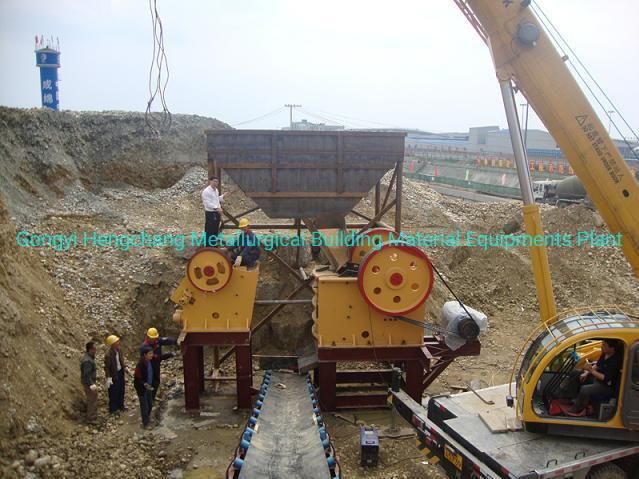

Jaw Crusher is widely used to break bulk material into small uniformed particles in mining, smelting, building material, highway, railway, water conservancy, and chemical industry. It is the corollary equipment of sand/stone making plant and ore beneficiation plant. Also, it can be used to produce road cornerstone and construction stone.





Working principle

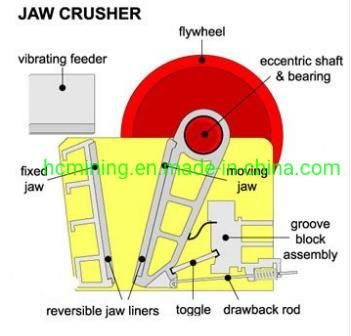

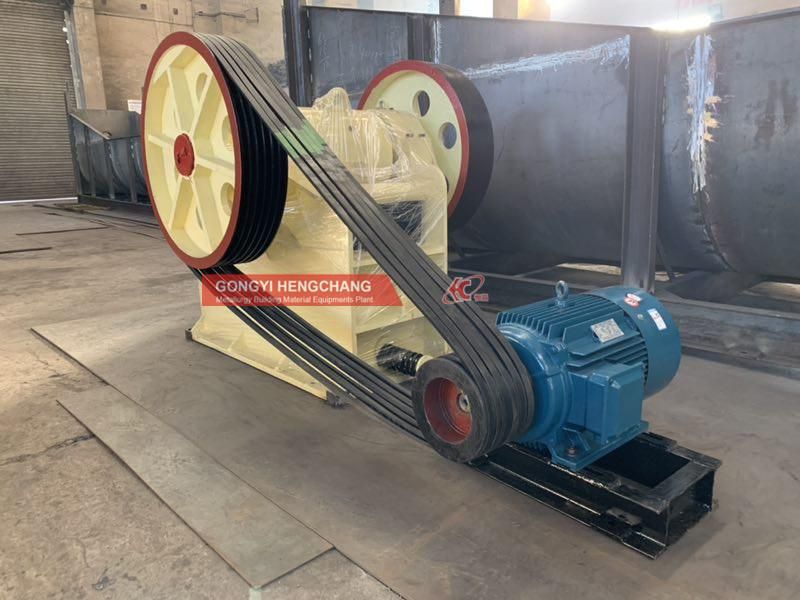

The motor transmits power through belts, drives the moving Jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving Jaw increases when the moving Jaw moves up. So the moving jaw closes to the Fixed Jaw. The staff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving Jaw decreases when the moving Jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.

Characters
1. Simple structure,
2. Easy maintenance
3. Stable performance
4. Even particles
5. High crushing ratio

Technical parameters

Model	Max. Input Size (mm)	Adjustment Range (mm)	Capacity (t/h)	Shaft Speed (r/min)	Motor Power (kW)	Overall Dimensions (mm)	Weight (kg)
PE150×250	125	10-40	1-3	285	5.5	922×745×933	750
PE200×300	165	15-50	2-8	265	7.5	1056×1100×1120	1100
PE250×400	210	20-60	5-20	300	15	1108×1142×1392	2900
PE400×600	340	40-90	25-64	280	30	1700×1732×1653	6900
PE500×750	425	50-100	34-68	275	55	2050×1860×2145	10500
PE600×900	480	65-160	56-192	250	75	2792×2168×2250	17500
PE750×1060	630	80-140	110-242	250	90	4180×2560×3070	27000
PE900×1200	750	100-200	158-256	250	110	5200×2900×3500	50000
PEX150×750	125	10-40	8-35	300	15	1220×1480×1180	3300
PEX250×1000	210	15-50	15-50	300	30	1580×1992×1380	7100
PEX250×1200	210	15-50	20-60	300	45	1730×2192×1380	8700
PEX300×1300	250	20-90	20-90	300	75	1930×2400×1747	11600
