Diamond Wire Automatic Cut Stone Mining Saw Cutter Machine for Granite/Marble/Block/Quarry/Bridge/Concrete Cutting Trimming Squaring Profiling

Fujian Xianda Machinery Co., Ltd.
  • Warranty：12 Months
  • Type：Stone Block Trimming Machine
  • Usage：Granite, Marble
  • Application：Machinery & Hardware, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic

Base Info

  • Model NO.：Rsm-3500-18
  • Cutting Ability：High Speed
  • Control：PLC
  • Certification：ISO, CE
  • Wire Length：19.2m
  • Max Processing Size：3500X3000X1800mm
  • Dimension of Worktable：2500X2000mm
  • Water Consumption：4m3,H
  • Main Motor：11kw
  • Weight：7000kg
  • Condition：New
  • Specification：9200*5500*4200mm
  • Trademark：XIANDA
  • Origin：Fujian, China
  • HS Code：8464109000
  • Production Capacity：1000 Sets Per Year

Description

Basic Info.

Model NO. Rsm-3500-18 Cutting Ability High Speed Control PLC Certification ISO, CE Wire Length 19.2m Max Processing Size 3500X3000X1800mm Dimension of Worktable 2500X2000mm Water Consumption 4m3/H Main Motor 11kw Weight 7000kg Condition New Specification 9200*5500*4200mm Trademark XIANDA Origin Fujian, China HS Code 8464109000 Production Capacity 1000 Sets Per Year

Product Description

Diamond Wire Automatic Cut Stone Mining Saw Cutter Machine for Granite/Marble/Block/Quarry/Bridge/Concrete Cutting Trimming Squaring Profiling

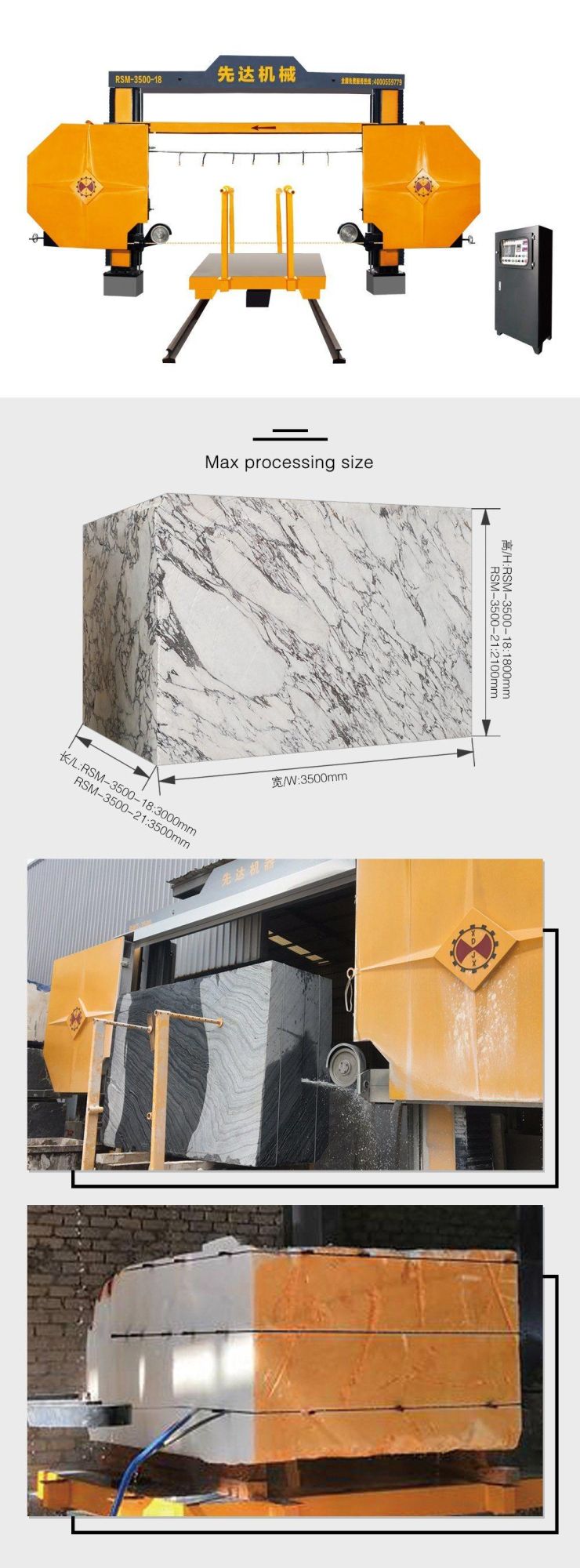

RSM-3500-18-21 diamond wire-saw trimming machine adopts PLC control,CNC is available also.The special design for 360° worktables will fulfil your need,used to trimming the four surfaces of the block,also can cut the block to slab,which is the ideal equipment for cutting and trimming block.Some more it compatible with CNC system,which can process the column slab,pillar,roman column,numeral,letter,Chinese characters and other shapes for the stone.



ParameterUnitRSM-3500-18/21CNC-3500
Max processing sizemm3500x3500x21003500x3500x2100
Dimension of worktablemm2500x20002500x2000
Main motorkw1515
Gross motorkw2423
Outline dimensionmm9500x6800x47009500x6800x4700
Gross weightkg80008000
Water consumptionkw44







Factory Overviews



Diamond Wire Automatic Cut Stone Mining Saw Cutter Machine for Granite/Marble/Block/Quarry/Bridge/Concrete Cutting Trimming Squaring Profiling
Certifications

Diamond Wire Automatic Cut Stone Mining Saw Cutter Machine for Granite/Marble/Block/Quarry/Bridge/Concrete Cutting Trimming Squaring Profiling
Exhibtion

Diamond Wire Automatic Cut Stone Mining Saw Cutter Machine for Granite/Marble/Block/Quarry/Bridge/Concrete Cutting Trimming Squaring Profiling



Our Services




We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
