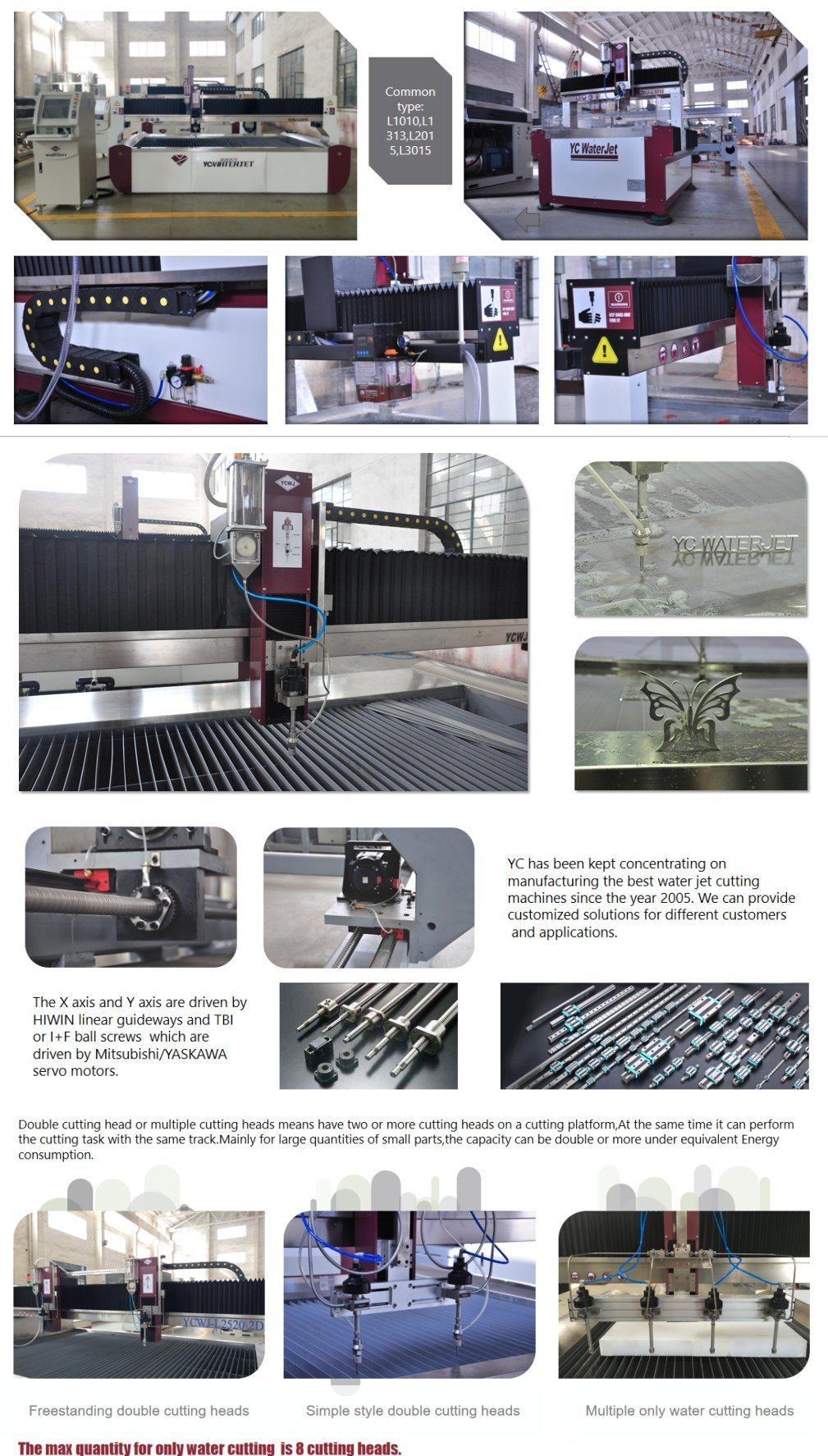

Waterjet Cutting Machine Gantry Type Waterjet Cutters
Wuxi Fengwei Machinery Equipment Co., Ltd.- After-sales Service：1 Year for Machinery Warranty
- Warranty：1 Year for Core Components
- Usage：Ceramics, Glass, Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry
- Source Voltage：220,380,400 V etc ,3pH ,50,60Hz
- Automation：Automatic
Base Info
- Cutting Ability：Customized
- Control：CNC
- Certification：ISO, CE
- Cutting Accuracy：+,-0.1mm

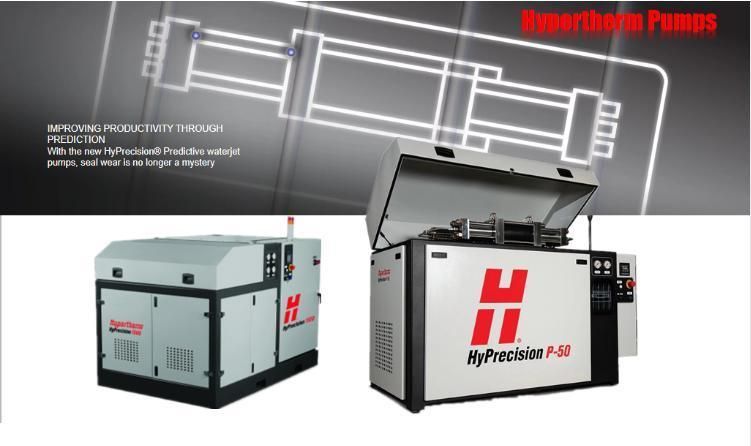

- Intensifier Assembly：Hypertherm(Accustream)
- Rated Power：30kw,37ke,75kw
- Local Service Location：United Kingdom Russia Poland
- Cutting Thickness：0-150mm
- Max Flowrate：3.7 L,Min
- Transport Package：Export Standard
- Trademark：Graphic customization
- Origin：China
- HS Code：8456500000
- Production Capacity：50 Set,Month
Description
as to detail material and thickness

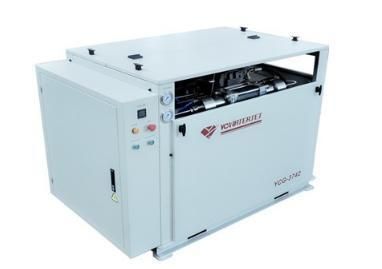

Water Jet High Pressure Pump
Main Feature:Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"

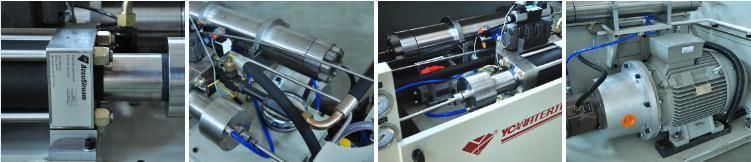

High Pressure Pump
