• Model NO.：PE 150*250
• Finished Surface：Cut Off Tool
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：4-85tph

Basic Info.

Model NO. PE 150*250 Finished Surface Cut Off Tool Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 4-85tph

Product Description

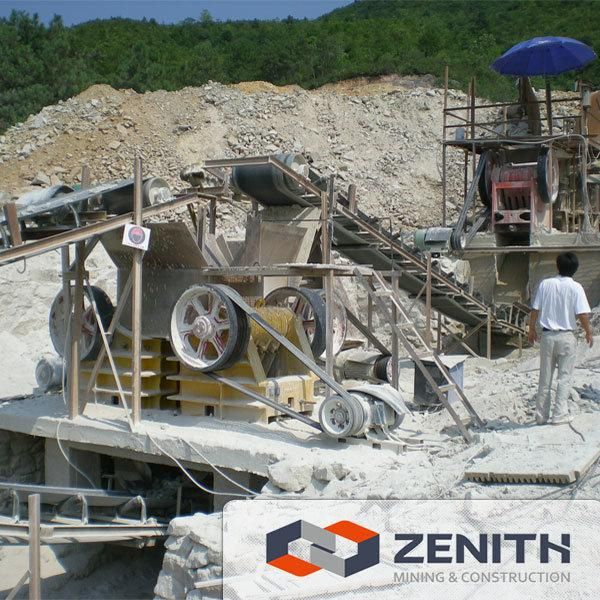

small stone crusher application: 1. This series of stone crushers is One of the most popular stone-crushing equipments in the world, small stone crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strengthof crushed material is 320Mpa.  2. Our design and production are of high position both at home and abroad. One of our main products, small stone crusher is designed by our engineers with large reduction ration,even granularity, simple structure, reliable operation, convenient maintenance,low cost. It is widely used in mining, metallurgy, construction, highway, railroad,and chemistry industries

 small stone crusher structure:

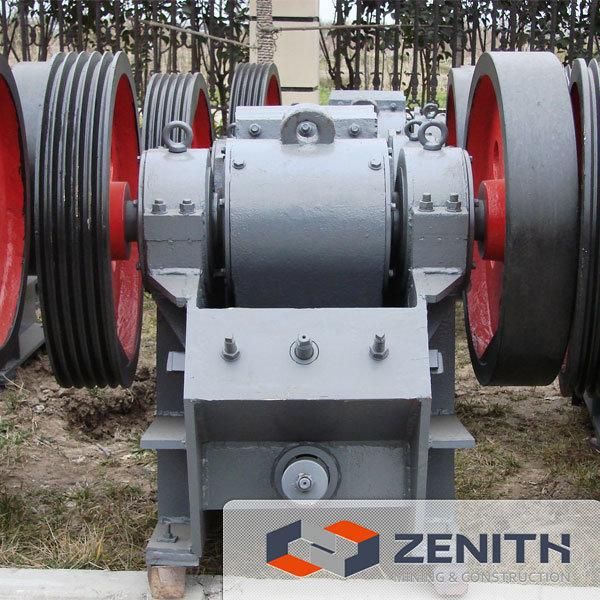

 PE serial small stone crusher mainly consists of main frame, movable( swing ) jaw, eccentric shaft, pulley, toggle plates etc. The electric motor passes power via V-belt pulley to the eccentric shaft to make the movable jaw moves in mesh, therefore, materials in crushing chamber can be crushed.

 performance features of small stone crusher with best price:
 1. The jaw stone crusher crushing grain size of charge is big, the breaking ratio is big. the productivity is high.2. The operation of jaw crusher is stable and reliable,fixed with over-loading protective device.3. The jaw crusher's energe consumption is low, the throwaway parts are little,the maintenance cost is low.4. The adjusting parts of the jaw crusher are reinforced emphatically. and precisi on working, reduce the frequency of rapair.5. The bearing part adopts multilayer labyrinth craft, to prolong the operating life of the bearing.6. Adopt the way of mould lubrication, the maintenance work is quicker and more convenient.7. The pulley adopts new craft and to be locked tensely, connects without keys, the maintenance is more convenient.

 small stone crusher Technical data:


Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PE200×350	200×350	170	20-50	2-6	220	6-7.5	Y160M-6/7.5
PE250×400	250×400	210	20-60	5-20	310	6-15	Y180L-6/15	1450×1315×1296
PE250×750	250×750	210	20-60	8-22	320	6-30	Y225M-6/30
PE500×750	500×750	425	50-100	45-100	275	6-55	Y280M-6/55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	250	6-75	Y315S-6/75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	250	8-90	Y315L1-8/90	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	200	8-130	JR127-8/130	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	200	8-130	JR127-8/130	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	220	8-200	YR355M4-8/200	4930×3150×3700
