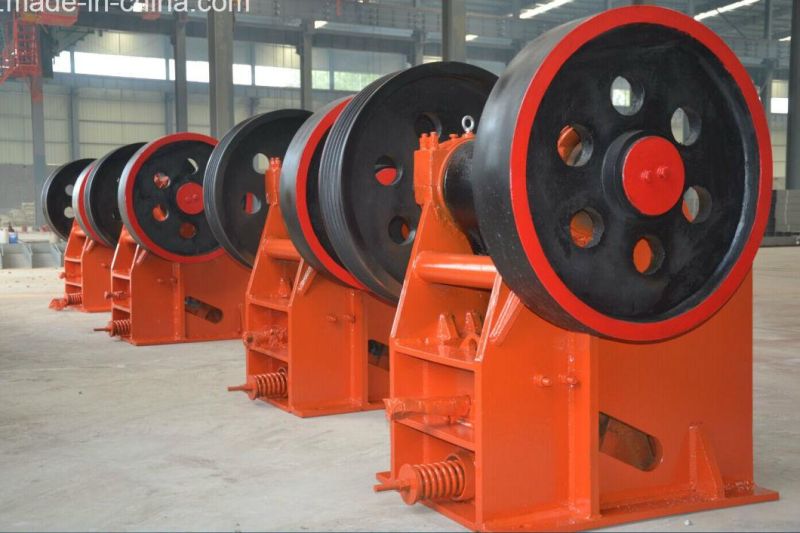

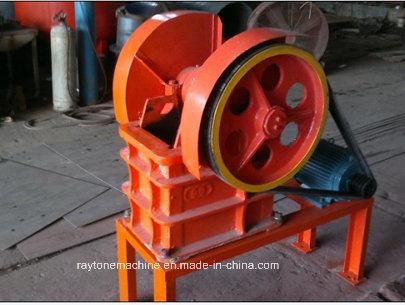

High Quality Jaw Crusher PE400*600z

Linyi Raytone Machinery Imp&Exp Co., Ltd.

Type：Jaw Crusher
Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
Drive：Electromagnetic
Crushing Style：Grinding & Impact
Compressive Strength (For Crushing)：100-250MPA
Crushing Degree：Coarse Crusher

Base Info

Model NO.：PE400*600Z
Finished Surface：Cut Off Tool
Certification：CE, ISO, SONCAP
Condition：New
Color：Red
Model No.：PE400*600z
Power：30kw
Feeding Opener：400*600mm
Capacity：15-80t,H
Output Size：20-80mm
Dimensiojn：1420*1750*1645mm
Crush Type：Jaw
Place of Origin：Shandong Linyi
Delivery Time：20 Days
Engineer Service：Available
Transport Package：Suitable for Sea Transportation
Specification：ISO CE SGS SONCAP
Trademark：Raytone Machinery
Origin：Shandong Linyi
HS Code：8464909000
Production Capacity：50 Sets Per Month

Description

Basic Info.

Model NO. PE400*600Z Finished Surface Cut Off Tool Certification CE, ISO, SONCAP Condition New Color Red Model No. PE400*600z Power 30kw Feeding Opener 400*600mm Capacity 15-80t/H Output Size 20-80mm Dimensiojn 1420*1750*1645mm Crush Type Jaw Place of Origin Shandong Linyi Delivery Time 20 Days Engineer Service Available Transport Package Suitable for Sea Transportation Specification ISO CE SGS SONCAP Trademark Raytone Machinery Origin Shandong Linyi HS Code 8464909000 Production Capacity 50 Sets Per Month

Product Description

Brief Introduction:

PE series Jaw Crusher is ideally suitable as primary and secondary crusher for material with compression strength less than 320Mpa. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintence and applicated widely inmetallurgy construction, highway, railroad, and water conservancy, etc.

Work Principle

The electrical motor transmits power to the eccentric shaft through v-belt and belt pulley. Then the exciting force generated by the eccentric shaft will make the movable jaw forwards and downwards. This movement would trigger the plate to push the movable jaw forwards and backwards. When the movable jaw moves forth towards the fixed jaw', materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which meted the requirement will be discharged from the outlet. Since the motor keeps working, the crusher and discharge periodically to achieve mass production.
