• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max. Cut Size (Lxw)：3200X2000 mm
• Max. Cut Thick：170 mm 7"
• Table Tilting：0-85°
• Table Rotation：0-360°
• Max. Blade Size：400-625 mm 16"-25"
• Spindle Motor：15kw 20HP
• Transport Package：Plastic Packing
• Specification：Dimention: 6x5x3m
• Trademark：AGA
• Origin：Xiamen, Fujian, China
• HS Code：84641010
• Production Capacity：100sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max. Cut Size (Lxw) 3200X2000 mm Max. Cut Thick 170 mm 7" Table Tilting 0-85° Table Rotation 0-360° Max. Blade Size 400-625 mm 16"-25" Spindle Motor 15kw 20HP Transport Package Plastic Packing Specification Dimention: 6x5x3m Trademark AGA Origin Xiamen, Fujian, China HS Code 84641010 Production Capacity 100sets/Month

Product Description

PLC Control Bridge Saw Stone Cutting Machine
Model NO. : XZQQ625A

Premium bridge saw machine is preferable for granite fabricator, good at cutting kitchento, countertop ... etc.
Applicable stone range of the stone cutting machine: Granite , Marble, Sandstone, Limestone, Quartz and so on.
The machine video on https://youtu.be/L9N6-pw7v6k

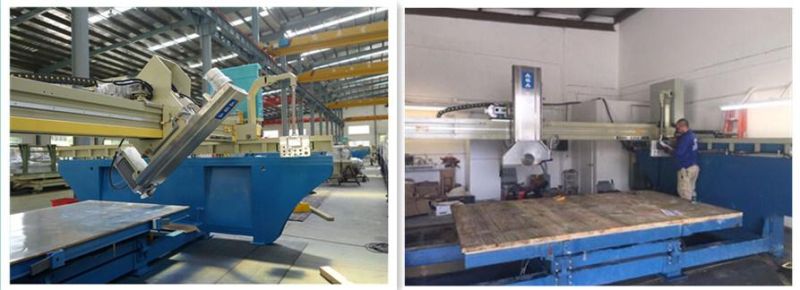

- The table tilts 0-85 degree for easy load of material. Also table turns 0-360 degree automatically stop any posittion.

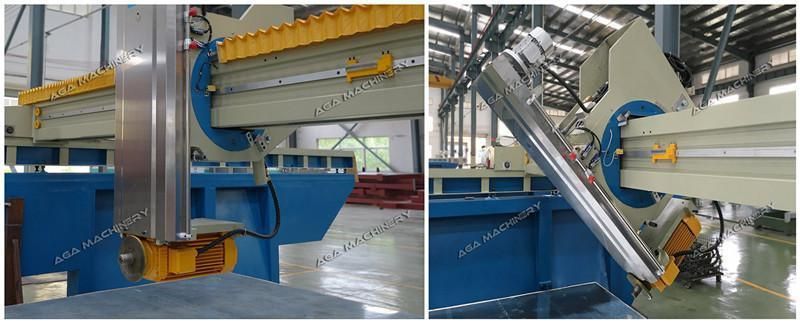

- The blade travels on the bridge, and provides automatic power tilting 0-45 degree for miter cuts.

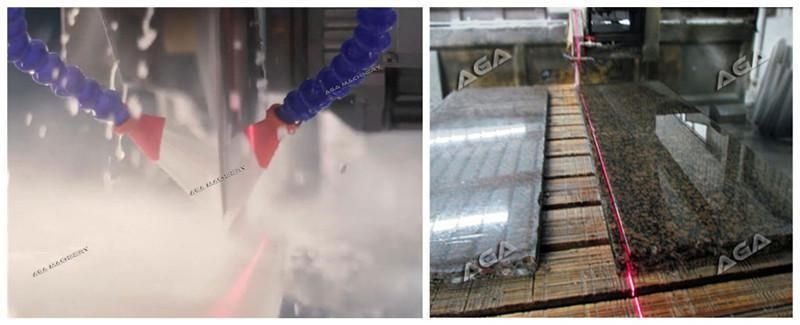

- Laser guide and sensors ensure precise cutting quality.
- The machine is controlled by computer, as weel as using the color Display Touch Screen.
- Wireless control make it possible to use it easily and friendly.
- The main structures are made of very strong cast iron for stable running and stainless steel for protection.
- It is able to cut 3.2m length and 2m width with laser guide sensor for cutting guide. All the functions are operated by industrial computer with programs.


Feature
1. Long brigde structure for cutting big slab.
2. Tilting table for easy load of big slab.
3. Automatic cut by program on PLC system.
4. Precise movements on X, Y, Z axis ensuring cutting accuracy +/-0.2mm.
5. Electric parts from Japan for stability and long service time.
6. Main parts made of cast iron for heavy duty work and stable performance.



Specification

Blade size	400-625mm   16"-25"
Cut length	3200mm         126"
Cut width	2000mm         78"
Cut thick	170mm            7"
Blade tilt	0 - 45°
Table rotate	0 - 360°
Table tilt	0 - 85°
Spindle motor	15kw              20HP
Size (L×W×H)	6×5×3 m
Weight	7200kg       16000lbs

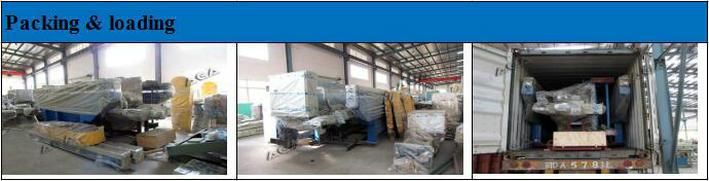

Packing & loading
Before packing our saw machine, our engineer will check all function. After checking it all is ok, then we use the water-proof & dust-proof plastic film package with foam protection in every corner. With loading steel frame so make it stable enough under long transportation.



Guarantee & After Sale Service

1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.


FAQ:
1, How to pay to you ?
 T/T in advance We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading
