• Model NO.：PF impact crusher
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：Customized
• Feeding Size：0-1500mm
• Applications Industry：Ore Crushing, Railways, Highways, Energy, Cement,
• Motor Power：75kw
• Transport Package：Transport Package
• Specification：70-1400 t,h
• Trademark：CHAENG
• Origin：Henan
• Production Capacity：70-1400 T,H

Basic Info.

Model NO. PF impact crusher Finished Surface Thread Process Certification CE, ISO Condition New Color Customized Feeding Size 0-1500mm Applications Industry Ore Crushing, Railways, Highways, Energy, Cement, Motor Power 75kw Transport Package Transport Package Specification 70-1400 t/h Trademark CHAENG Origin Henan Production Capacity 70-1400 T/H

Product Description

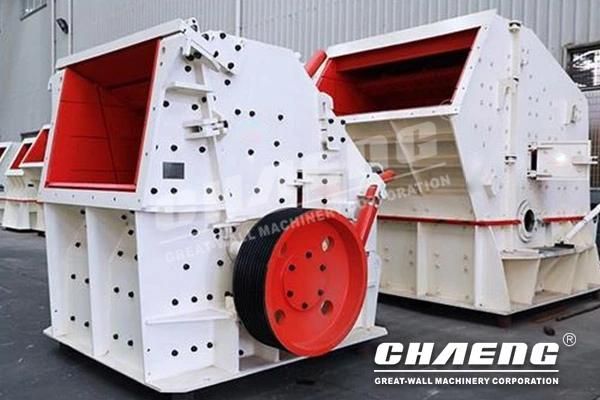

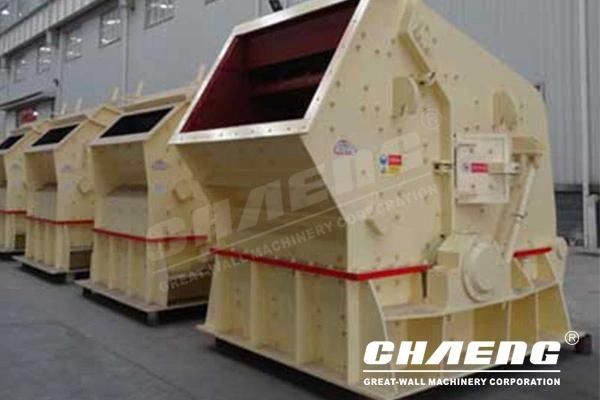

Introduction of  PF impact crusher
PF Impact Crusher is designed and produced by Xinxiang Great Wall after absorbing advanced technologes in the world. It can handle different material with compressive strength no more than 320 MPa, and it has features of large crushing ratio, higher efficiency, easy maintenance etc. The final products are in cubic shape and are uniform in size, so this kind of crusher is the ideal choice when processing aggregate for higway pavement and hydropower construction.

Advantages of impact crusher

1. Multi-cavity uniform crushing, suitable for crushing rock with medium and below hardness, high efficiency and energy saving.
2. The chunky and large material inlet makes it easy to arrange the production line and increase inlet size.
3. Full hydraulic pressure start-up, and it is easy for maintenance and changing spare parts.
4. New type wear-resistant material assures the hammer, impact bracket and liner have long service life.
5. It has the functions of 3-stage crushing and shaping. The final products are in cubic shape without tension crack. The discharging size is adjustable, which simplifies the crushing process.

Working process of impact crusher

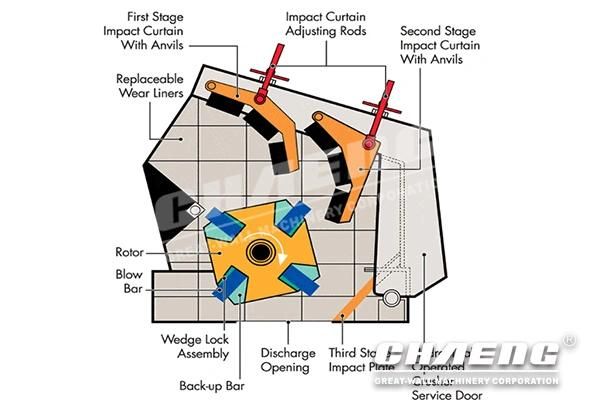

The impact crusher is a crushing machine that uses impact energy to break up materials. When the impact crusher is working, the rotor rotates at a high speed under the driving of the motor. When the material enters the action area of the flat hammers, it is broken through the collision with the hammers on the rotor, and then is thrown to the impact device for breaking again, and then rebounds from the impact plat to the hammer action zone. The process is repeated, the material enters the first, second and third impact chambers in order from large size to small size until the material is crushed to the required particle size and discharged from the outlet port.

 Specification of impact crusher


Model	Rotator Specification (mm)	Inlet Size (mm)	Max. Feed Size (mm)	Output (t/h)	Power (Kw)	Overall Dimension (mm)	Weight (t)
PF-1210	1250×1050	400×1050	350	70-120	110-132	2690×2338×2890	14.9
PF-1214	1250×1400	400×1430	350	130-180	132-160	2690×2338×2890	18.6
PF-1310	1300×1050	490×1170	400	80-140	110-160	2780×2478×2855	16.2
PF-1315	1320×1500	860×1520	500	160-250	180-260	3096×3273×2667	19.3
PF-1415	1450×1500	1145×1520	950	220-450	220-315	3745×3022×3519	27
PF-1520	1520×2000	830×2050	700	300-500	315-440	3581×3560×3265	38.7
PF-1818	1800×1800	1600×1850	1000	600-850	650-900	4180×4200×4900	75
PF-2024	2000×2400	1800×2430	1200	800-1100	1120	4800×4740×4180	120
PF-2326	2300×2600	2260×2640	1500	1000-1400	1250-1400	5360×5075×4680	148

Our service

Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers' request and budget, our experts make efficient, reliable solutions. Following customers' order we produce strictly, what's more, before placing the order every customer has the chance to visit XinXiang Great Wall (Chaeng) working machines or complete plant in the site.

To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.

After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers' plants. Necessary training about machine daily maintenance to local workers is provided also.

After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of XinXiang Great Wall (Chaeng), they are now strategically located home and abroad, working for our customers.
