Mo-3b Breaker Pneumatic Air Hammer Pneumatic Rock Drill
Fuzhou Golden Moral Imp & Exp Co., Ltd.- Type：Hammer Crusher
- Application：Mineral Industry, Stone Industry
- Drive：Pneumatic Air
- Crushing Style：Impact
- Compressive Strength (For Crushing)：>300MPA
- Crushing Degree：Fine Grinding Machine
Base Info
- Model NO.：MO-3B
- Finished Surface：Hole Process
- Certification：CE, ISO
- Condition：New
- Color：Blue
- Brand：GM
- Transport Package：Pack Carton
- Specification：small
- Trademark：OEM
- Origin：China
Description
MO-4BMO-3B MO-2B weight 9.6KG 9KG 8.5KG Impact Energy 55J/MIN 44J/MIN 39J/MIN Impact Frequency 17Hz 19.2Hz 22.5Hz Working Pressure 0.63 Mpa 0.63 Mpa 0.63 Mpa Air Consumption 1.5m3/dcm•kw 1.5m3/dcm•kw 1.5m3/dcm•kw Dia of Air Hose/Pick 24mm 24mm 24mm Length of Tail Pick 70mm 70mm 70mm

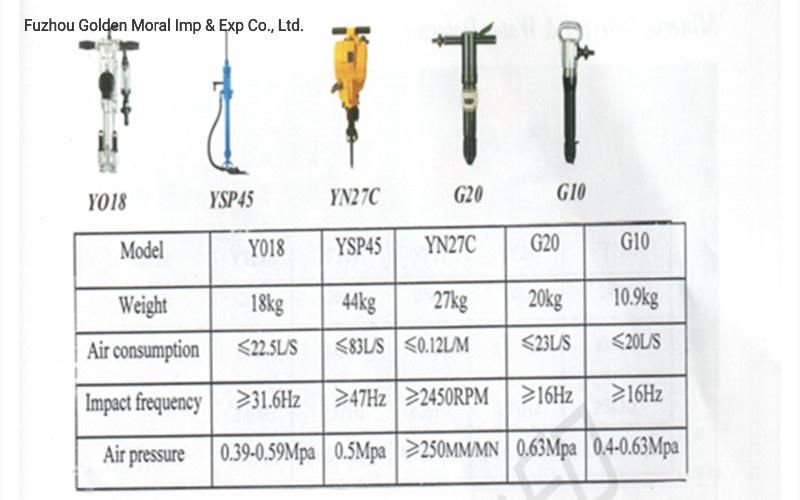

G10 Pneumatic Pick
Instruction
G10 pneumatic pick is suitable for drilling in mine, crushing incompetent bed, concrete and clay, destroying hard or frozen stratum and other athletics occasion which need impact.
Technical Specification
Total Length 570mm
Weight 10kg
Rammerweight 0.9kg
Rammer dia 38mm
Rammer stroke 155mm
Air pressure 0.63Mpa
Impact energy 43J
Impact frequency 16Hz
Air consumption 26L/s
Air pipe inner dia 16mm
Drill 500mm
Maintenance
Pneumatic pick is a exactitube tool that make reciprocating impact, should pay attention to maintenance.
Please abide the following maintenance rules.
1, Air pipe inner dia is 16mm and length is not excess 12 m, the air pressure should be kept at 0.5-0.6Mpa, and keep air pipe clean and fasten hose nipple.
2, When assembling machine, check clearance between drill shank and fixing sleeve, hold handle and force pressure to it slowly, ensure that work normally.
3, Working regularly, oil machine through the pipe connecter every 2-3 hours(3-4.5°E50 turbine oil)
4, Do not insert the whole machine into ledge,when drilling incompetent bed.
5, When machine was jammed in crevice, do not draw out it powerfully, it will damage machine.
6, If dirty block strainer, romove it.Don't take off strainer.
7, When using machine,dismantle it at least twice a week, use diesel oil to clean and dry, then oil, later assemble and operate machine.
8 ,If machine should stop for along time, dismantle and clean it, then oil and keep in storehouse.

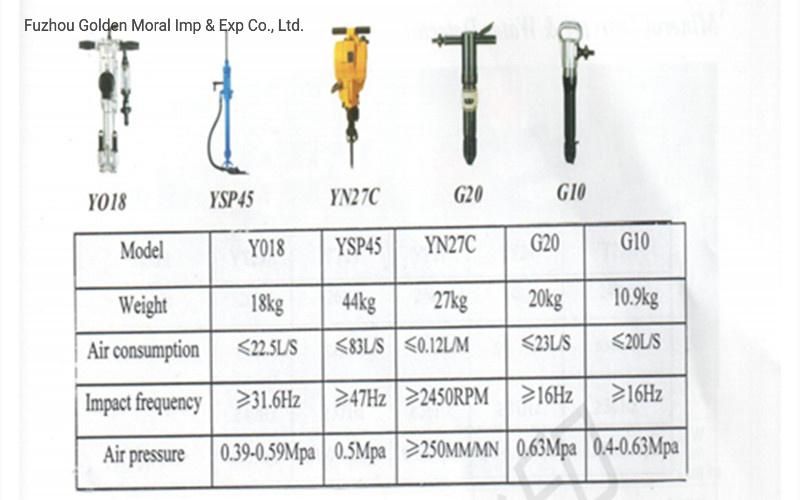

G10 Pneumatic Pick
Instruction
G10 pneumatic pick is suitable for drilling in mine, crushing incompetent bed, concrete and clay, destroying hard or frozen stratum and other athletics occasion which need impact.
Technical Specification
Total Length 570mm
Weight 10kg
Rammerweight 0.9kg
Rammer dia 38mm
Rammer stroke 155mm
Air pressure 0.63Mpa
Impact energy 43J
Impact frequency 16Hz
Air consumption 26L/s
Air pipe inner dia 16mm
Drill 500mm
Maintenance
Pneumatic pick is a exactitube tool that make reciprocating impact, should pay attention to maintenance.
Please abide the following maintenance rules.
1, Air pipe inner dia is 16mm and length is not excess 12 m, the air pressure should be kept at 0.5-0.6Mpa, and keep air pipe clean and fasten hose nipple.
2, When assembling machine, check clearance between drill shank and fixing sleeve, hold handle and force pressure to it slowly, ensure that work normally.
3, Working regularly, oil machine through the pipe connecter every 2-3 hours(3-4.5°E50 turbine oil)
4, Do not insert the whole machine into ledge,when drilling incompetent bed.
5, When machine was jammed in crevice, do not draw out it powerfully, it will damage machine.
6, If dirty block strainer, romove it.Don't take off strainer.
7, When using machine,dismantle it at least twice a week, use diesel oil to clean and dry, then oil, later assemble and operate machine.
8 ,If machine should stop for along time, dismantle and clean it, then oil and keep in storehouse.
