• Model NO.：FX1200
• Control：CNC
• Certification：ISO, CE
• Blade Size：φ350-600mm
• Max.Cut Size(L×w×h)：2500,3000×1200×400mm
• Cutting Feed Speed：0-7.5m,Min
• Max.Cut Depth：180mm
• Spindle Motor：15kw
• Dimention：4.9,5.4×2.2×2.4m
• Transport Package：Plastic Packing
• Specification：max. cutting feed speed 7.5 m,min
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：3600sets,Month

Basic Info.

Model NO. FX1200 Control CNC Certification ISO, CE Blade Size φ350-600mm Max.Cut Size(L×w×h) 2500/3000×1200×400mm Cutting Feed Speed 0-7.5m/Min Max.Cut Depth 180mm Spindle Motor 15kw Dimention 4.9/5.4×2.2×2.4m Transport Package Plastic Packing Specification max. cutting feed speed 7.5 m/min Trademark AGA Origin China HS Code 84641010 Production Capacity 3600sets/Month

Product Description

Profile Cutting Machine  /Stone Profiling Machine

1.Product No. FX1200
2. Good services and warranty.
3. High power and easily operation.

Profile Cutting Machine Info:

The machine is applicable for cutting the profle on marble granite stones to make mouldings, boarder line, door frame, etc. It is microcomputer control for automatic work. A optical fiber device tracks the template and makes precise copy cut automatically. The template is easy to change for diversified patterns.

There are two blades mounted on the spindle so it is able to process two materials at the same time that provides high working efficiency.

Profile Cutting Machine  Specification:


Blade size	Φ300-Φ600 mm  12"-24"
Max. cut length	2500/3000 mm  98"/118"
Max. cut width	1200 mm  47"
Max. cut depth	400 mm  16"
Table size	2500/3000 × 1200 mm
Spindle motor	15 Kw  20HP
Water consumption	3.6 m³/h
Size	4.9×2.2×2.4 m
Weight	4,000 Kg

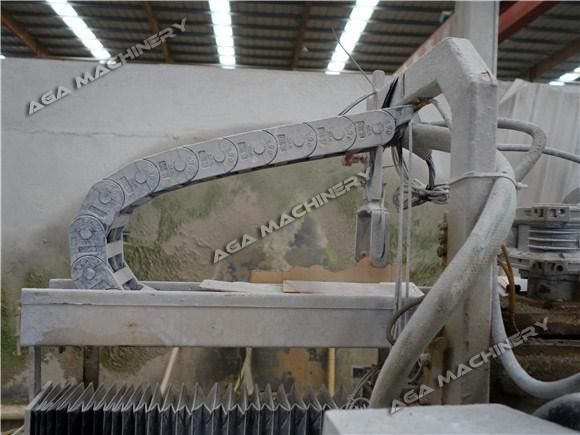

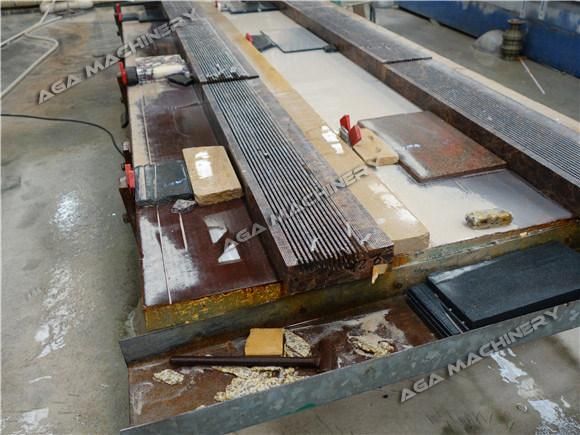

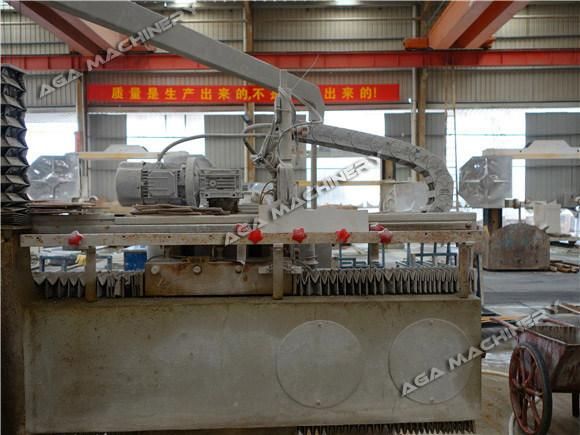

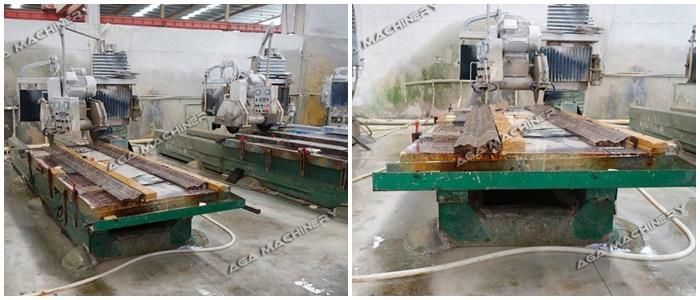

Profile Cutting Machine  Pictures:





FAQ:
1, How to pay to you ?
 T/T in advance. We accept 30% deposit , 70% before shipment

2, How long is the delivery time?
For standard machines, it would be 2-5 weeks

3, Do You Arrange Shipment For The Machines?
for FOB or CIF price, we will arrange shipment for you.

4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release

5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package

AGA Company:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. the products include bridge saw, block  cutter, polishing machine as well as equipments for other construction stones. the equipments have been successfully exported to world stone market in usa, canada, europe, mid east, egypt, india, etc.




AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers  in their pursuit of a true competitive advantage. our philosophy is all about  professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

AGA Products:
Stone cutting machine multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.
