• Model NO.：K series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：40-850tph

Basic Info.

Model NO. K series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 40-850tph

Product Description

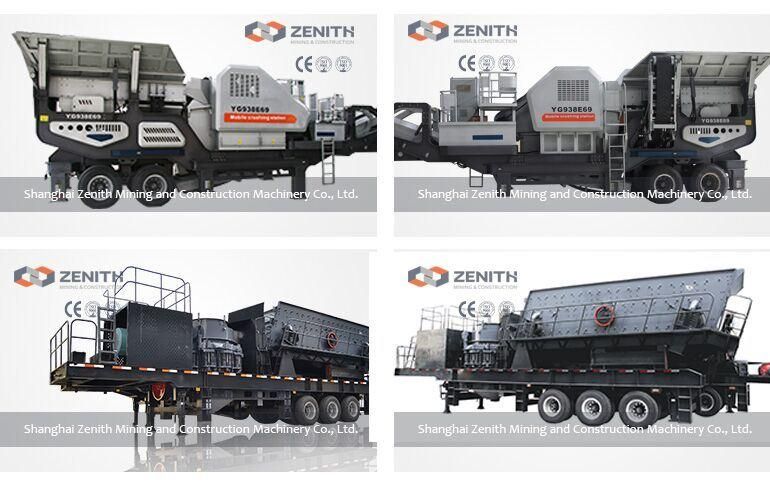

mobile cone crushing machine

Zenith new generation K series portable crushing plants contain 7 series and 72 models products. And one series mainframes share one kind of metal-frame in the machine farm, so fresh-investors can get machine quickly and reinvestment won't take too much cost to update the crushing plant.

 mobile cone crushing machine Features

1. Compact structure and dismountable parts are good for transportation, cutting the transportation expenses.
2. Equipped with supporting-metal, the machine can quickly start to work without any foundation.
3. The vibrating feeder can finish the pre-screening work, which can increase the crushing capacity and cut the production cost.
4. One metal-frame design fits for many mainframe crusher, we can prepare many inversion and fresh-investors can get machines quickly. Also reinvestment won't take too much cost to update the crushing plant.
5. Equipped with sustained hoisting tools, operating platform, repair kit, and centralized control system, etc., to humanize maintenance and applications
6. A water-jet dust suppression device and other relevant devices are added as options to satisfy users' various requirements.

mobile cone crushing machine Technical data


Model	Specs. of screening equipment	Specs. of crushing equipment	Specs. of main belt conveyor	Hopper volume(m3)	Max.feeding size (mm)	Transportation dimension(mm)
KE600-1	TSW0936	PE600×900	B800×8.3m	5.3	500	12150×2600×3950
KE750-1	TSW1139	PE750×1060	B1000×8.5m	7	630	13000×2850×4400
KE760-1	TSW1139	PEW760	B1000×8.5m	7	640	13000×2800×4200
KE860-1	TSW1345	PEW860	B1200×9.5m	8	720	14600×3000×4500
KE1100-1	TSW1548	PEW1100	B1400×9.5m	11	930	14050×2900×4000
KJ98-1	TSW1139	HJ98	B800×8.3m	5.9	560	12150×2600×3950
KJ110-1	TSW1345	HJ110	B1000×8.5m	8.5	660	13200×3000×4400
KJ125-1	TSW1345	HJ125	B1400×9.5m	8	800	14600×3000×4500
KF1214II-1	TSW0936	PFW1214II	B800×8.3m	5.3	500	12150×2600×3980
KF1315II-1	TSW1345	PFW1315II	B1200×9.5m	8	600	14600×3100×4500
KF1415II-1	TSW1548	PFW1415II	B1200×9.5m	11	700	14050×3000×4000
