• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Machine Size (L*W*H)：6*5*2.6m
• Power of Spindle Motor：15 Kw 20HP
• Table Tilt：0-85 Degree Easy for Materials Loading
• Table Rotate：0 - 360 Degree Stopped Any Position
• Blade Tilt：0 - 45 Degree for Miter Cut
• Cut Length：3200 mm
• Cut Width：2000 mm
• Cut Thick：170 mm
• Transport Package：Plastic Water-Proof
• Specification：weight: 7200kg
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Machine Size (L*W*H) 6*5*2.6m Power of Spindle Motor 15 Kw 20HP Table Tilt 0-85 Degree Easy for Materials Loading Table Rotate 0 - 360 Degree Stopped Any Position Blade Tilt 0 - 45 Degree for Miter Cut Cut Length 3200 mm Cut Width 2000 mm Cut Thick 170 mm Transport Package Plastic Water-Proof Specification weight: 7200kg Trademark AGA Origin China HS Code 84641010 Production Capacity 200sets/Month

Product Description

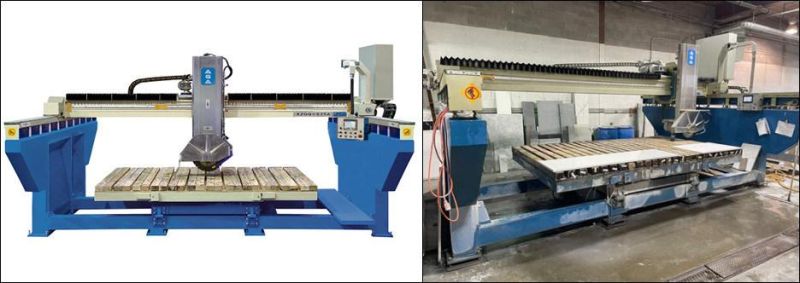

Infrared Stone Bridge Saw Auto CNC Machine Cutting Countertops&Slabs&Tiles
Product No.XZQQ625A
Premium bridge saw XZQQ625A comes with full options, such as strong steel frame, pendant control panel, touch screen, wireless remote, table rotation and tilting, blade miter cut, hydraulic pump, etc. Preferable for cutting granite, marble, quartz of slabs, counter tops, bench tops, vanity tops, et.

Stone bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Stone bridge saw advantages:
The design of the machine provides the user safe and easy exploitation, high performance and productivity.
All comandulli machines are manufactured not only to perform consistently at the highest level for many years, but also to enable longevity of the machine.
The machine structure goes through a metallization process, and is finished with a special cataphoresis painting treatment allowing both a long rust free life, and great looks.
Y axis side walking group and X axis cutting movement group, control racks, pinions, linear rails and ball-bearings are working in oil pool. All moving parts are protected from water and dust by covering.

Maximize your granite and marble production with the Monoblock Bridge Saw.



The max. cut size of 3200mm ×  2000mm × 170mm in length ×width × thick(126'' × 78'' × 6.7'' L × W × H).

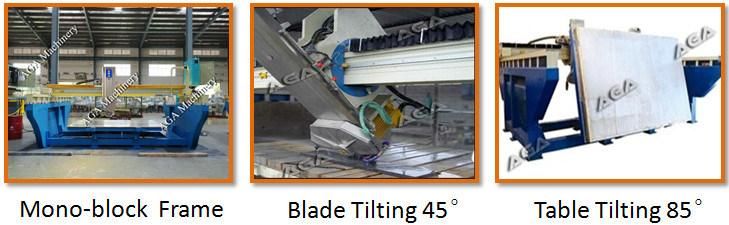

1) Main structures of granite marble bridge saw are made of very strong cast iron and stainless steel for protection. Monoblock frame provides stable operation.
2) The stone bridge saw head provides 0°-45°for miter cut very excellent performance in cutting and fabricating countertops.

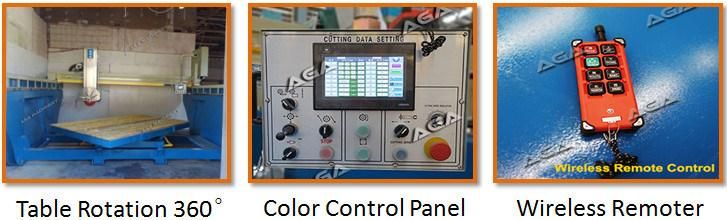

3) Granite marble bridge saw table rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position. The max.cut size of stone can be 3200 × 2000mm×170mm in Length× Width×Thickness.
4) Bridge saw table tilts 0°-85° for easy load of big slabs.
5) PLC control makes each operation easily. All functions are operated on the Display Control Panel.
6) Wireless remoter provides easy conrols of the bridge saw making its users very friendly.
7) Granite bridge saw cutting guied by laser provides precision position in +/-0.2mm.
8) The bridge saw is delivered in mono-pack, very simple and easy for you to download at the door, also it's very easy for installation.


Key words:
Stone bridge saw, stone bridge saw, granite bridge saw, stone saw, granite cutting machine, stone cutting machine, bridge cutting machine, bridge saw, cutting machine, auto bridge saw, cnc machine, cnc cutting machine, tile cutter, china bridge saw, automatic bridge saw, etc.


FAQ:
1) Payment:
T/T in advance, we accept 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


Your dream machine is closer than you thinke. Please feel free to contact us if you need any information, we're more than happy to serve you!
Contact: Miss Kay
