6090 Mini Jade Engraving CNC Router Machine, for Jade, Stone, Aluminum, Rubber, Copper
Jinan Guanjiahong CNC Machinery Co., Ltd.- Function:Cutting, Line Engraving
- Application Material:Jadestone
- Automation:Automatic
- Control:CNC
- Motor Power:Small Power
- Certification:CE, SGS
Base Info
- Model NO.:GJH 6090-1
- Current:AC
- Application:Advertising, Art & Craft, Stone Industry
- Customized:Customized
- Control System:Nc Studio, Shanghai
- Guild Rail:Taiwan Trv
- Ball Screw:Tbi 2510
- Transport Package:Plywood Case
- Specification:GJH 6090-1
- Trademark:GJH
- Origin:Shandong China
- HS Code:84609090
- Production Capacity:100 Sets Per Month
Description
Basic Info.
Model NO. GJH 6090-1 Current AC Application Advertising, Art & Craft, Stone Industry Customized Customized Control System Nc Studio, Shanghai Guild Rail Taiwan Trv Ball Screw Tbi 2510 Transport Package Plywood Case Specification GJH 6090-1 Trademark GJH Origin Shandong China HS Code 84609090 Production Capacity 100 Sets Per MonthProduct Description

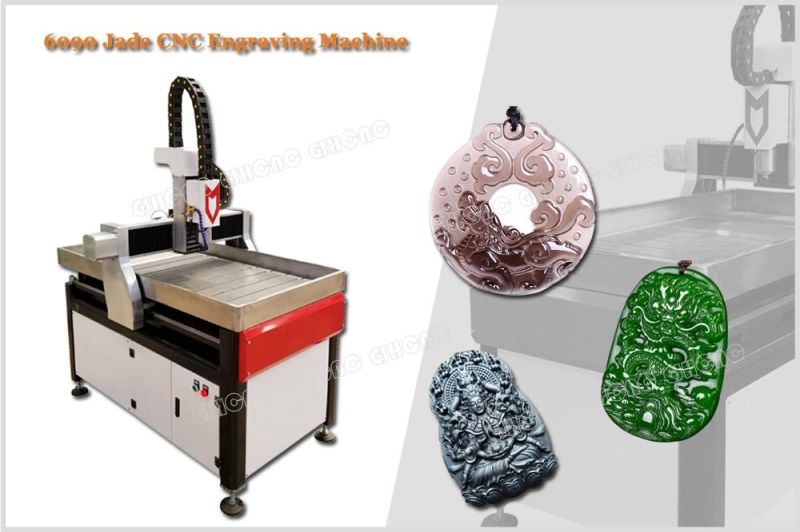

6090 Jade Engraving CNC Router Machine,For Jade, Marble, Granite, Stone
1. Model: GJH-6090-1
2. Internationally advanced NC studio system which have memory of breakpoint can guarantee
resumpti on of processing in case of incident (breaking) or of work of the previous day.

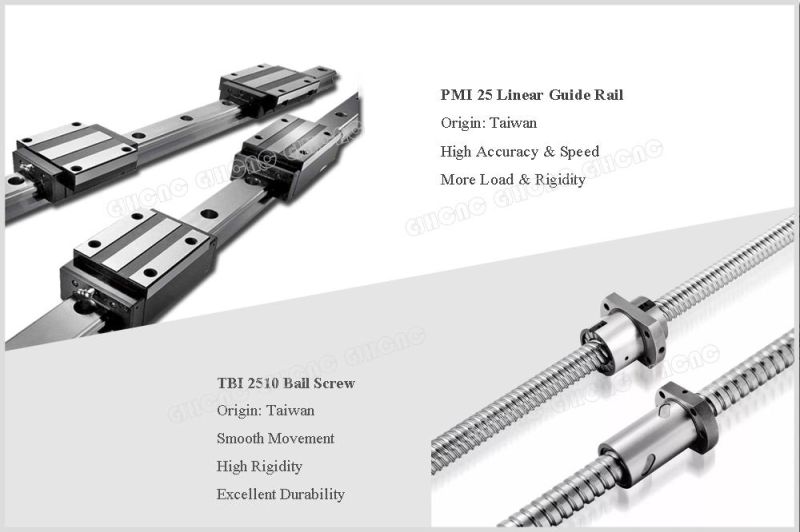

3. Imported linear square rails, double big slider, loading capacity, smooth operation, high precision,
long life, accurate operation.
4. Constant power spindle motor, strong and accurate cutting, high efficiency.
NO | Performance index | Performance index | Parameter |
1 | Working area | X area | 600mm |
Y area | 900mm | ||
Z area | 120mm | ||
2 | Table size | 600mm*900mm | |
3 | Accuracy | Working precision | 0.05mm |
Repositioning precision | 0.05mm | ||
4 | Drive mode | X axis | Original Taiwan Ball screw |
Y axis | Original Taiwan Ball screw | ||
Z axis | Original Taiwan Ball screw | ||
5 | Speed | Max traverse speed | 30000mm/min |
Max engraving speed | 8000mm/min | ||

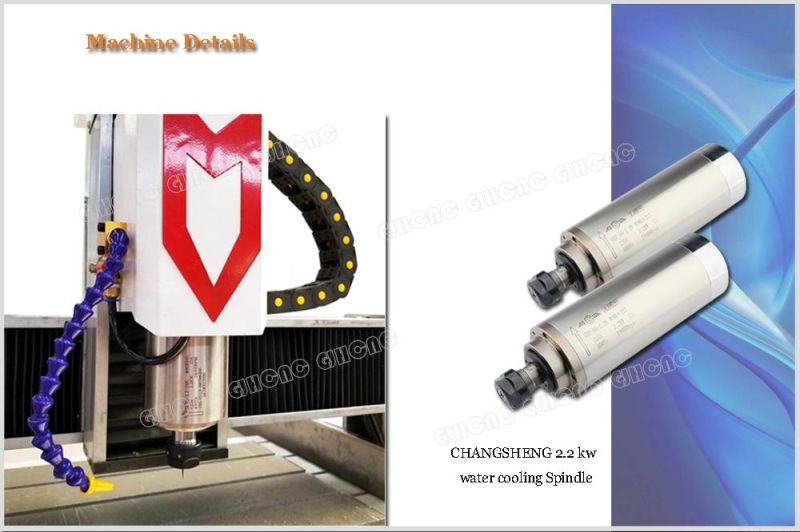

6 | Spindle (water-cooling) | Spindle power | 2.2KW |
Spindle speed | 0_24000r/min | ||
7 | Drive motor | 450A Stepper Motor and DMA 860 Driver | |
8 | Operating voltage | AC220V/50HZ | |
9 | Command code | G code | |
10 | Operating system | NC Studio |
If you have any other specific inquirements for jade engraving cnc router machine, customized is available.
