Granite Countertop Sink Hole Cutting Kitchen Tops CNC Bridge Saw Stone Cutter Machine
SHANDONG IGOLDEN CNC TECHNOLOGY CO., LTD.- Type:CNC Cutting Machine
- Usage:Ceramics, Granite, Marble
- Application:Stone Industry
- Source Voltage:230V
- Automation:Automatic
- Cutting Ability:High Speed
Base Info
- Model NO.:IGS-Brige saw cutting machine
- Control:CNC
- Certification:ISO, CE
- Key Selling Points:High-Accuracy
- Keywords:Bridge Saw CNC Stone Cutting Machine
- Working Area:3000*2000mm
- Control System:CNC Control System
- Motor Power:4kw
- Transmission:X,Y Rack and Pinion, Z Ball Screw
- Spindle:Water Cooling Spindle and Cutters
- Lathe Structure:T-Slot Square Tube
- T-Slot Square Tube:24000r,Min
- Transport Package:Wooden Case
- Specification:3000*2000MM
- Trademark:iGoldencnc
- Origin:China
- Production Capacity:500
Description
Name
Granite kitchen cutting cnc bridge saw stone cutter machine
Voltage
380v-3phase,50hz
Motor power
4 kw
Stroke of X axis
3000mm
Stroke of Y axis
2000mm
Stroke of Z axis
260mm
Stroke of A axis
360 degree rotation
Cutting speed of X axis
1-2000mm/min
Cutting speed of Y axis
1-2000mm/min
Cutting speed of Z axis
1-1000mm/min
Rotating speed of A axis
0-7R/min
Cutting thickness
100mm
Cutting precision
0.2mm
Programing way
Manual or Import graphics
Overall size
4500x2750x2100mm
Weight
2000kg
Warranty
1 year for the machine frame, 6 months for electric parts

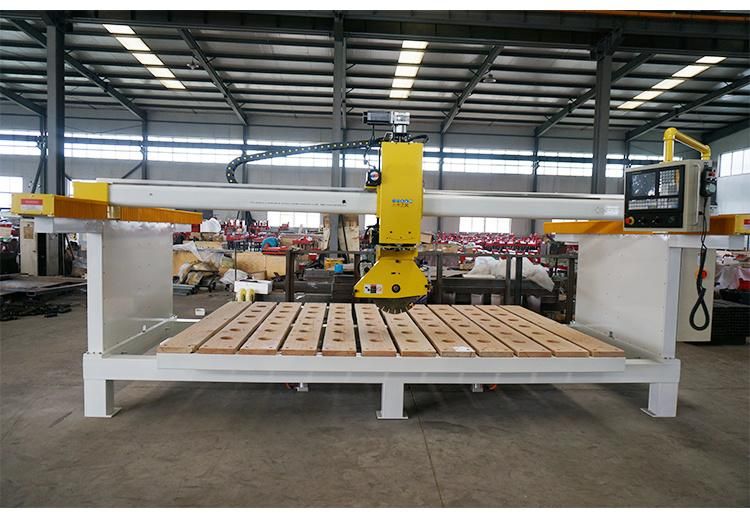

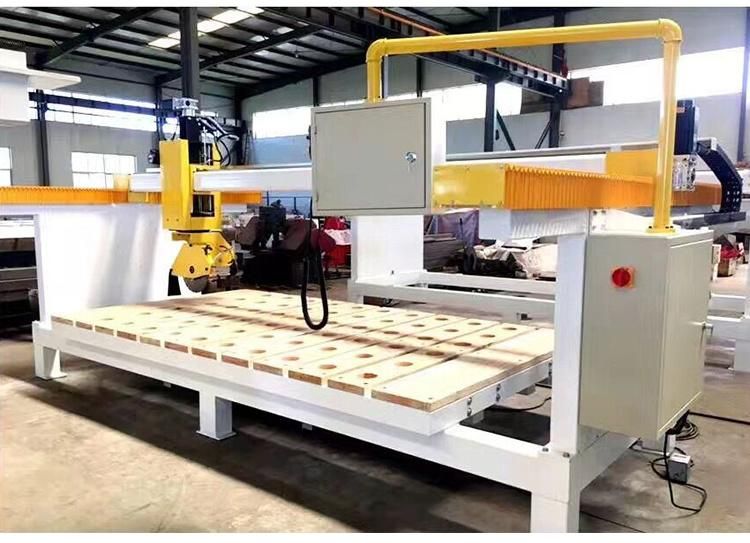

iGS-3020 is our newly designed CNC bridge saw with compact size.
1. It is with automatic tilting machine head and hydraulic tilting work table.
2. By using advanced computer control system to achieve multi programming methods, including manual programming or PC programming ,
3. Achieve fully automatic processing operation and some powerful functions, like easy-operation auto cutting, edge polishing, slotting, kitchen countertop processing, special shape processing and other operations.

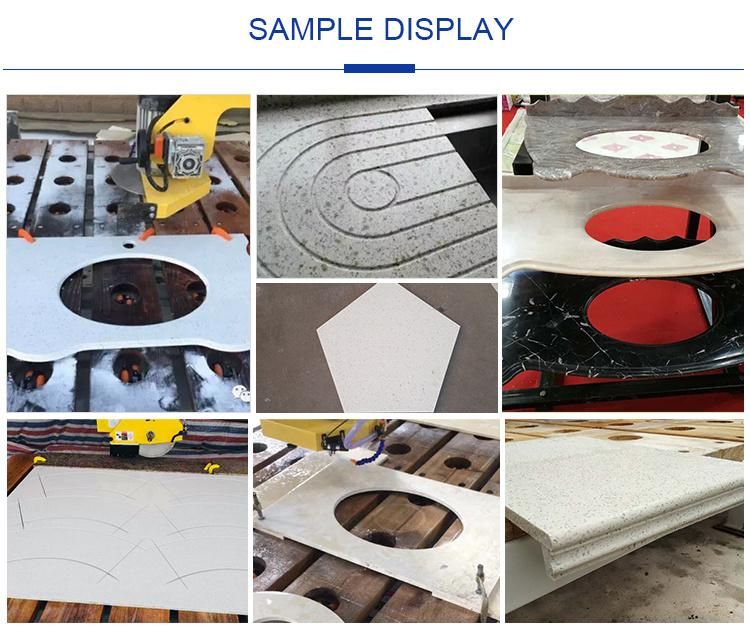

Granite cutting machine Application & Samples:

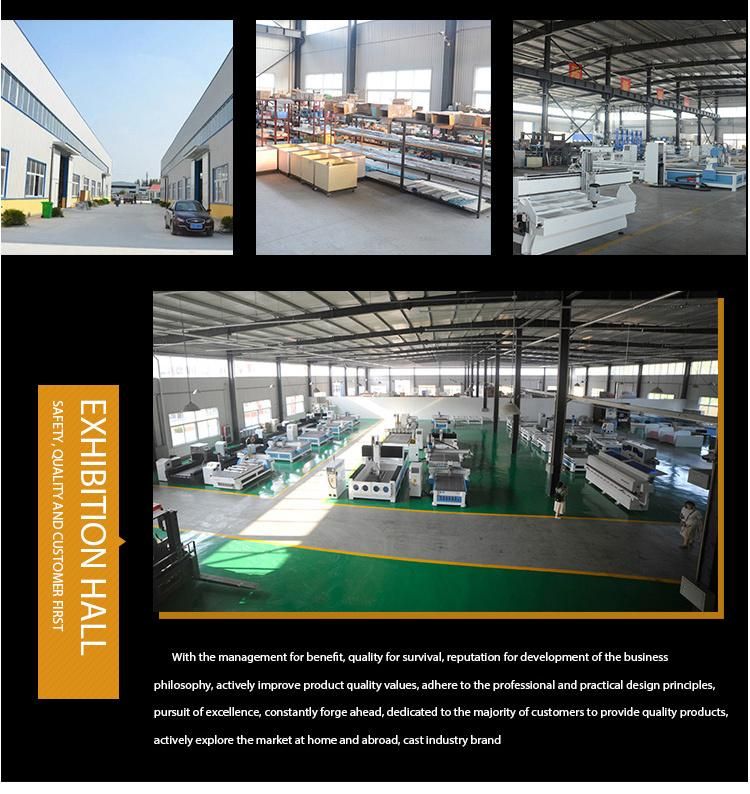

About us:
Jinan iGolden Cnc Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that
specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc. The main configuration all adopt top parts which imported from Italy, Japan,Germany,
etc.
We adopt international advanced producing technologies to improve our products.Our products
are widely used in advertising,woodworking, artworks, model, electric, CAD/CAM Industry Model,
Clothing, Package Printing, Marking, Laser Sealing and so on.
FAQ.
Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.
Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!
Q6. What's your date of delivery?
For standard machine, about 15 working days; For customized machine, about 20 working day.
Q7.MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
