• Model NO.：cone crusher
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：Customized
• Finished Size：6-38mm
• Application Fields：Metallurgy, Construction, Road Paving, Chemistry a
• Motor Power(Kw)：132-630
• Transport Package：Transport Package
• Specification：36-2181t,h
• Trademark：CHAENG
• Origin：Henan
• Production Capacity：36-2181t,H

Basic Info.

Model NO. cone crusher Finished Surface Thread Process Certification CE, ISO Condition New Color Customized Finished Size 6-38mm Application Fields Metallurgy, Construction, Road Paving, Chemistry a Motor Power(Kw) 132-630 Transport Package Transport Package Specification 36-2181t/h Trademark CHAENG Origin Henan Production Capacity 36-2181t/H

Product Description

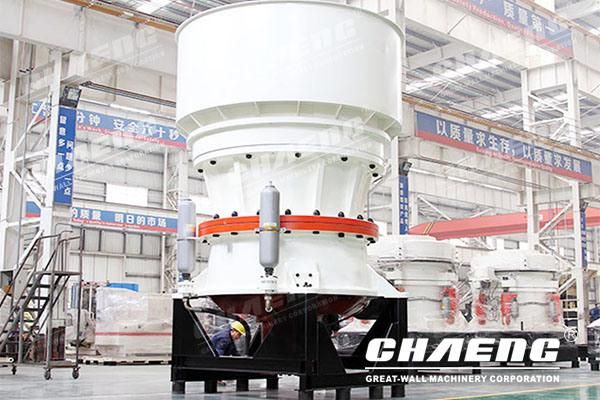

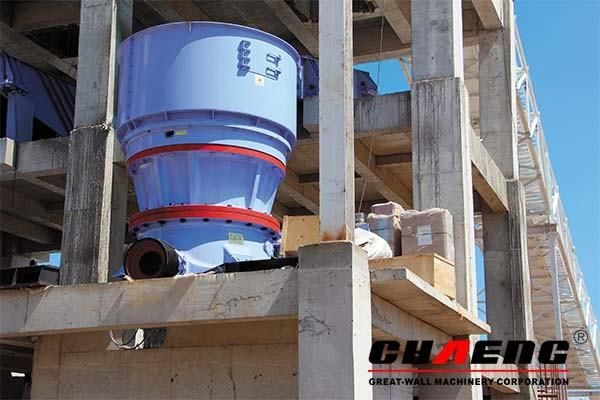

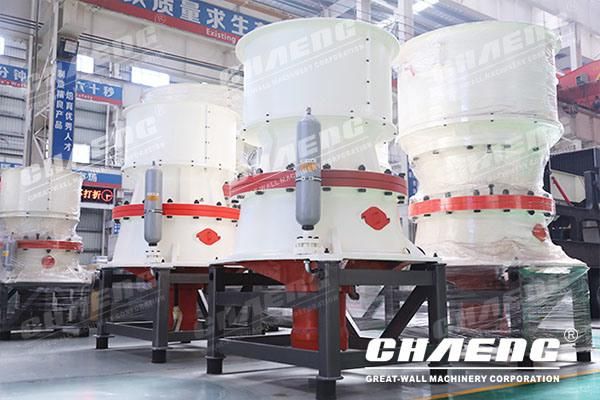

Introduction of single cylinder hydraulic cone crusher

Single cylinder hydraulic cone crusher is a new type of crusher independently developed by CHAENG on the basis of summing up the requirements for sandstone aggregates in cement and concrete for more than 60 years, and absorbing advanced technologies of Germany, the United States and Japan. It can break the materials with medium hard strength and above such as iron ore, river pebbles, granite, etc., and it is the ideal equipment for medium and fine crushing.

Working Principle of single cylinder hydraulic cone crusher

HST series cone crusher is driven by the motor, and the transmission shaft rotates under the action of belt pulley and triangular belt. Next, the transmission shaft drives the eccentric sleeve to make it rotate around the axis. Meanwhile, the eccentric sleeve forces the movable cone to do rotary oscillating motion. This movement makes the movable cone and fixed cone sometimes close to, sometimes far away from the rolling wall. Materials are continuously shocked, squeezed and crushed in the crushing cavity between the crushing wall and the rolling wall. Finally, materials are discharged out of the machine when their fineness reaches the discharging standard.


 Specification of single cylinder hydraulic cone crusher

Model	Discharge size	Installed power	Min. capacity	Max. capacity	Chamber	Auxiliary classification
GCPF500	32mm	400Kw	400t/h	530t/h	C2 thick	HP Hydraulic
GCPF300	16mm	220Kw	170t/h	215t/h	M middle	HP Hydraulic
GCPF500	38mm	400kw	425t/h	580t/h	C1 Super thick	HP Hydraulic
GCPF300	22mm	220Kw	220t/h	260t/h	C2 thick	HP Hydraulic
GCPF440	25-51mm	220Kw	195t/h	486t/h	S1 middle thick	Single Cylinder Hydraulic
GCPF440	29-51mm	220Kw	225t/h	511t/h	S1 middle thick	Single Cylinder Hydraulic
GCPF440	35-54mm	220Kw	267t/h	601t/h	S1 Super thick	Single Cylinder Hydraulic
GCPF660	38mm	315Kw	318t/h	895t/h	S2 middle thick	Single Cylinder Hydraulic
GCPF660	41mm	315Kw	345t/h	1050t/h	S1 middle thick	Single Cylinder Hydraulic

Advantages of single cylinder hydraulic cone crusher

1. The grain shape is neat and the output is high.
2. Strong crushing capacity.
3. Continuous and stable operation, and the automatic protection preventing overload due to iron mixing.
4. The use of direct metal contact method makes the replacement of moving and fixed lining boards quick and easy.
5. High-efficiency rotary feeding device makes the lining boards wear evenly.

 About CHAENG

1.Based on high-end and advanced equipment
With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.

2.Multiple patents, controlling the core technologies
The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of  energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
